Product Overview

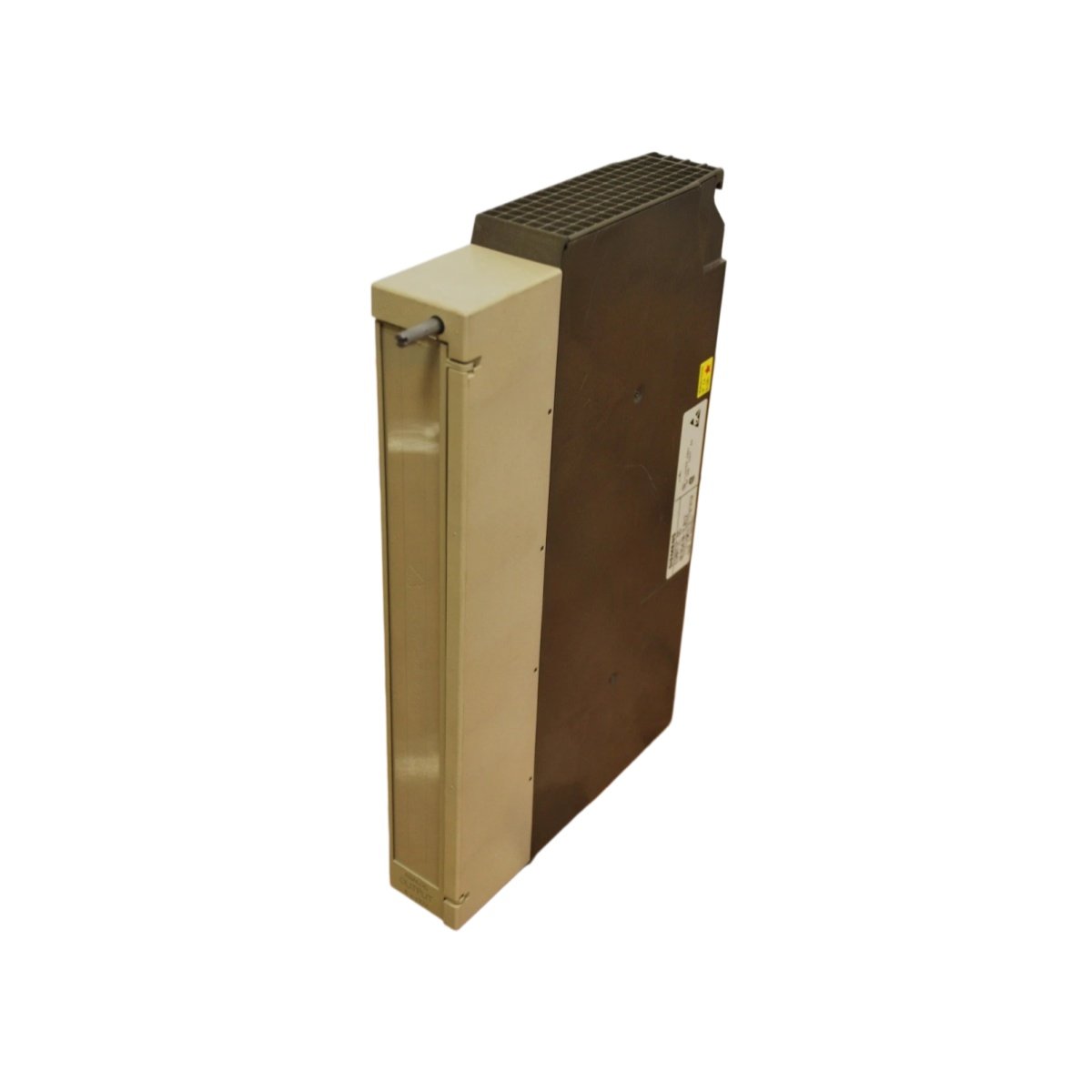

The Siemens 6ES5470-7LB12 is an analog output module for the SIMATIC S5 programmable controller family. This unit converts digital values from the CPU into proportional current or voltage signals. It occupies a single slot in the S5-100U rack system. The module drives actuators, valves, and other field devices with precise analog commands. Users can connect up to four output channels to this compact card. It provides reliable signal generation for closed-loop control applications. The module includes short-circuit protection for enhanced output stage safety. Its front terminals enable straightforward wiring and troubleshooting. The Siemens 6ES5470-7LB12 delivers stable outputs across varying load conditions. It integrates smoothly with S5 CPUs through the backplane bus. This unit supports both current and voltage output configurations. Furthermore, it offers excellent linearity for accurate signal reproduction. The module’s robust design ensures long-term reliability in industrial settings. Consequently, engineers can trust this module for critical process control tasks.

Technical Specifications

The following table details all key technical parameters for the Siemens 6ES5470-7LB12:

Key Functional Features

This analog output module provides four independent channels for field device control. It generates 0–20 mA, 4–20 mA, 0–10 V, and ±10 V signal types. The unit offers 12-bit resolution for precise analog value generation. Moreover, it converts each channel in approximately 1.5 milliseconds for fast response. The module achieves an output accuracy of ±0.5 percent of full scale. Its temperature drift remains within ±0.02 percent per degree Celsius for consistent performance. The voltage outputs drive loads greater than 2 kilohms without signal degradation. Similarly, the current outputs can drive loads up to 500 ohms. The short-circuit protection safeguards the output stages from accidental wiring faults. This feature automatically limits current during overload conditions. The module provides 500-volt isolation between output circuits and the backplane. This isolation prevents ground loops from affecting control accuracy. The unit’s 25-millimeter width allows space-efficient rack configurations. It operates reliably between 0 and 55 degrees Celsius. The Siemens 6ES5470-7LB12 features front-panel LEDs for channel status monitoring. Its screw terminal connections ensure secure and dependable wiring.  Additionally, it includes power-on reset to safe output states during startup.

Installation and Operation

You can mount this module in any slot of an S5-100U rack system. First, align the module connector with the backplane socket and push gently. Then, secure the unit with the two retaining screws. Connect field wiring to the front terminals following the supplied wiring diagram. The module automatically configures to the CPU’s analog output addressing scheme. Set output ranges through the programming software before system startup. Verify all connections are secure and correctly polarized. The module will begin generating outputs immediately after power application. Monitor the status LEDs for normal operation indication. Keep ambient temperature within 0 to 55 degrees Celsius for optimal accuracy. This module works with all S5-100U CPU variants that support analog I/O. It integrates seamlessly with existing process control applications. The unit requires no field calibration under standard conditions. Consequently, the Siemens 6ES5470-7LB12 provides a straightforward analog output solution for your automation system.
