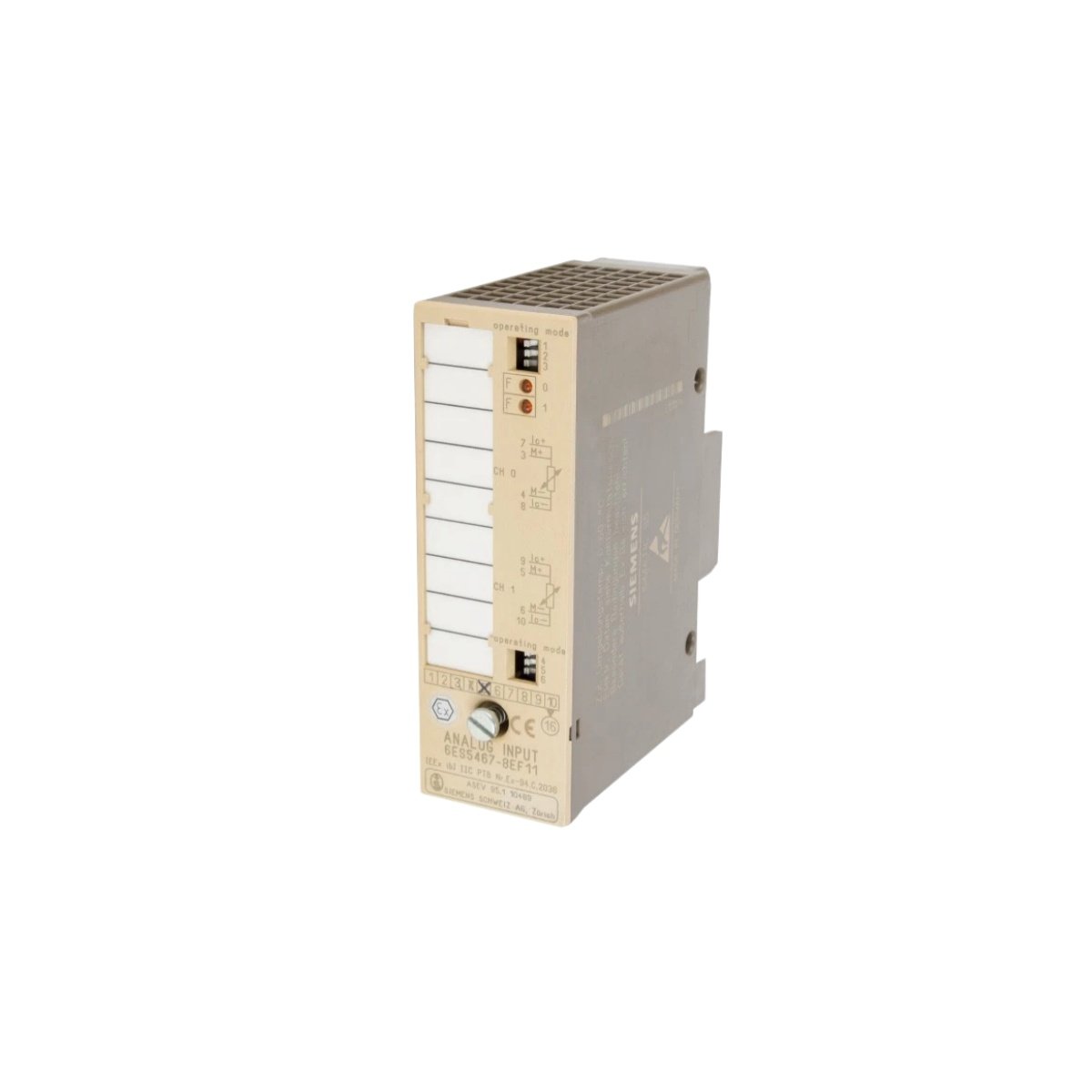

The 6ES5467-8EF11 is an analog input module from the Siemens SIMATIC S5 family, built to capture precise process signals in industrial environments. This module converts field measurements into reliable digital data for the PLC. Consequently, engineers continue to specify it for legacy S5 installations.
Technical Specifications at a Glance
The table below summarizes the essential technical parameters of the 6ES5467-8EF11. Each value reflects the manufacturer’s official data sheet.
| Parameter | Specification |
|---|---|
| Product type | Analog input module |
| Compatibility | SIMATIC S5 PLC systems |
| Input channels | 8 analog inputs |
| Input signal range | ±10 V, 0–20 mA, 4–20 mA |
| Resolution | 12-bit |
| Dimensions (W x H x D) | Approx. 185 x 130 x 30 mm |
| Weight | Approx. 0.30 kg |
| Interface | Backplane bus connector |
| Power supply | 5 V DC via backplane |
| Energy storage | Not applicable |
| Part count | Single PCB assembly |
Input Channels and Signal Accuracy
This module offers 8 analog input channels for capturing process variables. Moreover, it supports voltage and current signals across several standard ranges. Therefore, it handles temperature, pressure, and flow measurements with 12-bit precision.
Physical Design and Installation
The module measures roughly 185 x 130 x 30 mm and weighs about 0.30 kg. Furthermore, it plugs into the S5 backplane through a standard bus connector. As a result, technicians complete installation quickly without special tools.
Power Supply and Integration
The 6ES5467-8EF11 draws 5 V DC directly from the PLC backplane. Additionally, it exchanges data with the CPU over the backplane bus. Consequently, no external wiring or separate supply is necessary.
Details
| Weight | 0.72 kg |
|---|---|
| Dimensions | 325 × 168 × 8 mm |
