Product Overview

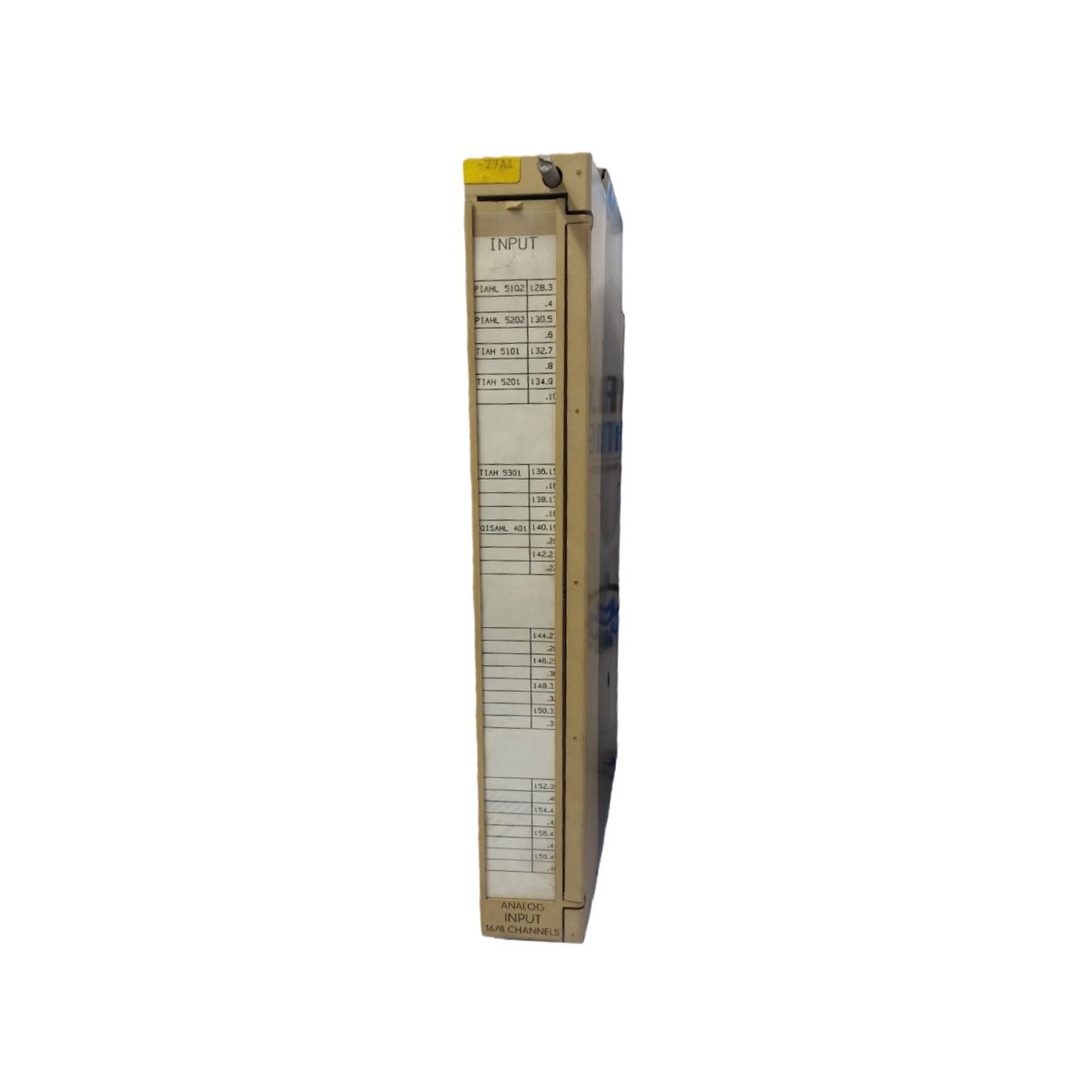

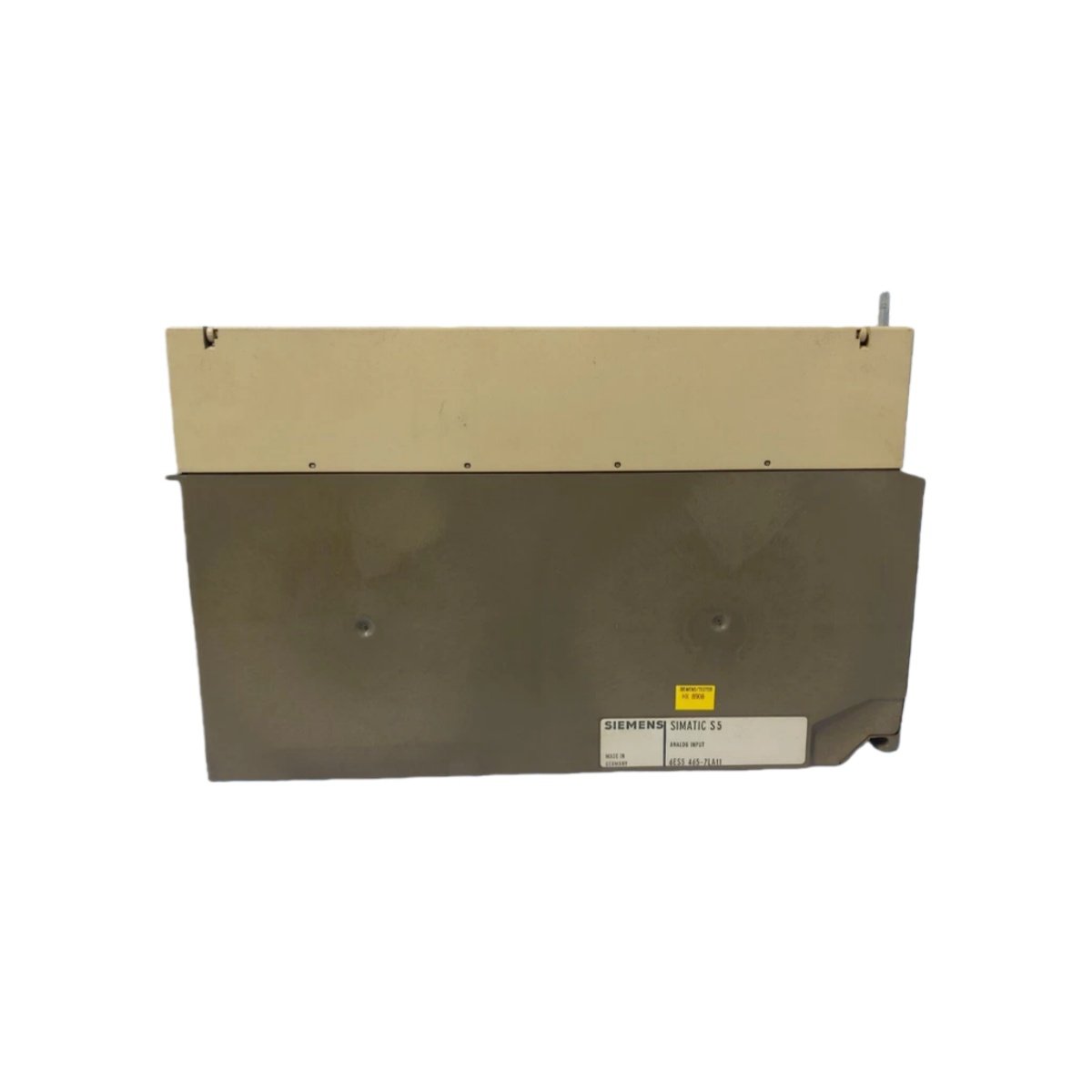

The Siemens 6ES5465-7LA11 is an analog input module for the SIMATIC S5 programmable controller family. This unit converts field sensor signals into digital values for CPU processing. It occupies a single slot in the S5-100U rack system. The module accepts standard current and voltage signals from transmitters and sensors. Users can connect up to eight analog channels to this compact unit. It provides high-resolution measurement for precise process control applications. The module includes built-in filtering to reduce electrical noise interference. Its front terminals simplify wiring and maintenance procedures. The Siemens 6ES5465-7LA11 delivers stable readings across varying temperature conditions. It integrates seamlessly with S5 CPUs through the backplane bus. This module supports both differential and single-ended input configurations. Additionally, it offers excellent linearity for accurate signal representation. The unit’s robust design ensures reliable operation in industrial environments. Consequently, engineers can depend on this module for critical measurement tasks.

Technical Specifications

The following table details all key technical parameters for the Siemens 6ES5465-7LA11:

Key Functional Features

This analog input module provides eight channels for connecting various field instruments. It accepts 0–20 mA, 4–20 mA, 0–10 V, and ±10 V signal types. The unit offers 12-bit resolution for precise measurement of process variables. Additionally, it converts each channel with a typical time of 25 milliseconds. The module achieves a measurement accuracy of ±0.5 percent of full scale. Its temperature drift remains within ±0.01 percent per degree Celsius for stable readings. The high input impedance of 10 megohms minimizes loading on voltage sources. For current inputs, the module uses a 250-ohm burden resistor. It provides common mode rejection exceeding 80 decibels at line frequencies. This feature effectively eliminates noise from AC power sources. The unit includes optical isolation of 500 volts between channels and the backplane. This isolation protects the CPU from potential ground loops. The module’s 25-millimeter width allows dense installation in control cabinets. Furthermore, it operates reliably between 0 and 55 degrees Celsius. The Siemens 6ES5465-7LA11 features front-panel LEDs for channel status indication. Its screw terminal connections ensure secure and dependable wiring. This module supports both differential and single-ended measurement configurations.

Installation and Operation

You can mount this module in any slot of an S5-100U rack system. First, align the module with the backplane connector and push it firmly. Then, secure the unit with the two retaining screws provided. Connect field wiring to the front terminals according to the terminal assignment diagram. The module automatically configures to the CPU’s analog addressing scheme. Configure channel types through the programming software before system startup. Verify that all connections are tight and correctly polarized. The module will begin sampling inputs immediately after power application. Monitor the status LEDs for normal operation indication. Keep ambient temperature within 0 to 55 degrees Celsius for optimal accuracy. This module works with all S5-100U CPU variants that support analog I/O. It integrates seamlessly with existing process control applications. The unit requires no calibration under normal operating conditions. Consequently, the Siemens 6ES5465-7LA11 provides a straightforward analog input solution for your automation system.
