Core High-Density Input for S5-115U Systems

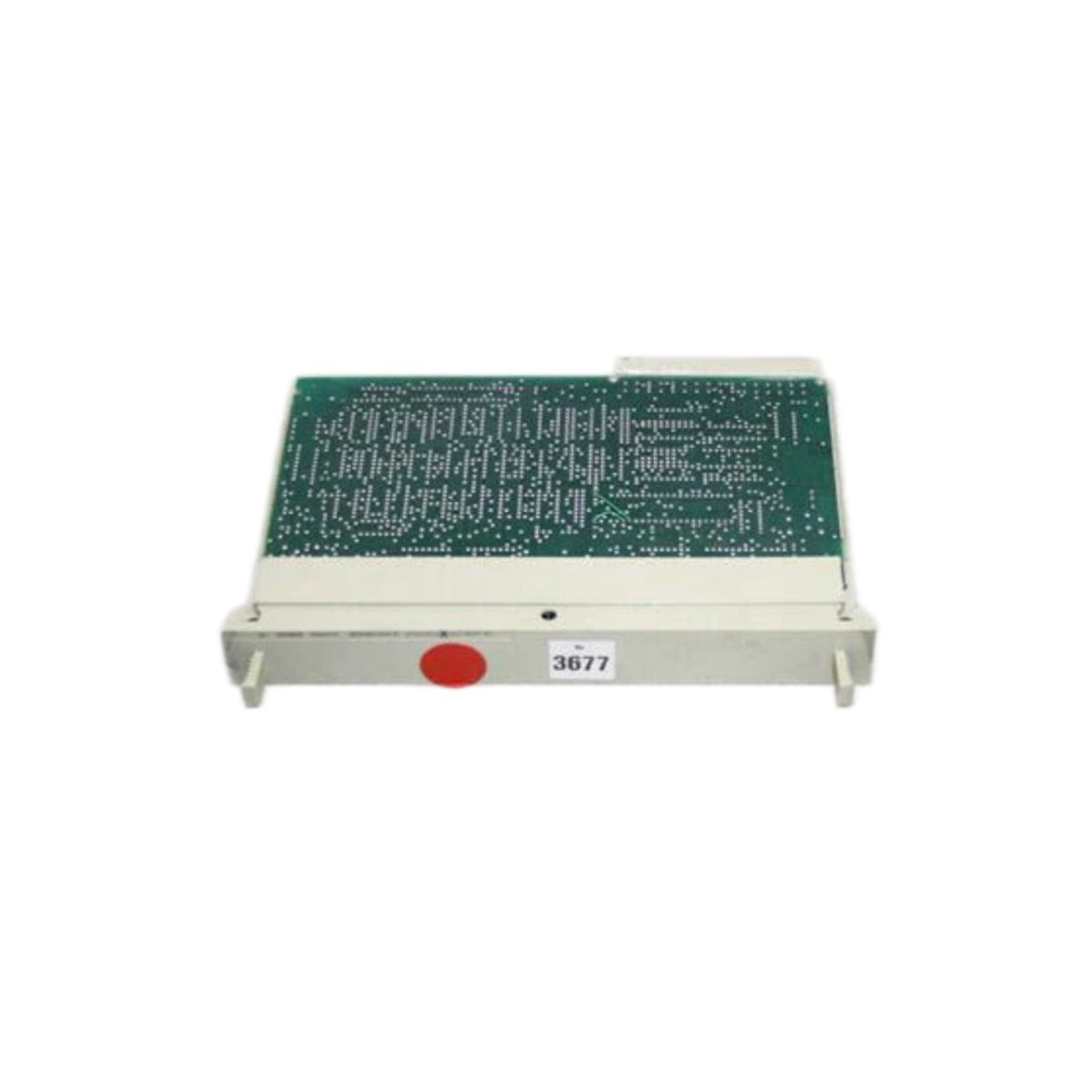

The Siemens 6ES5465-5AA12 is a 16-channel analog input module for the SIMATIC S5-115U programmable logic controller . This module converts analog signals from field sensors into digital values for processing by the S5 CPU . It supports input ranges of 0 to 20 mA and 4 to 20 mA, making it a versatile solution for process monitoring and control applications. Consequently, it is an essential component for connecting sensors like pressure transmitters and level transducers to legacy S5 control systems.
Designed for Industrial Environments
This module features a robust design and includes built-in EMI filtering and high input impedance to minimize measurement errors in electrically noisy environments . Each of the 16 input channels can be individually configured for current or voltage measurements, offering excellent flexibility . The 6ES5465-5AA12 provides a resolution of 12 bits plus sign, ensuring accurate measurement across the module’s 0°C to 60°C operating temperature range . Furthermore, its galvanic isolation between the input and the S5 bus protects the system from high common-mode voltages.
Technical Specifications and System Compatibility
The following table details its key technical parameters .
| Parameter | Specification |
|---|---|
| Manufacturer / Series | Siemens / SIMATIC S5-115U |
| Product Model | 6ES5465-5AA12 |
| Module Type | Analog Input Module |
| Number of Inputs | 16 Differential |
| Input Ranges | 0 to 20 mA, 4 to 20 mA |
| Current Input Resistance | 50 Ω |
| Common Mode Voltage | 30 V (max) |
| Common Mode Rejection | 40 dB (DC), >60 dB (at 50/60 Hz) |
| Series Mode Rejection | >45 dB (at 50/60 Hz) |
| Resolution | 12-bit + sign |
| Conversion Time | 10 ms |
| Isolation | Galvanic isolation between input and S5 bus |
| Power Supply | 5 V DC (250 mA) and 24 V DC (75 mA) |
| Operating Temperature | 0°C to +60°C |
| Product Status | Discontinued |
Application in Legacy S5 Systems
Plant engineers use this module to maintain analog signal monitoring and control on existing S5-115U installations. It is a vital component for industries where these controllers remain in daily operation . Therefore, sourcing tested units is essential for lifecycle management of classic Siemens automation platforms.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 215 × 135 × 10 mm |
