Core 16-Channel Switching for S5 Systems

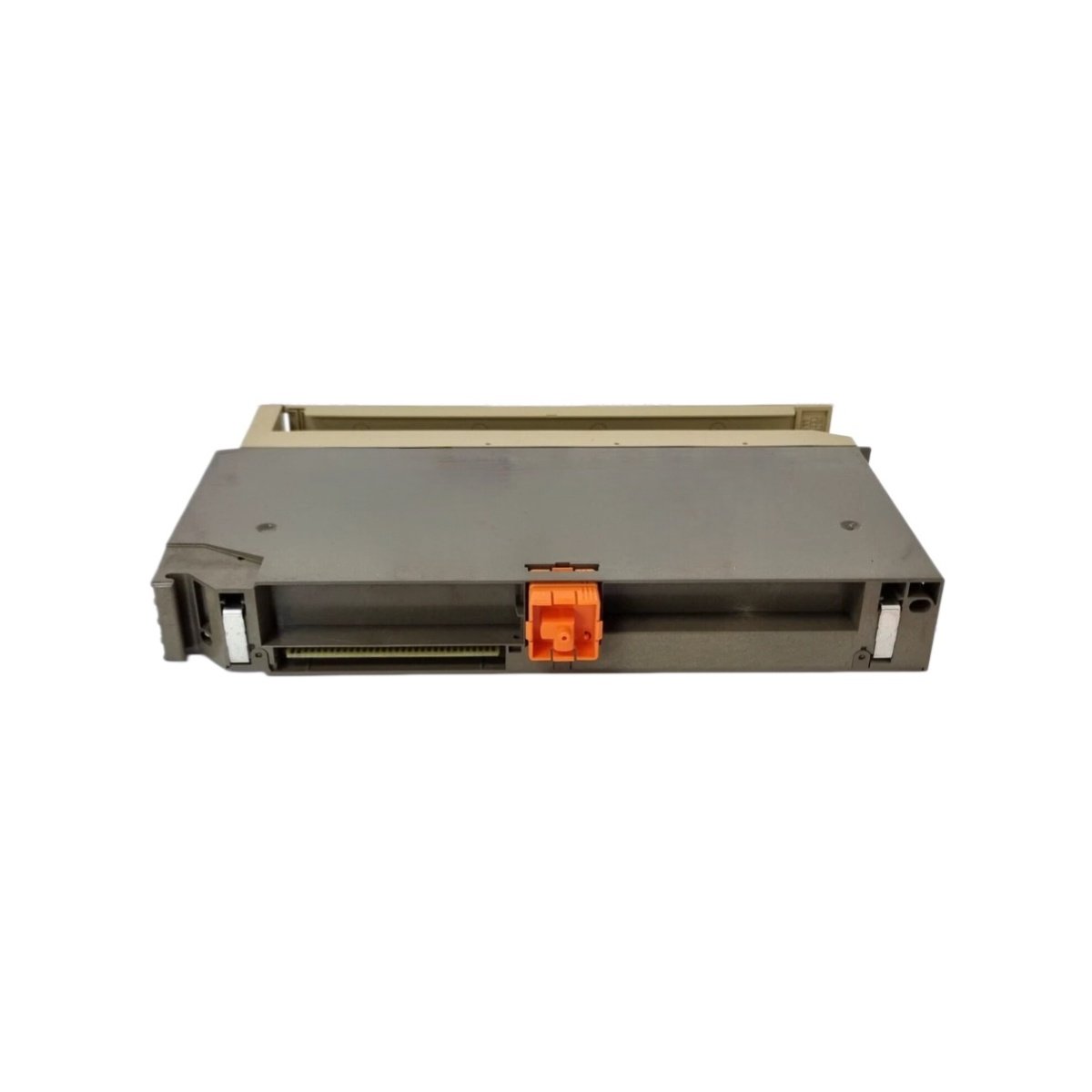

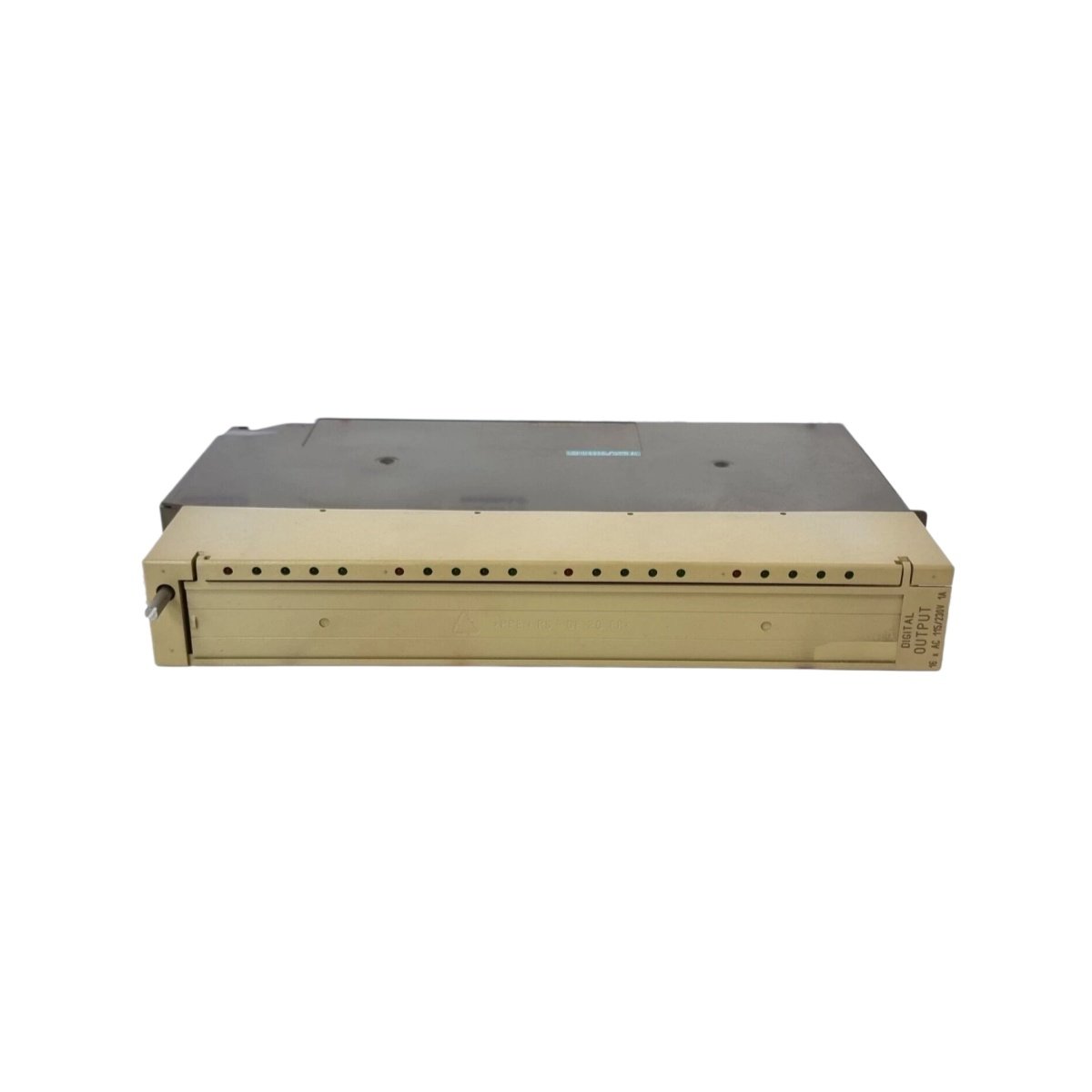

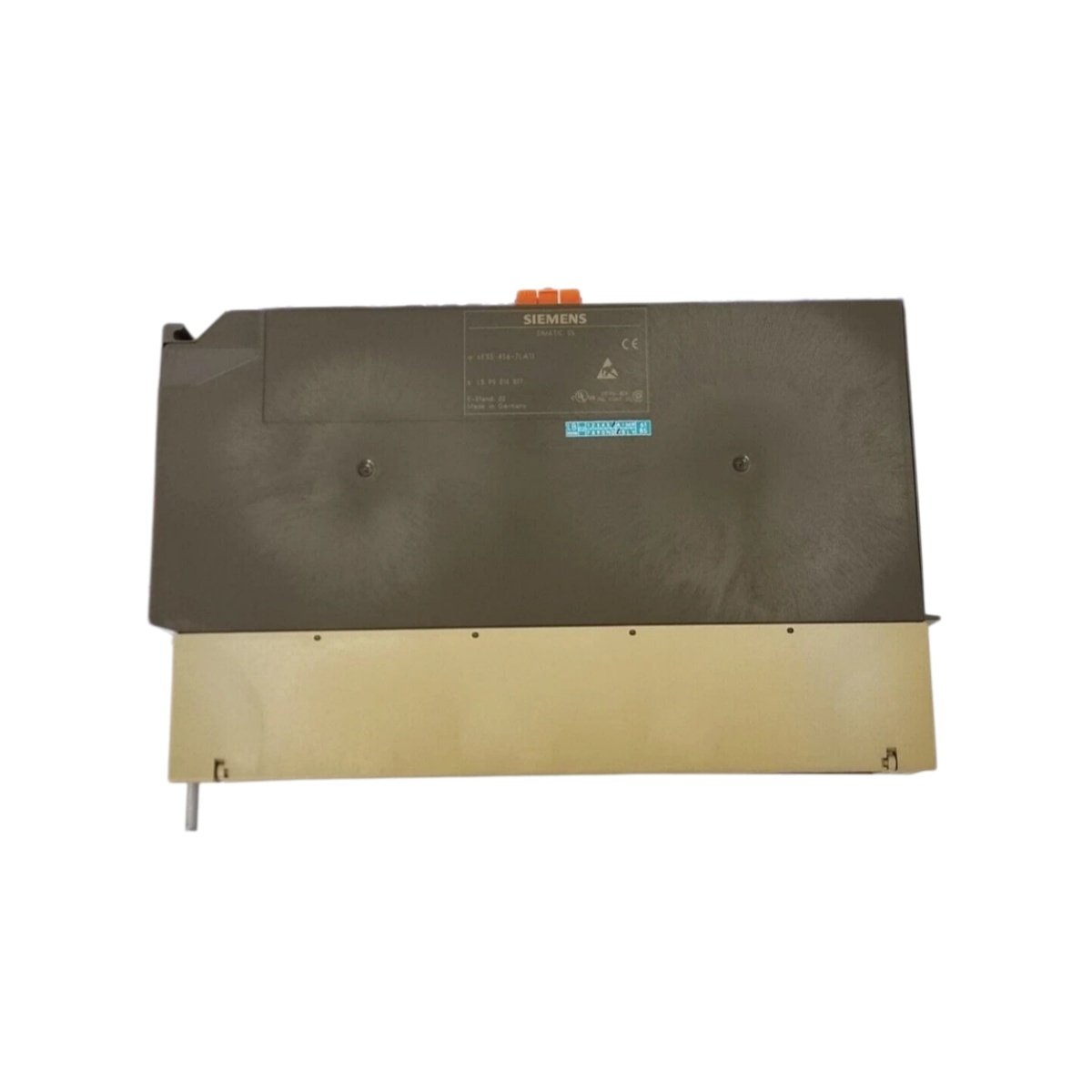

The Siemens 6ES5456-7LA11 is a digital output module for the SIMATIC S5-115U programmable logic controller family . This module provides 16 output channels for controlling actuators, relays, and indicator lamps in industrial automation systems. It switches loads with a rated output voltage of 24 V DC and a maximum current of 0.5 A per channel . Consequently, it offers a reliable interface between the controller and field devices in legacy S5-115U installations.

Robust Design and Electrical Specifications

This module features a robust design with reverse voltage protection to safeguard against wiring errors . Each output channel incorporates a current-limiting function to protect against overloads, and each includes an LED indicator for local status diagnostics. The 6ES5456-7LA11 provides galvanic isolation between the control circuits and load circuits, ensuring protection from electrical noise and ground loops . Furthermore, its wide 0°C to 60°C operating temperature range enables reliable deployment in demanding industrial environments.

Technical Specifications

The following table details its key technical parameters .

Application in Legacy System Support

Plant engineers use this module to maintain and support existing S5-115U automation systems. It is a critical component in industries like manufacturing, automotive, and material handling where these legacy controllers remain in daily use. The Siemens 6ES5456-7LA11 enables continued operation of proven legacy equipment. Therefore, sourcing tested units from specialized suppliers is essential for lifecycle management of classic Siemens automation platforms.
