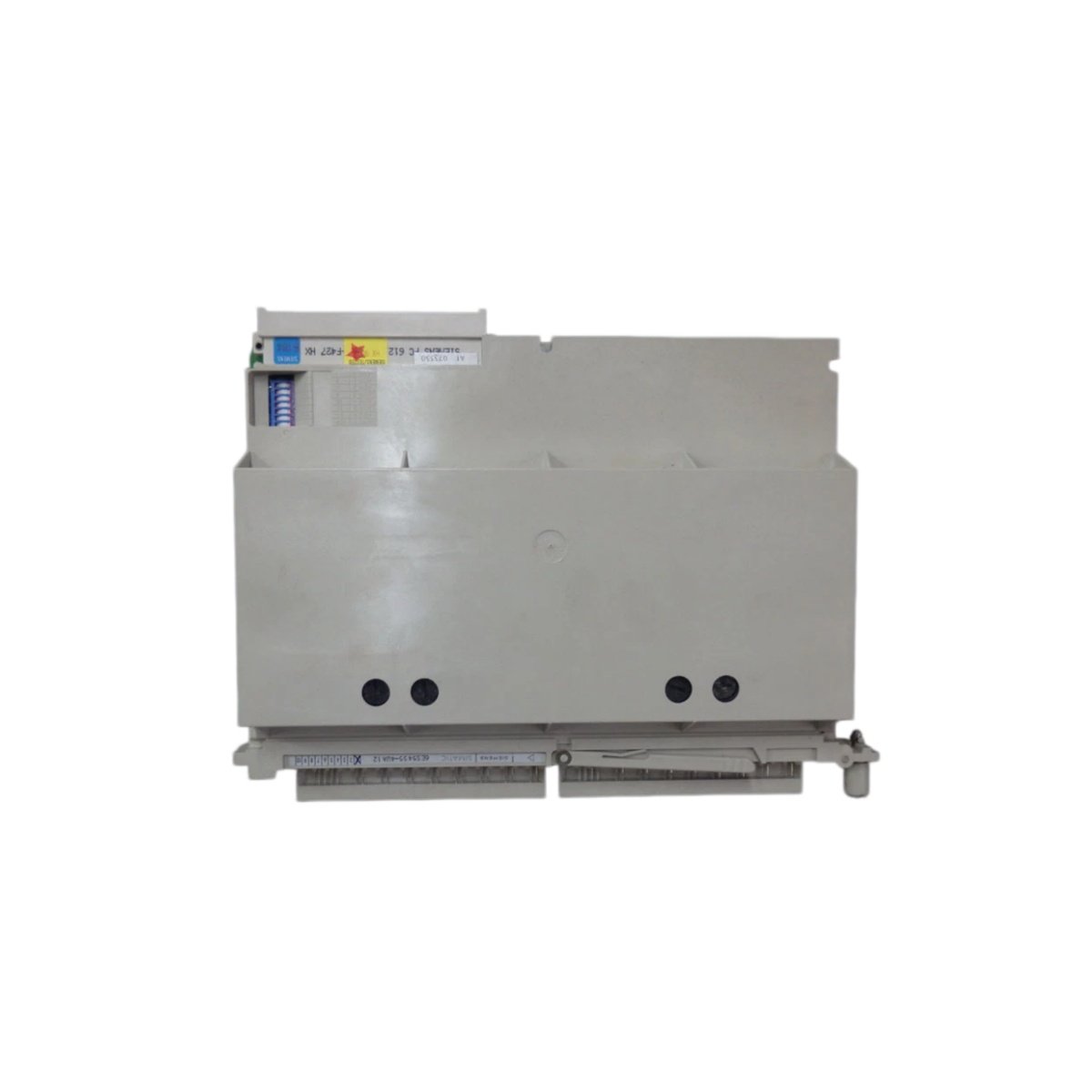

The 6ES5455-4UA12 operates as a digital output module inside SIMATIC S5 automation racks. This card drives relays, valves, and indicator lamps across industrial production lines. Consequently, system integrators gain a dependable output stage for demanding control cabinets.

Technical Specifications Overview

The 6ES5455-4UA12 pairs a narrow slot width with sturdy industrial construction. Moreover, its parameter set helps engineers plan channel counts and wiring layout accurately.

Interface and Bus Communication

The 6ES5455-4UA12 communicates through the S5 parallel backplane bus. Therefore, it receives control commands quickly from the central processor. The 16 output channels each drive industrial loads with consistent switching behavior. In addition, the card draws 5 V DC directly from the rack power rail.

Physical Characteristics and Installation

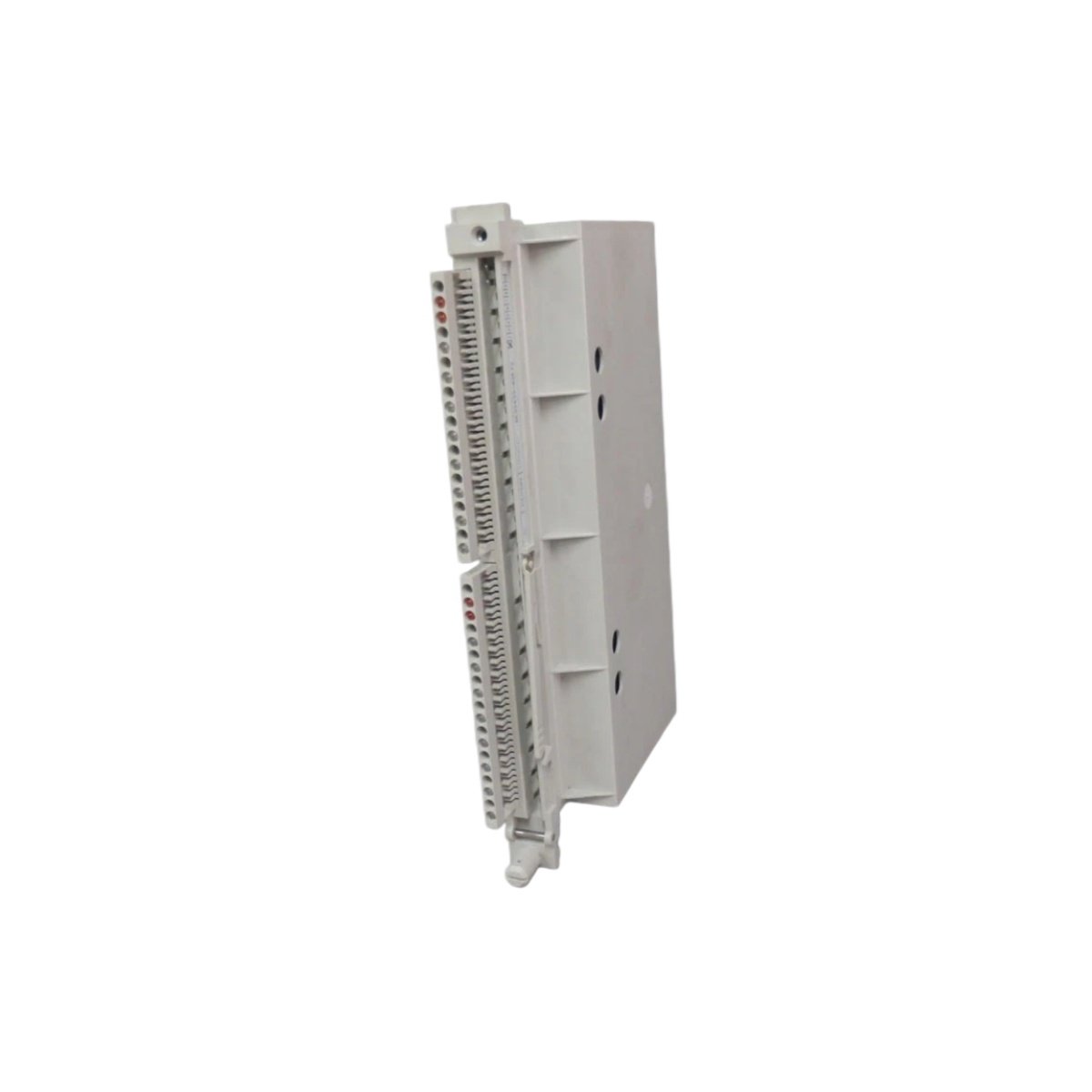

This module occupies one standard slot in an S5 rack. Furthermore, its 20 mm width preserves space for neighboring analog and input cards. The 6ES5455-4UA12 weighs roughly 0.4 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the board, then secure it with the front retaining screw.

Operational Role and Maintenance

Engineers apply the 6ES5455-4UA12 for actuator control and sequential machine logic. Meanwhile, front-panel LEDs show live channel status during troubleshooting. The module holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the rack backplane for power.
