Core Technical Specifications

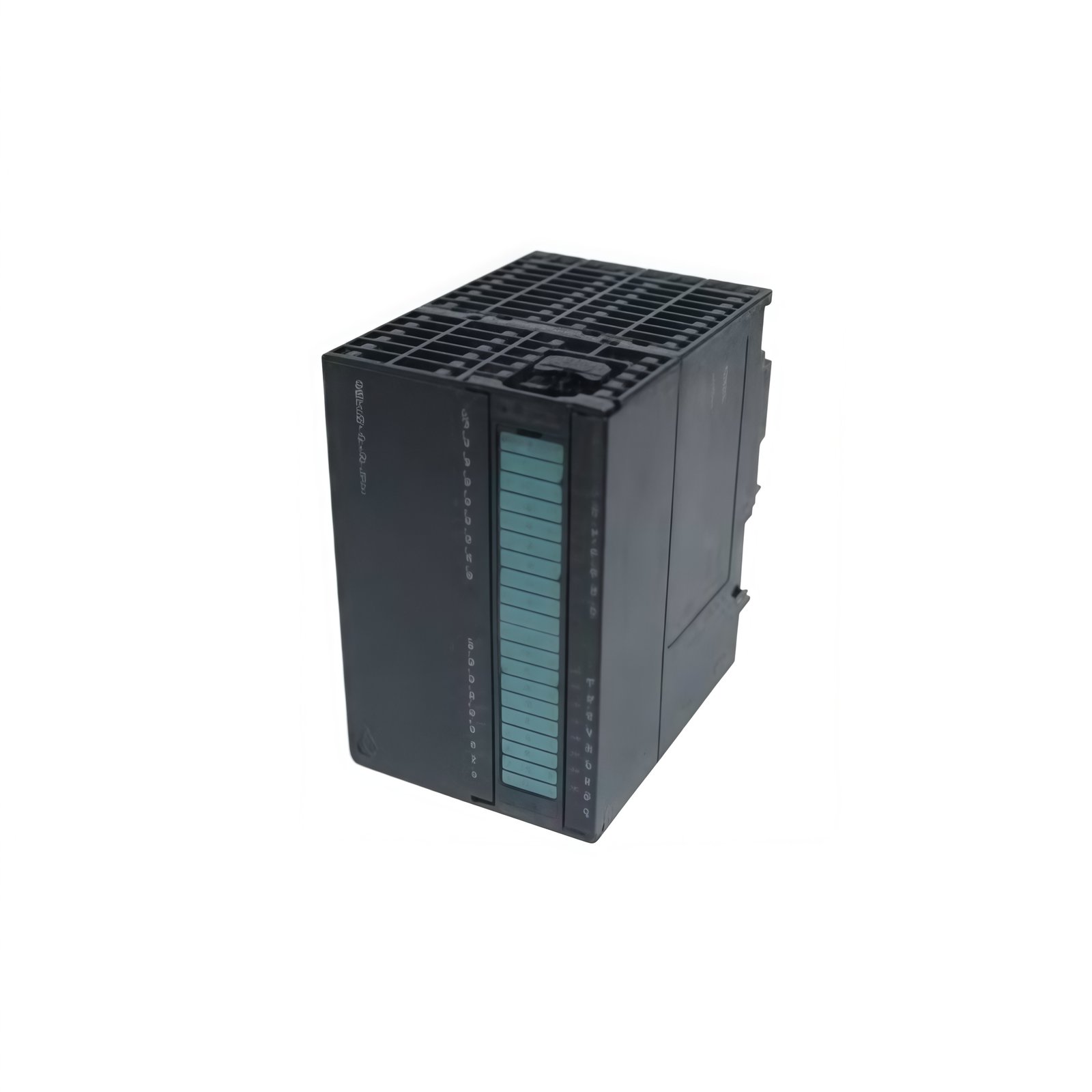

This digital output module provides robust switching for actuators and indicators in your control system. We engineered the 6ES5455-3AE11 to deliver reliable on/off control with comprehensive protection features.

High-Density Output Channels

The 6ES5455-3AE11 offers 16 independent digital outputs in a compact housing. Each channel sources up to 0.5 A of continuous current for driving solenoids and lamps. The total load across all outputs must remain under 8 A simultaneously. This high-density design allows you to control numerous field devices from a single module, reducing cabinet space requirements.

Fast Switching and Reliable Performance

This output module achieves a maximum switching frequency of 100 Hz with resistive loads. This speed supports rapid cycling applications such as pulsed heating control or high-speed counting. For inductive loads, the module handles up to 2.5 W per channel. The built-in freewheeling diode suppresses voltage spikes, protecting the output transistors from damage.

Built-In Protection Circuitry

The 6ES5455-3AE11 integrates short-circuit proof outputs that automatically limit current during fault conditions. Thermal protection shuts down an overheated channel to prevent permanent damage. After the fault clears, the channel restores normal operation automatically. Furthermore, the module provides diagnostic feedback through the system bus, allowing your PLC program to respond to channel-specific issues promptly.

Electrical Isolation and Safety

This digital output module provides 500 V AC isolation between the field outputs and the backplane logic. This isolation safeguards the processor from ground loops, surge voltages, and accidental shorts. Additionally, the module draws minimal power from the backplane, placing little strain on the system supply. This efficient design ensures stable operation even in densely populated racks.

Installation and Physical Characteristics

The 6ES5455-3AE11 mounts securely on standard DIN rails or inside 19-inch racks. Its compact width of just 25 mm maximizes usable panel space for other components. Weighing only 0.50 kg, the module adds negligible mechanical stress to mounting structures. You can install or exchange this module quickly during scheduled maintenance, minimizing production interruptions.
