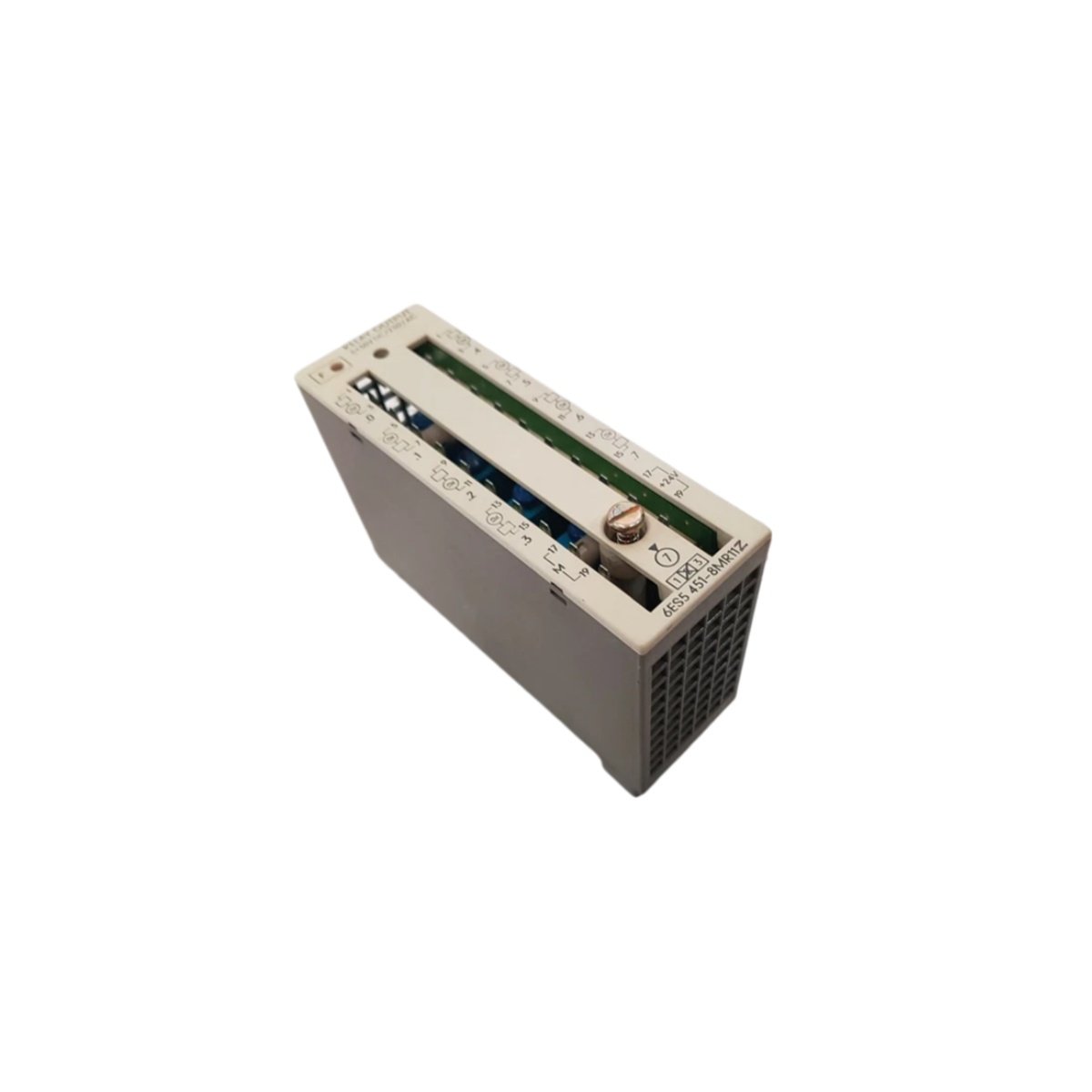

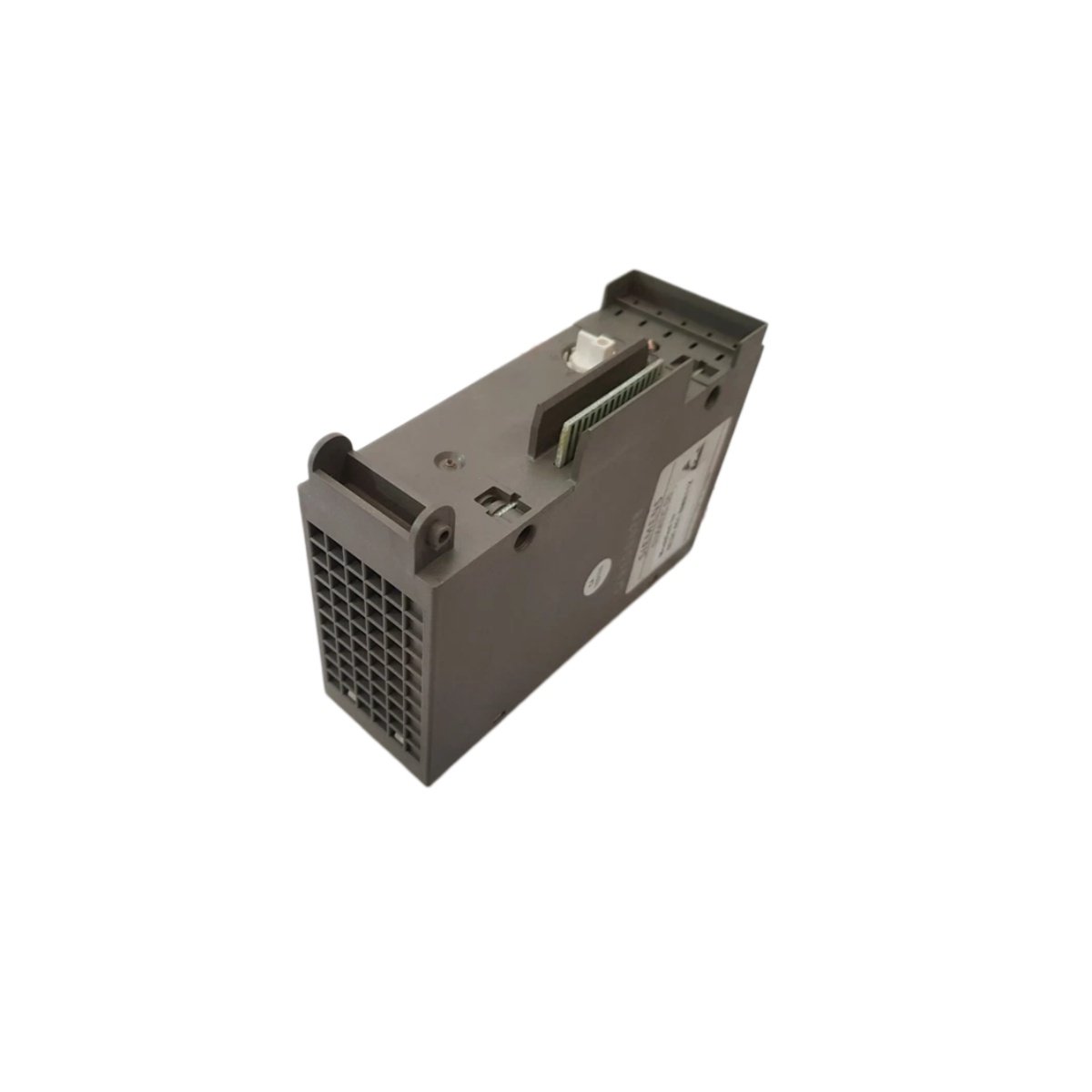

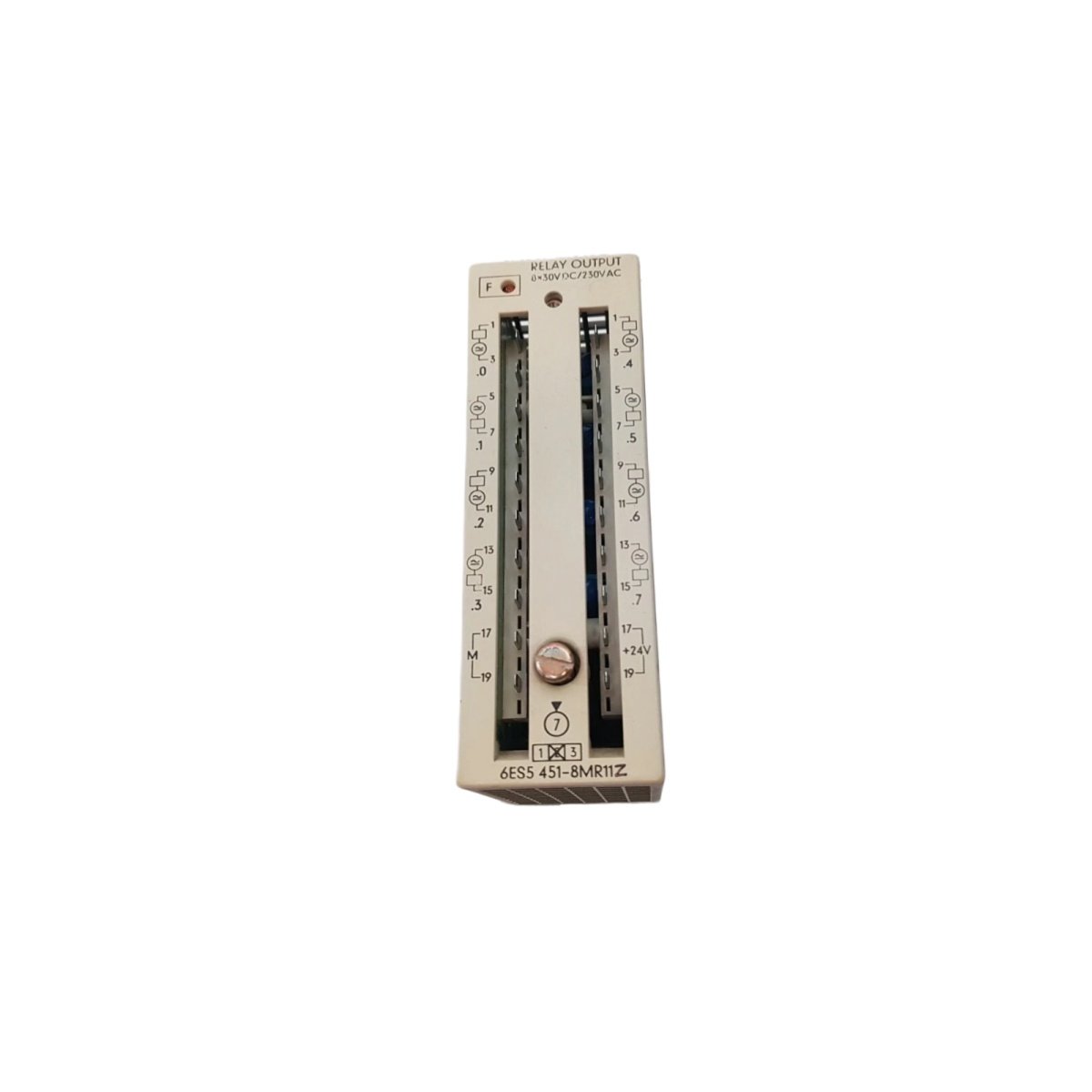

The Siemens 6ES5451-8MR11 digital output module drives discrete field devices for industrial automation systems. Engineers select this unit for dependable switching across manufacturing environments. Moreover, its compact housing supports straightforward integration into existing SIMATIC S5 racks.
Interface and Connectivity
The module links to the backplane connector for high-speed data exchange. Additionally, it provides eight relay output points for solenoids, valves, and indicators. These contacts handle both AC and DC loads, therefore covering diverse switching requirements. Field wiring uses screw-terminal blocks that reduce installation time considerably.
Physical Dimensions and Weight
The unit measures 25 mm in width, 125 mm in height, and 110 mm in depth. Furthermore, it weighs approximately 180 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.
Component Count and Energy Storage
The 6ES5451-8MR11 integrates eight relay driver circuits for reliable load switching. It also contains one filtering capacitor rated at 220 µF for stable operation. Therefore, this energy storage element suppresses ripple during rapid load changes. The board carries roughly 150 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | 6ES5451-8MR11 |
| Category | Digital Output Module |
| Output Points | 8 |
| Output Type | Relay Contact |
| Dimensions (W×H×D) | 25 × 125 × 110 mm |
| Weight | ~180 g |
| Connector Type | Backplane / Screw Terminal |
| Energy Storage | 220 µF Capacitor |
| Operating Temperature | 0°C to 60°C |
Why This Module Suits Industrial Applications
System integrators value the 6ES5451-8MR11 for its stable switching and simple wiring. Meanwhile, the relay contacts isolate sensitive circuits from load transients. As a result, system reliability improves while maintenance costs decrease.
