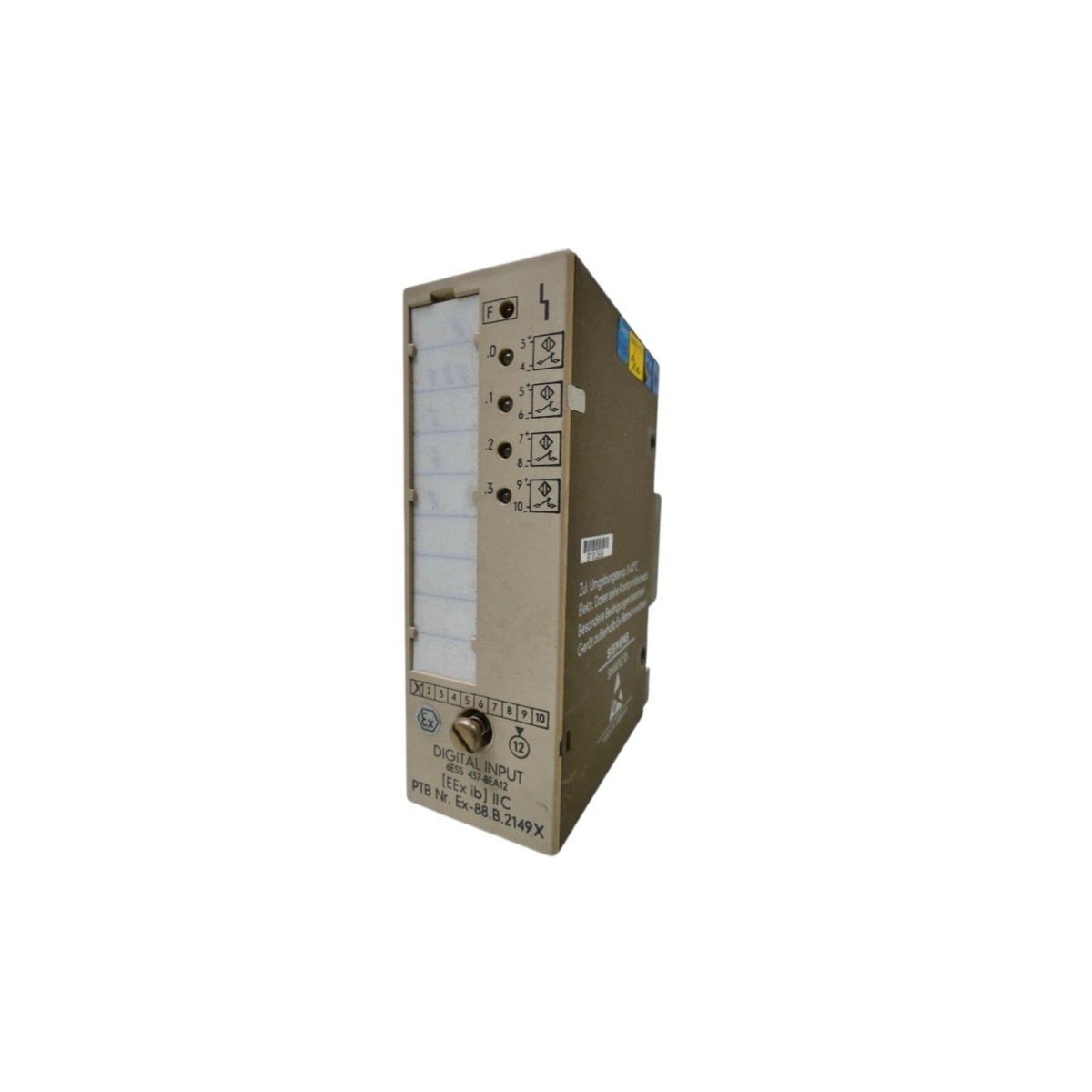

The 6ES5437-8EA12 works as a digital input module within SIMATIC S5 automation racks. This card reads signals from sensors, switches, and pushbuttons on industrial machines. Consequently, control engineers gain a dependable front-end for binary process data.

Technical Specifications Overview

The 6ES5437-8EA12 combines a narrow slot width with rugged industrial construction. Moreover, its parameter set helps engineers plan channel counts and field wiring accurately.

Interface and Bus Communication

The 6ES5437-8EA12 communicates through the S5 parallel backplane bus. Therefore, it forwards field status quickly to the central processor. The 16 input channels each accept standard industrial signal levels with stable threshold behavior. In addition, the card draws 5 V DC directly from the rack power rail.

Physical Characteristics and Installation

This module occupies one standard slot in an S5 rack. Furthermore, its 20 mm width preserves space for neighboring output and analog cards. The 6ES5437-8EA12 weighs roughly 0.4 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the board, then secure it with the front retaining screw.

Operational Role and Maintenance

Engineers apply the 6ES5437-8EA12 for limit switch sensing and interlock monitoring tasks. Meanwhile, front-panel LEDs show live channel status during troubleshooting. The module holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the rack backplane for power.
