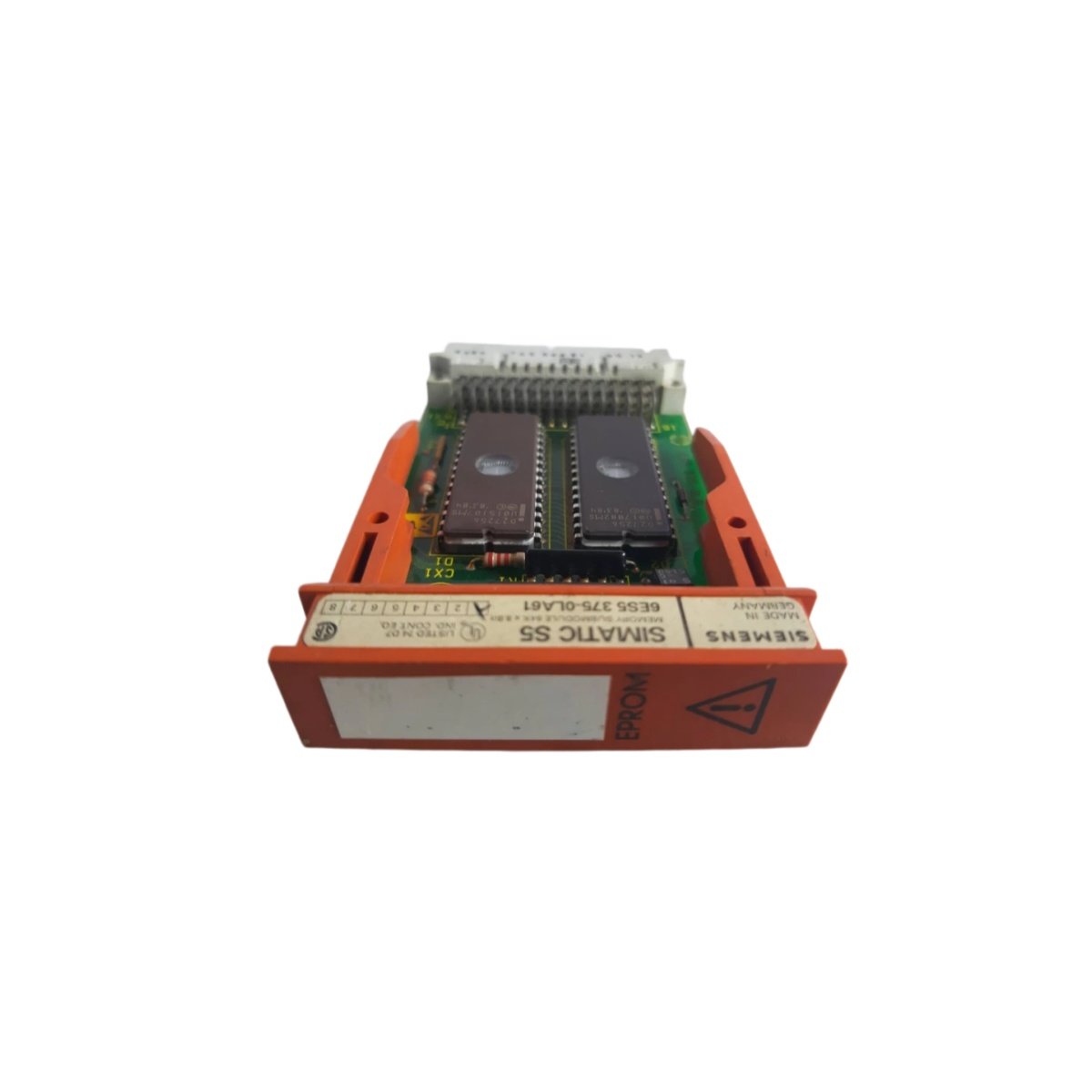

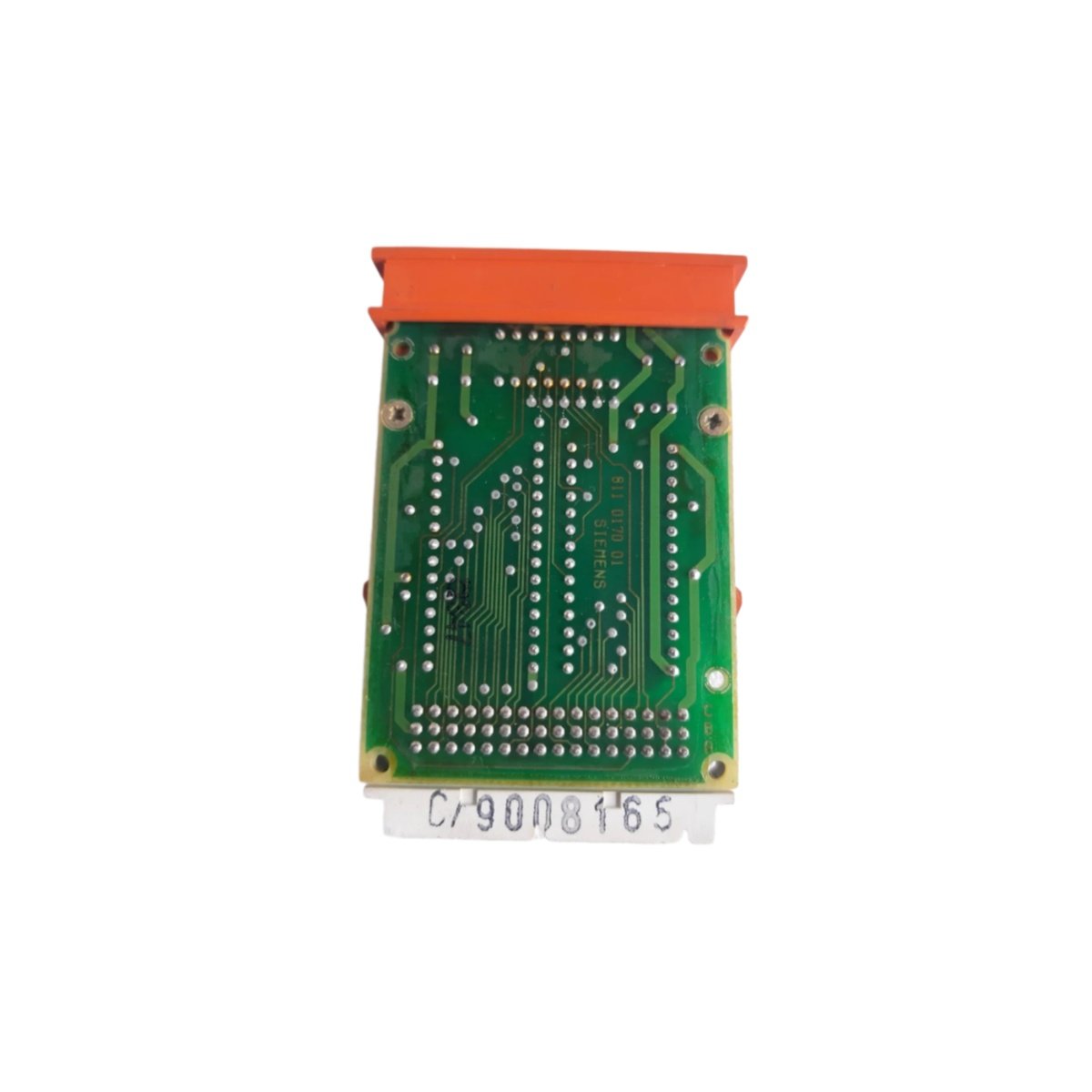

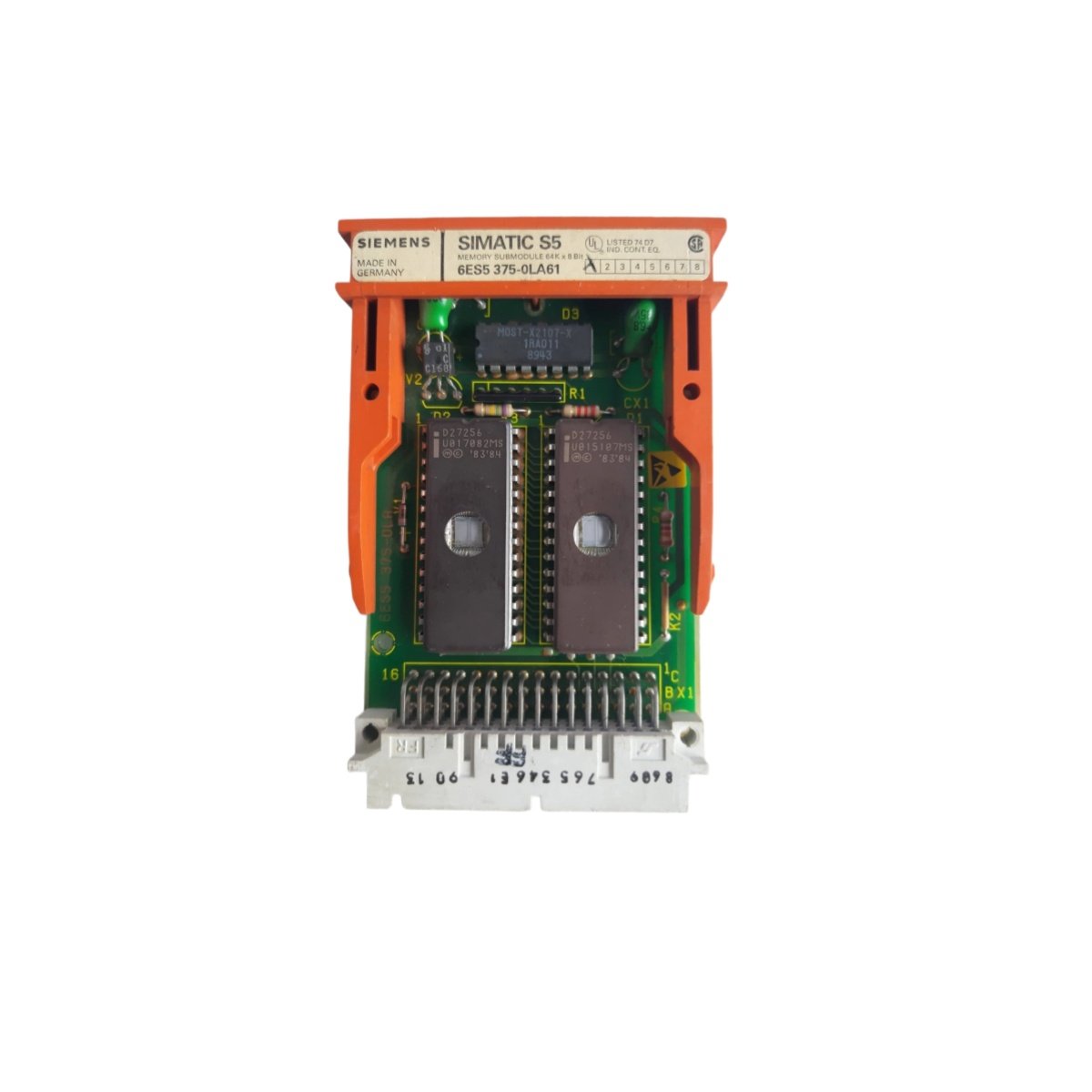

The Siemens 6ES5375-0LA61 memory submodule stores program code and data within SIMATIC S5 automation platforms. Engineers install this unit to expand memory capacity and preserve critical control parameters. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

This submodule plugs into a dedicated socket on a compatible SIMATIC S5 CPU board. It measures roughly 60 mm long, 40 mm wide, and 10 mm thick, while it weighs about 0.05 kg. Moreover, the unit carries a standard pin connector for direct socket mounting.

Functional Capabilities and System Integration

The submodule holds program code while it stores configuration data for the host CPU. Meanwhile, the pin interface links it directly to the processor board. Non-volatile technology retains content, therefore data survives complete power loss.

Additionally, the design allows memory upgrades through simple module replacement. As a result, technicians expand capacity without replacing the entire CPU. Clear labeling helps maintenance crews identify memory size and type quickly. The compact unit also fits existing sockets for straightforward field installation.

Installation and Maintenance Guidelines

Technicians should ground themselves before they handle the 6ES5375-0LA61 submodule. Afterward, aligning the pin connector carefully prevents bent pins and contact faults. Verifying program data confirms successful installation and memory integrity. Finally, consult Siemens documentation for compatible CPU boards and memory configurations.
