Memory Expansion Module for SIMATIC S5 Systems

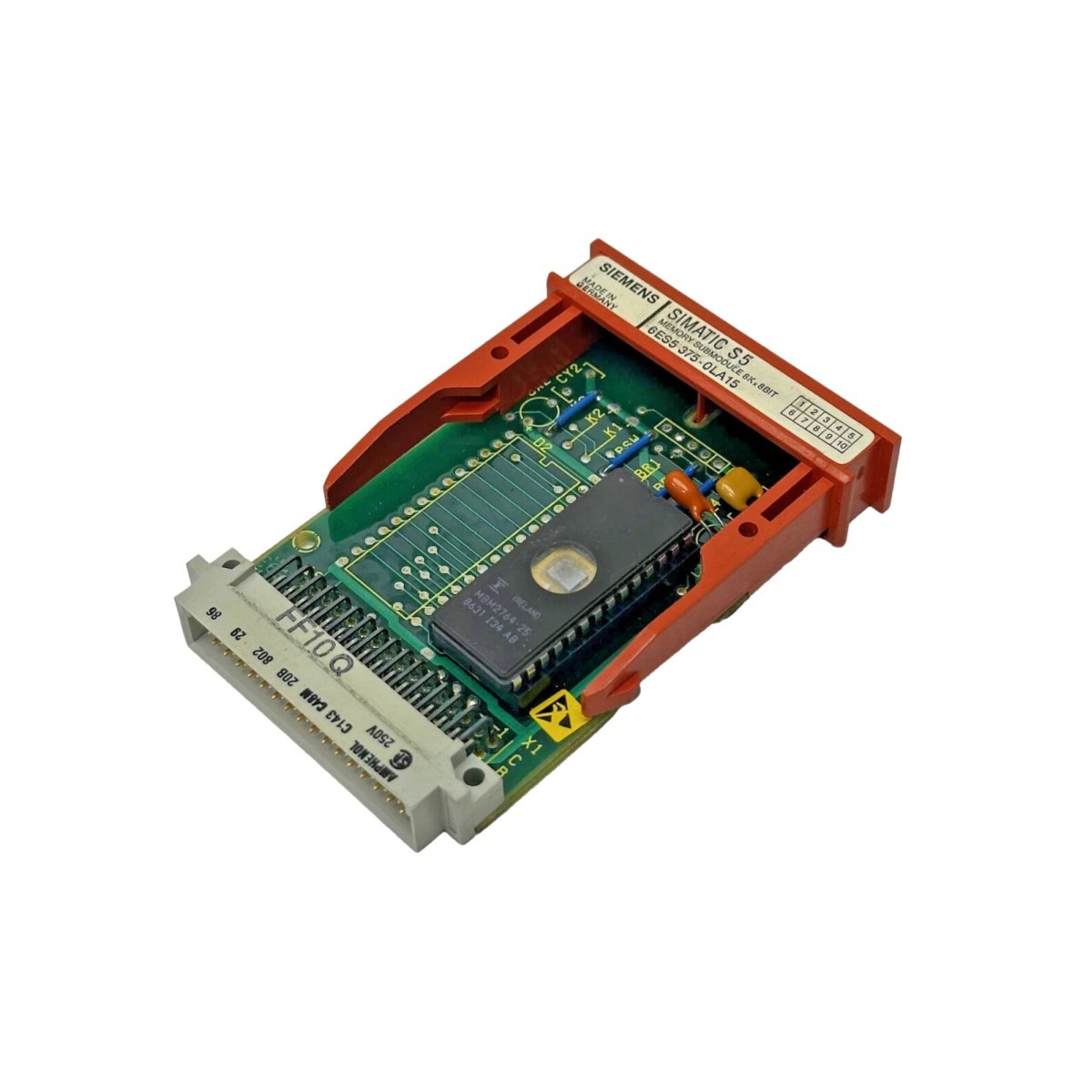

The Siemens 6ES5375-0LA15 functions as a memory expansion module for the SIMATIC S5 automation platform. This module provides additional storage capacity for user programs and system data. Its design supports larger application code and complex logic in industrial control systems.

Memory Capacity and Storage Features

This memory module delivers 8K bytes of user memory for program and data storage. A built-in battery backup preserves the memory content during power outages. The module supports both RAM and EPROM memory types for flexible configurations. Moreover, users can store multiple program blocks for varied production scenarios. Consequently, this module enhances the controller’s capability for demanding tasks.

Hardware Integration and Physical Specifications

The 6ES5375-0LA15 fits directly into the standard SIMATIC S5 rack. Its module dimensions comply with S5 form factor requirements for straightforward installation. The module draws power from the S5 backplane for normal operation. Additionally, a write-protect switch prevents accidental program modification. For this reason, maintenance personnel can safely perform routine checks.

Environmental Ratings and System Compatibility

This memory module operates reliably from 0 °C to 60 °C ambient temperature. Its robust design withstands typical industrial environmental conditions. The module integrates seamlessly with S5 processors and other I/O modules. Furthermore, it supports legacy S5 systems requiring expanded memory capacity. Consequently, this module extends the useful life of existing S5 installations.
