Core Specifications of the Adaptor Module

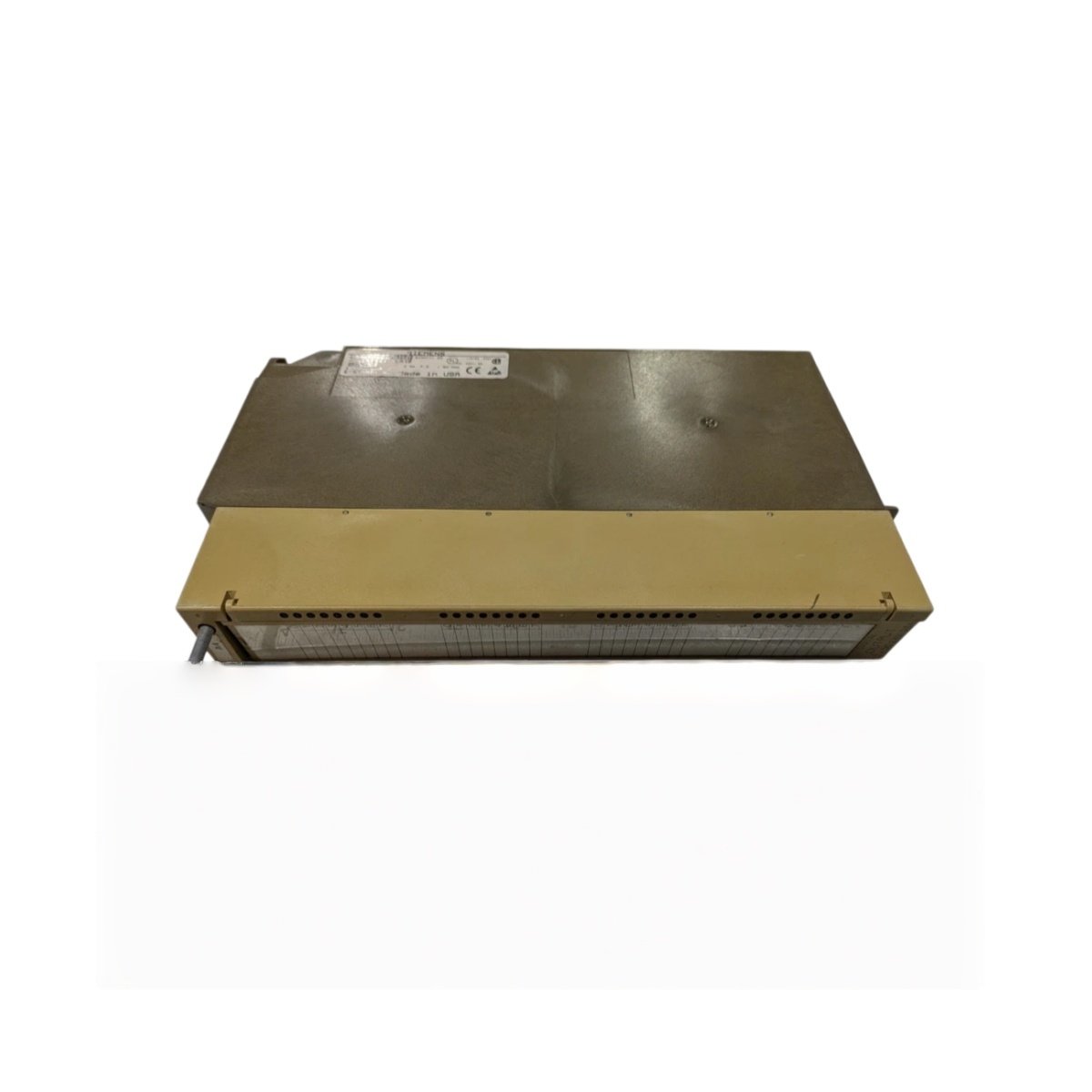

The 6ES5327-7LA12 belongs to the Siemens SIMATIC S5 family of adaptor modules. This interface card bridges S5-135U and S5-155U controllers to expansion racks. Moreover, it enables signal transfer across distributed I/O segments in legacy systems.

Each module occupies a single slot in the central or expansion rack. Additionally, the unit weighs roughly 0.45 kg with its front connector installed. The front panel measures 20 mm in width and 130 mm in height, while the 7LA12 suffix defines the bus interface and cable configuration.

Interface and Mounting Details

The 6ES5327-7LA12 slides into the S5 rack and connects to the backplane bus. Consequently, technicians complete installation without external power wiring. This module links central and expansion racks through a shielded ribbon cable. Therefore, it extends I/O capacity across distant cabinet sections.

A front connector provides secure cable termination and strain relief. Meanwhile, the compact housing fits standard S5 rack clearances.

Performance and Application Notes

Plant engineers deploy the 6ES5327-7LA12 to expand control capacity in legacy installations. Furthermore, the module maintains synchronized data transfer between rack segments. Its shielded ribbon cable resists electromagnetic interference in industrial cabinets. Meanwhile, the backplane interface keeps bus timing consistent across both racks.

The module stores no energy internally, since it draws power from the backplane. As a result, it adds minimal load to the S5 power budget.
