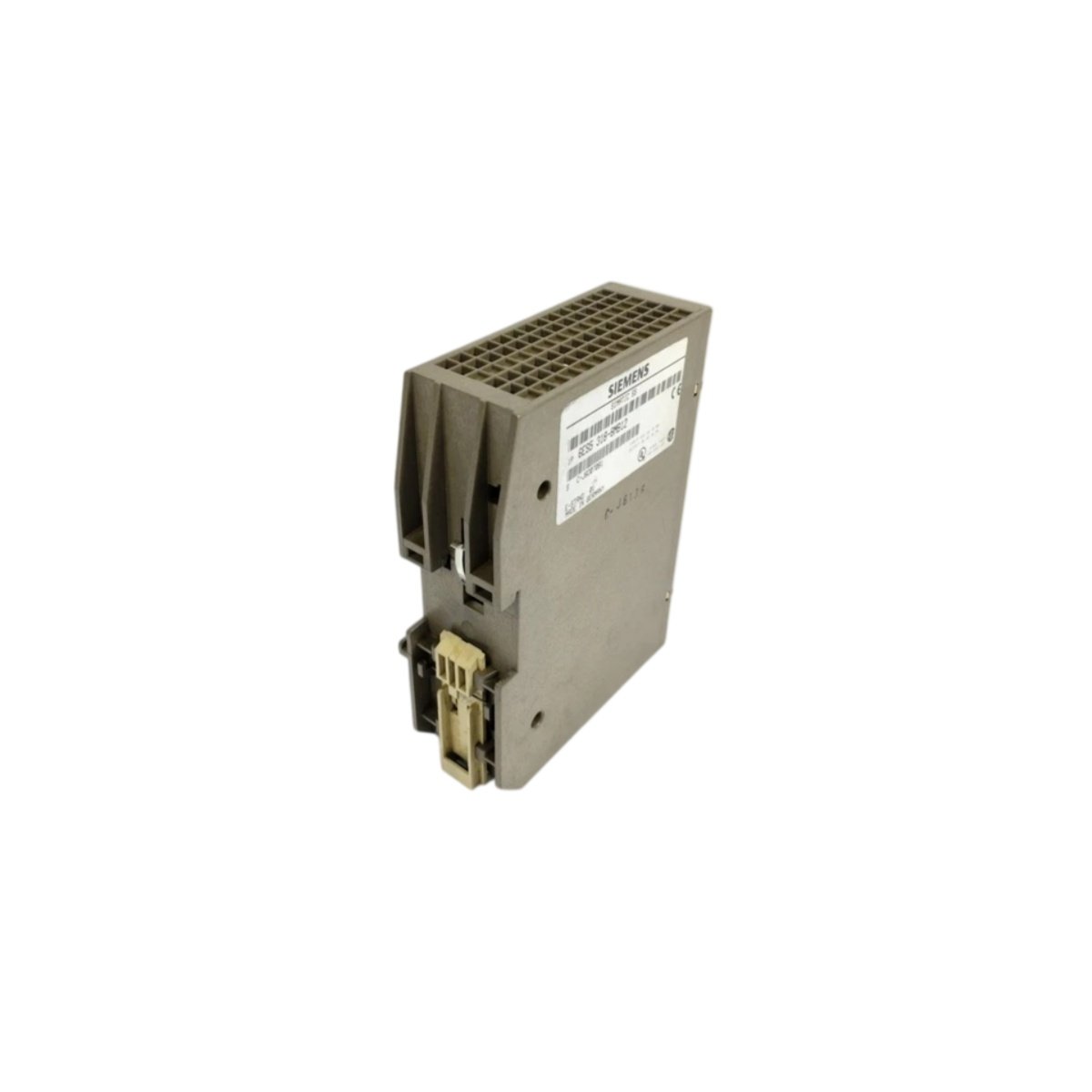

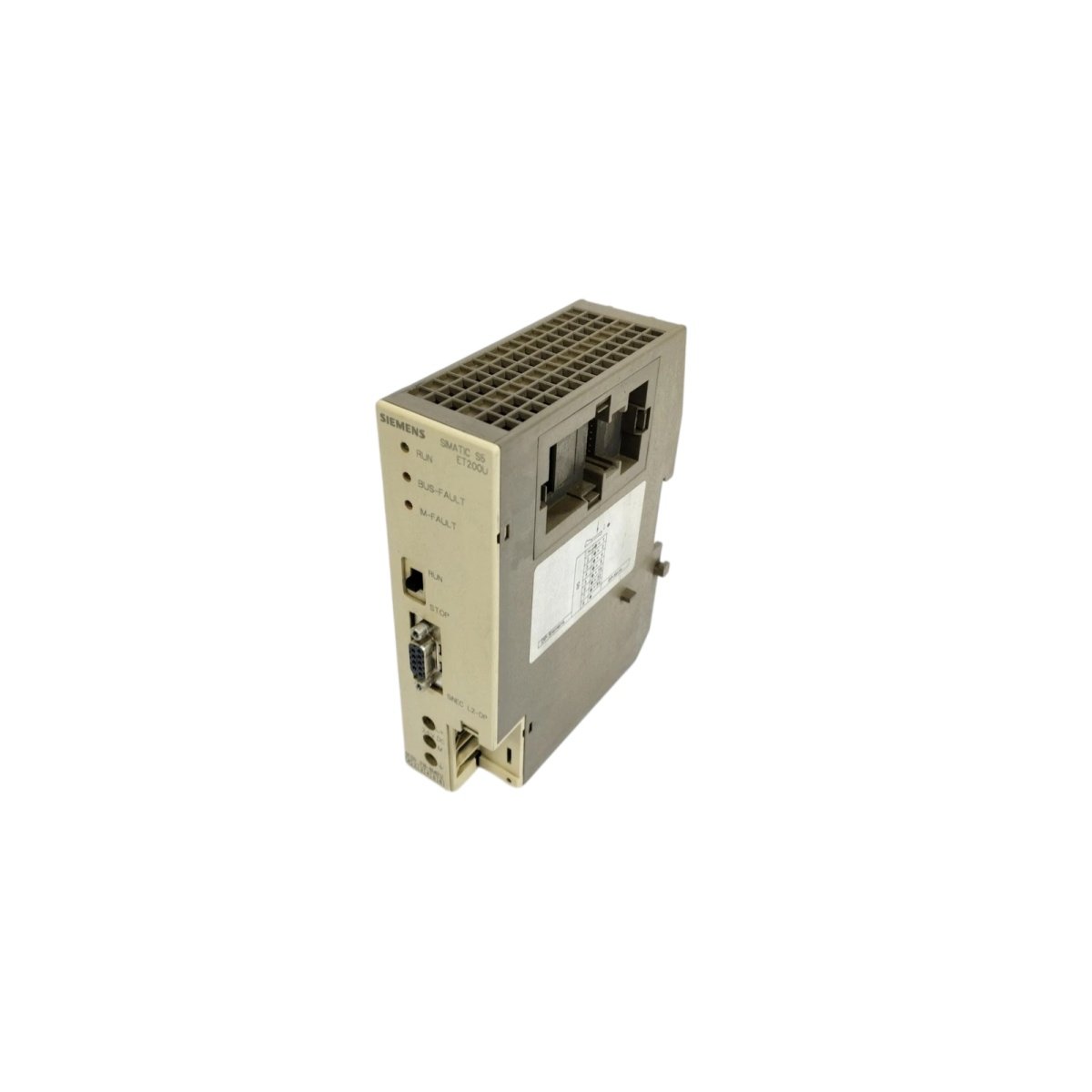

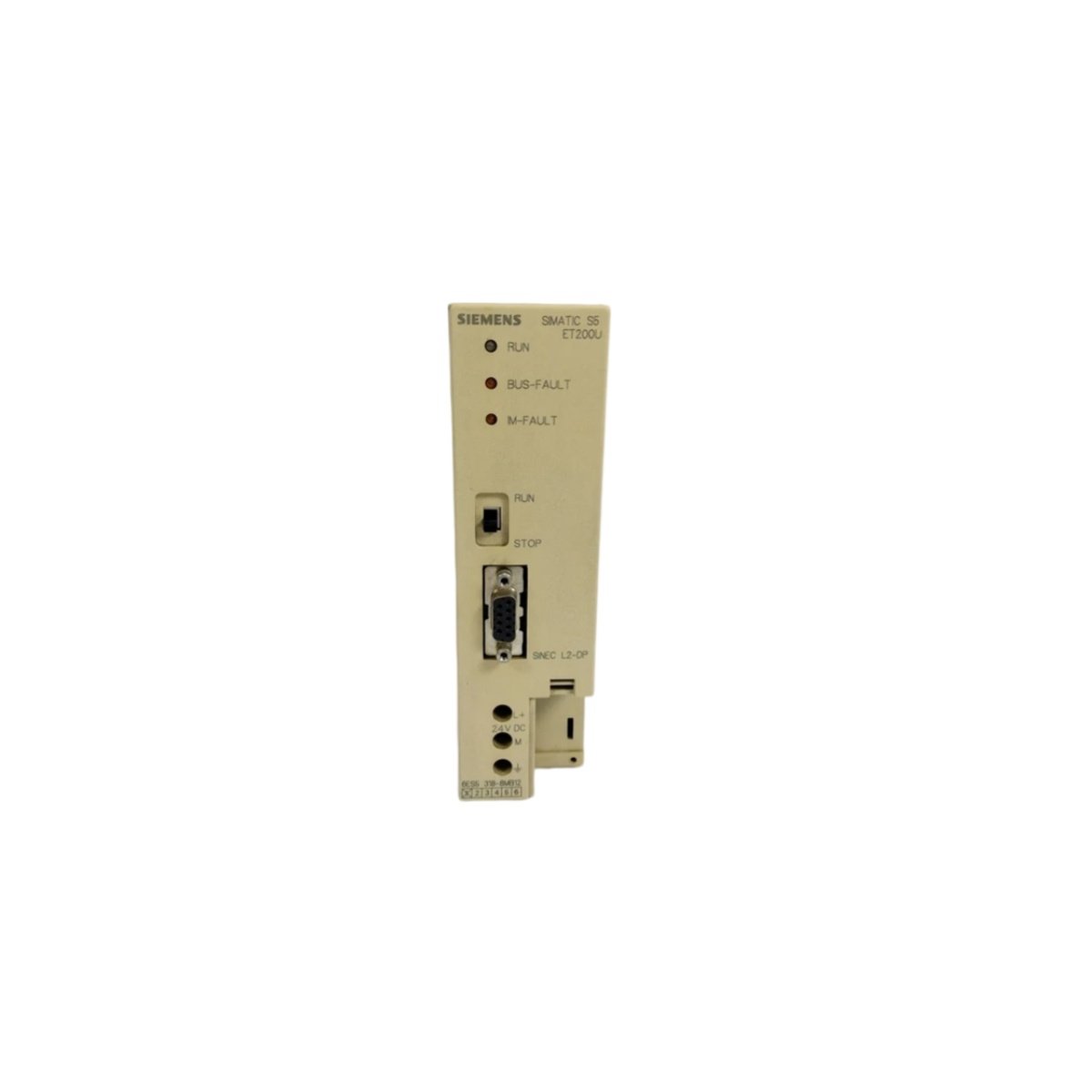

The Siemens 6ES5318-8MB12 interface module connects SIMATIC S5 controllers to PROFIBUS fieldbus networks. This advanced communication processor enables data exchange with distributed I/O devices and drives. Its compact housing measures 140 mm in height, 30 mm in width, and 135 mm in depth.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES5318-8MB12 |
| Category | Interface Module / PROFIBUS DP Master |
| Supported Protocol | PROFIBUS DP |
| Data Transfer Rate | Up to 1.5 Mbps |
| Transmission Distance | Up to 1,200 meters (with repeaters) |
| Maximum Slaves | 32 devices per network |
| Digital Inputs | 8 channels (24 V DC) |
| Digital Outputs | 8 channels (24 V DC, 0.5 A) |
| Isolation Voltage | 1500 V AC (interface-to-backplane) |
| Power Consumption (5 V) | 2.5 W |
| Power Consumption (24 V) | 2.0 W |
| Backplane Current Draw | 500 mA (at 5 V) |
| Dimensions (H×W×D) | 140 × 30 × 135 mm |
| Weight | 0.32 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Protection Rating | IP20 |
| Mounting Type | DIN rail (35 mm) |
| Connector Type | 9-pin D-sub (PROFIBUS) |
| Component Count | 68 components |
PROFIBUS DP Communication and Network Integration
The Siemens 6ES5318-8MB12 functions as a PROFIBUS DP master for S5 automation systems. This interface connects to remote I/O stations, drives, and other PROFIBUS devices. Users can configure up to 32 slaves for distributed control architectures. The module handles cyclic data exchange for deterministic process control.
Data Transfer Speed and Transmission Range
This interface module achieves data rates up to 1.5 Mbps for rapid field communication. The transmission distance extends to 1,200 meters using standard PROFIBUS repeaters. Higher baud rates reduce transmission distances for specific installations. Users can select the appropriate speed based on cable length and network design requirements.
Auxiliary I/O for Local Connectivity
The Siemens 6ES5318-8MB12 includes eight digital inputs for local sensor monitoring. Eight digital outputs provide control signals for indicators or small actuators. These local I/O points reduce cabling between remote racks and field devices. The module processes these signals independently of the PROFIBUS communication.
Diagnostic Capabilities and Error Reporting
This module provides comprehensive diagnostics for PROFIBUS network health monitoring. The unit reports slave failures and communication errors to the S5 CPU. LED indicators display bus status, slave activity, and fault conditions. These diagnostics help maintenance teams identify and resolve network issues rapidly.
Protection and Noise Immunity Features
The Siemens 6ES5318-8MB12 offers 1500 V AC isolation between the PROFIBUS interface and the S5 backplane. This isolation prevents ground loops from affecting CPU operations. Optocouplers protect the transceiver circuitry from voltage spikes. The module withstands electromagnetic interference common in industrial environments.
Component Architecture and Hardware Quality
This PCB contains 68 components, including PROFIBUS controllers, memory chips, and isolation circuits. The board uses multi-layer design to separate high-speed digital and power sections. Surface-mount technology ensures compact placement for reduced board dimensions. Gold-plated edge connectors provide reliable backplane interfacing and data transfer.
Installation and Network Wiring
Mount the Siemens 6ES5318-8MB12 on a standard 35 mm DIN rail using the integrated clip. Connect the PROFIBUS cable to the 9-pin D-sub connector on the front panel. Wire the auxiliary I/O points through the 24-pin screw terminal block. The terminal block accepts wire gauges from 0.2 to 1.5 mm² for flexible connections.
Details
| Weight | 0.12 kg |
|---|---|
| Dimensions | 120 × 80 × 3 mm |
