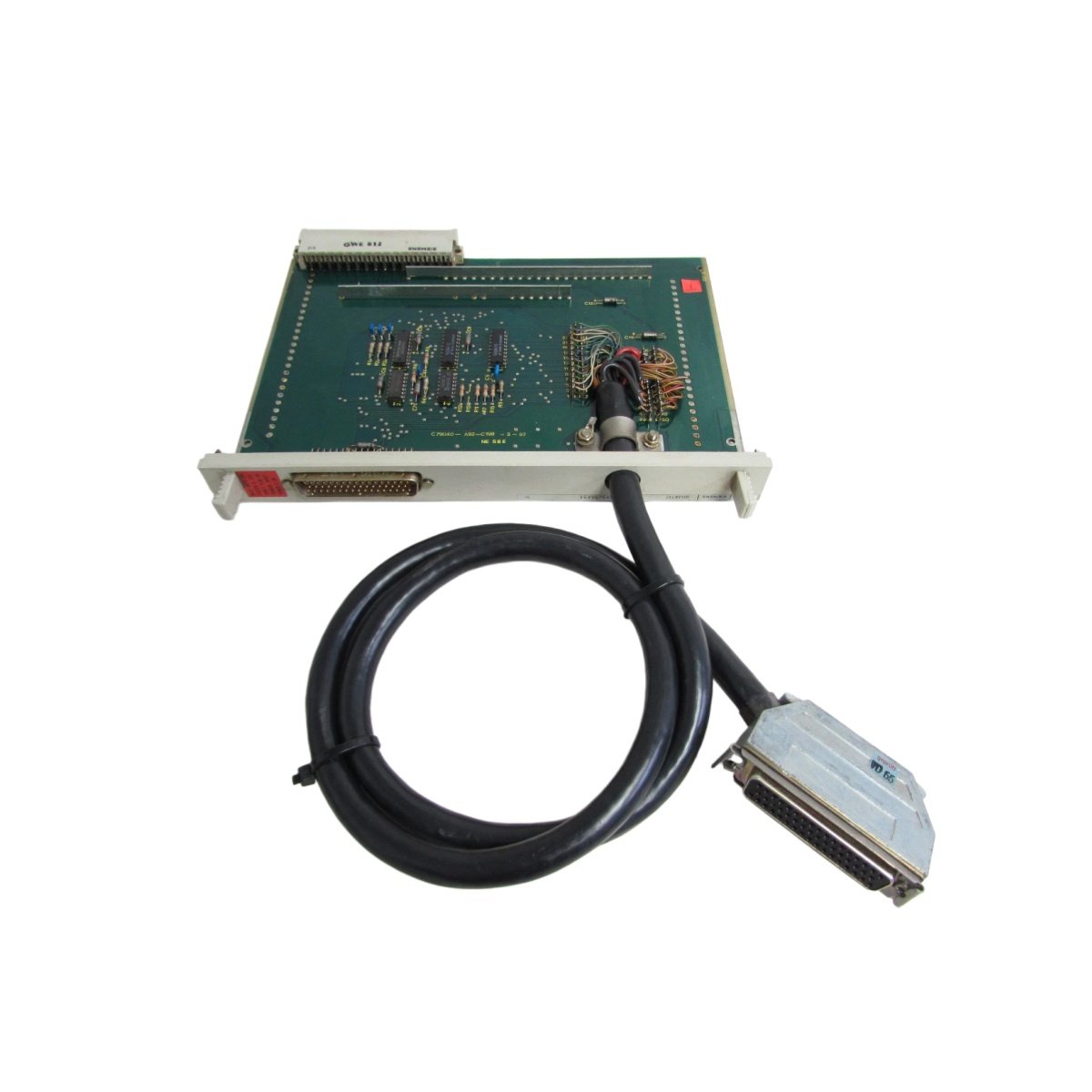

Switching Module for SIMATIC S5 I/O Systems

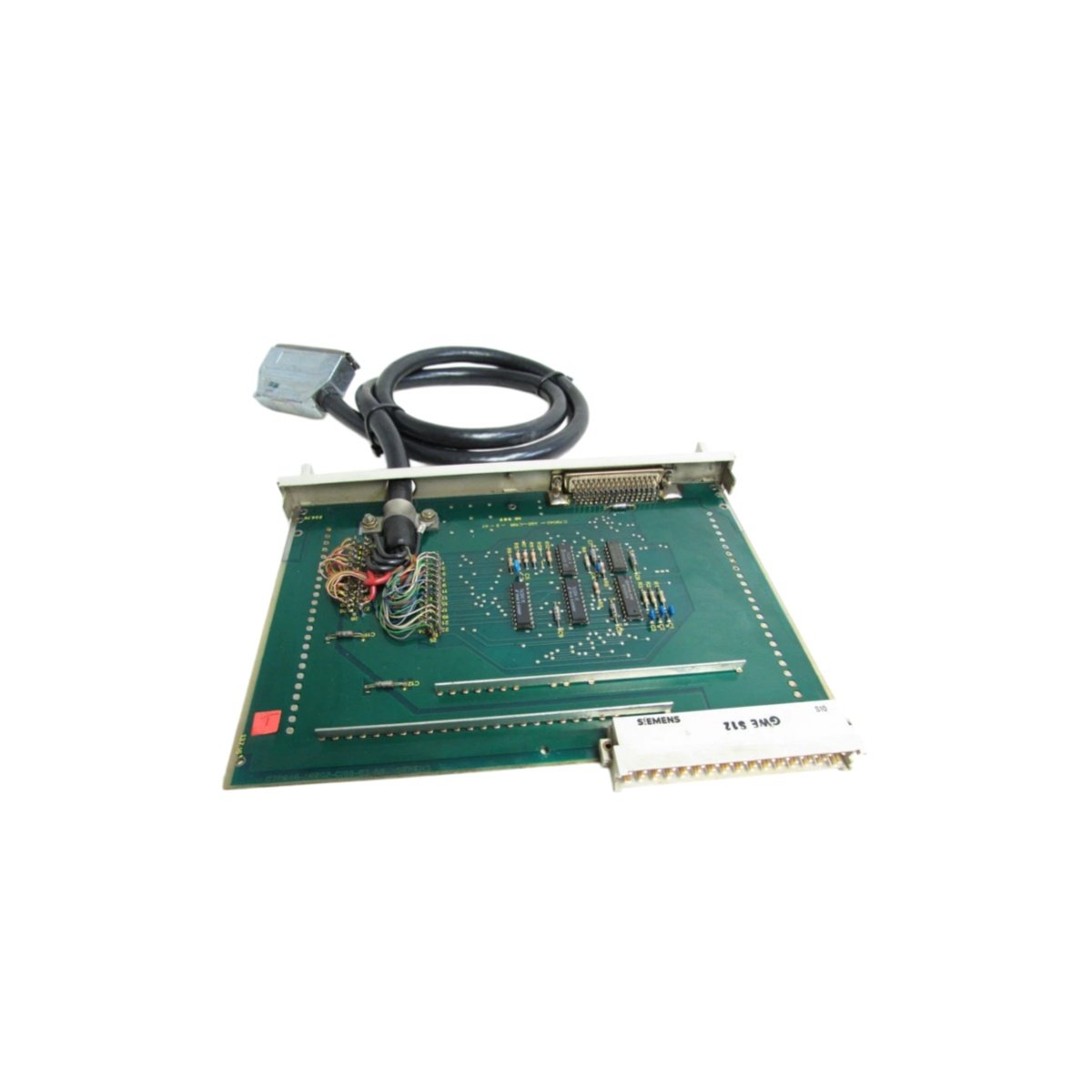

The Siemens 6ES5312-5AA31 serves as a switching module within the SIMATIC S5 I/O system. This module provides interface functionality for digital signals in control cabinets. Its design simplifies wiring between field devices and the PLC backplane.
Switching Capabilities and Signal Handling
This switching module features multiple channels for digital signal routing. A built-in isolation barrier protects the backplane from field-side electrical noise. The module supports both AC and DC voltage levels for flexible connectivity. Moreover, its compact design saves valuable cabinet space. Consequently, this module streamlines field wiring and reduces installation time.
Hardware Integration and Physical Specifications
The 6ES5312-5AA31 fits directly into the standard SIMATIC S5 I/O rack. Its module dimensions comply with S5 form factor requirements for straightforward installation. The module draws power from the S5 backplane for normal operation. Additionally, front-panel LEDs provide clear channel status indication. For this reason, maintenance personnel can quickly identify signal faults.
Environmental Ratings and System Compatibility
This switching module operates reliably from 0 °C to 60 °C ambient temperature. Its robust design withstands typical industrial environmental conditions. The module integrates seamlessly with S5 processors and power supplies. Furthermore, it supports legacy S5 systems requiring digital signal switching. Consequently, this module provides a reliable interface for field devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6ES5312-5AA31 |
| Type | Switching Module |
| Platform | SIMATIC S5 |
| Signal Type | Digital (AC/DC) |
| Isolation | Field-to-backplane |
| Mounting | S5 I/O rack |
| Status Indication | Channel LEDs |
| Operating Temp | 0 °C to 60 °C |
| Compliance | Siemens S5 standards |
Details
| Weight | 2.0 kg |
|---|---|
| Dimensions | 200 × 234 × 180 mm |
