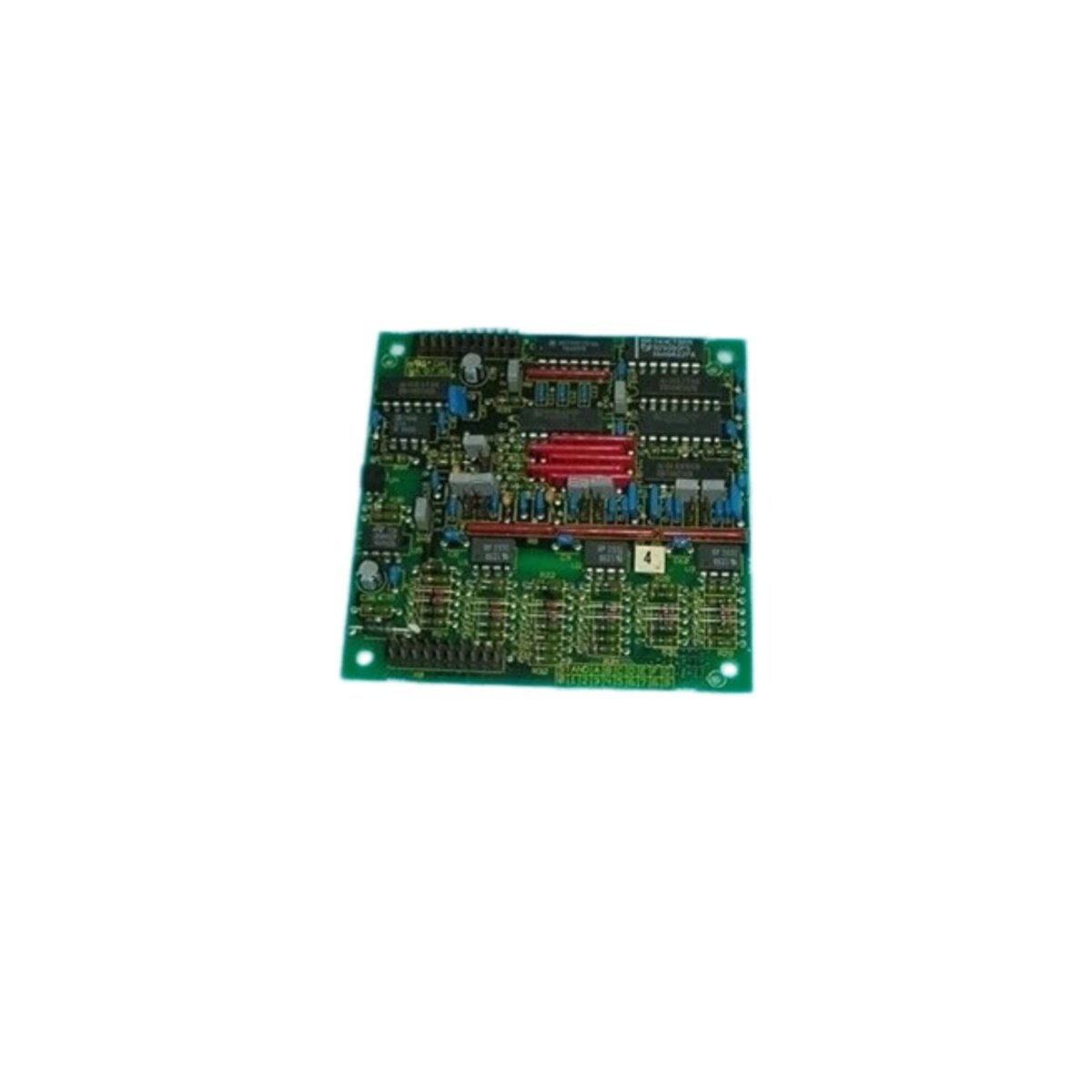

The 6ES5281-4UB12 is a plug module from the Siemens SIMATIC S5 series, engineered to handle counting tasks in industrial control systems. This module processes fast pulse signals for position, flow, and quantity measurement. Consequently, plant engineers still rely on it for maintaining legacy S5 automation.
Technical Specifications at a Glance
The table below presents the core technical parameters of the 6ES5281-4UB12. Each figure comes from the manufacturer’s official documentation.
| Parameter | Specification |
|---|---|
| Product type | Counter plug module |
| Compatibility | SIMATIC S5 PLC systems |
| Function | High-speed pulse counting |
| Counter inputs | 2 independent counting channels |
| Counting frequency | Up to 500 kHz |
| Dimensions (W x H x D) | Approx. 185 x 130 x 30 mm |
| Weight | Approx. 0.30 kg |
| Interface | Backplane bus connector |
| Power supply | 5 V DC via backplane |
| Energy storage | Not applicable |
| Part count | Single PCB assembly |
Counting Function and Signal Processing
This module provides two independent counting channels for pulse evaluation. Additionally, it handles counting frequencies up to 500 kHz with high accuracy. Therefore, it suits fast positioning and flow measurement applications.
Physical Design and Installation
The module measures roughly 185 x 130 x 30 mm and weighs about 0.30 kg. Moreover, it plugs into the S5 backplane through a standard bus connector. As a result, technicians complete installation quickly without special tools.
Power Supply and Integration
The 6ES5281-4UB12 draws 5 V DC directly from the PLC backplane. Furthermore, it exchanges counting data with the CPU over the internal bus. Consequently, no external wiring or separate supply is necessary.
Details
| Weight | 0.72 kg |
|---|---|
| Dimensions | 325 × 168 × 8 mm |
