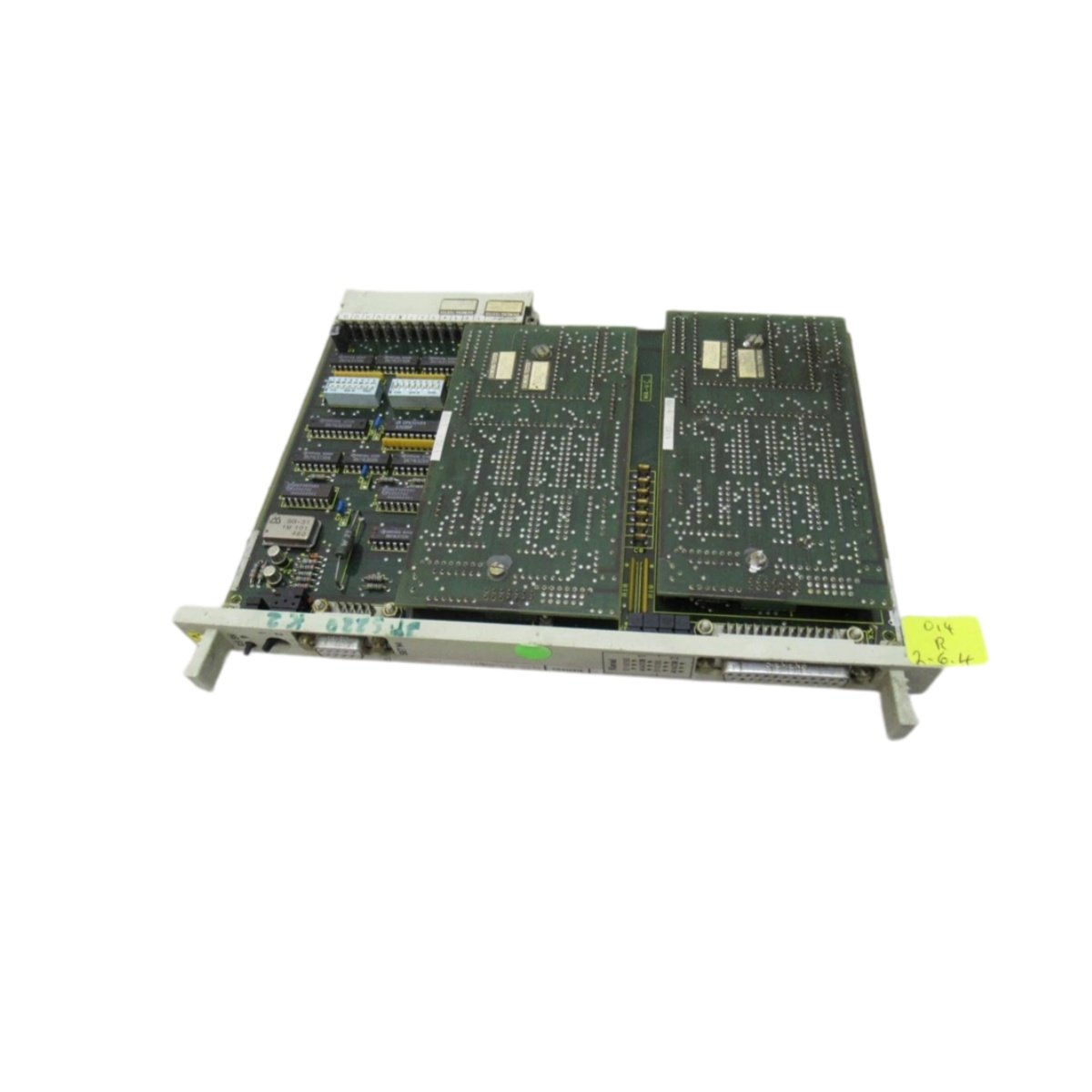

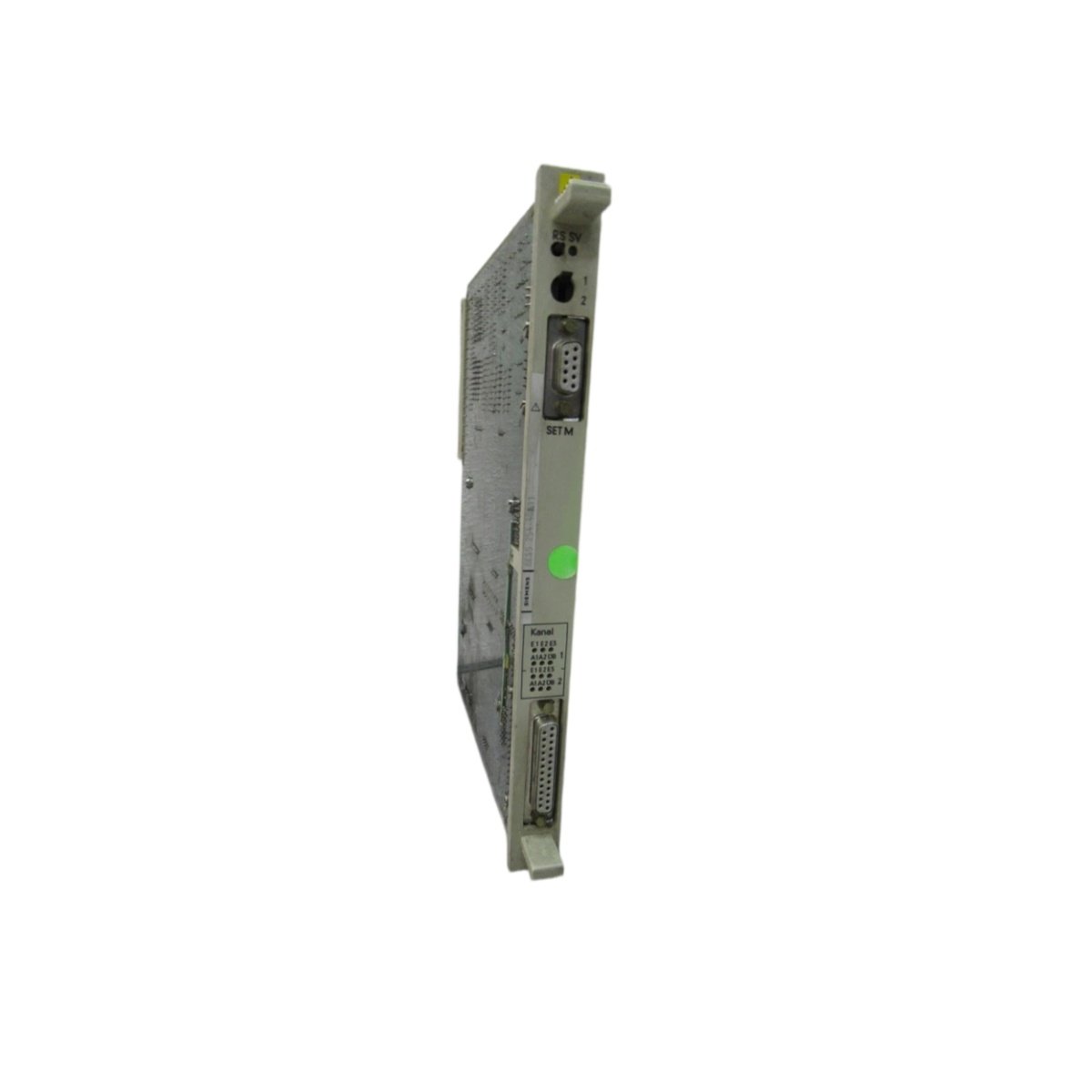

The Siemens 6ES5254-4UA11 interface module enables high-speed data exchange between SIMATIC S5 controllers and peripheral devices. This versatile communication unit supports multiple protocols for flexible system integration. Its compact housing measures 140 mm in height, 30 mm in width, and 135 mm in depth.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES5254-4UA11 |
| Category | Interface Module / Communication Processor |
| Communication Protocol | Siemens SINEC L1, L2, or proprietary S5 bus |
| Data Transfer Rate | Up to 187.5 kbps |
| Transmission Distance | Up to 1,200 meters (with repeaters) |
| Number of Nodes | Up to 32 devices per network |
| Interface Type | RS-485 (differential) |
| Digital Inputs | 4 channels (24 V DC) |
| Digital Outputs | 4 channels (24 V DC, 0.5 A) |
| Isolation Voltage | 1500 V AC (interface-to-backplane) |
| Power Consumption (5 V) | 2.2 W |
| Power Consumption (24 V) | 1.5 W |
| Backplane Current Draw | 440 mA (at 5 V) |
| Dimensions (H×W×D) | 140 × 30 × 135 mm |
| Weight | 0.30 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Protection Rating | IP20 |
| Mounting Type | DIN rail (35 mm) |
| Terminal Type | 24-pin screw connector |
| Component Count | 62 components |
Protocol Support and Network Flexibility
The Siemens 6ES5254-4UA11 supports SINEC L1 and L2 protocols for various fieldbus applications. This interface also handles the proprietary S5 bus for connecting remote I/O racks and peripheral devices. Users can configure the module for different network types through the CPU parameters. Such protocol flexibility enables seamless integration with existing automation infrastructure.
Data Transfer and Transmission Performance
This interface module achieves data rates up to 187.5 kbps for rapid information exchange. The transmission distance reaches 1,200 meters with the use of signal repeaters. A single network accommodates up to 32 nodes for medium-scale distributed architectures. Such performance suits applications requiring timely data updates between controllers and remote devices.
I/O Integration and Auxiliary Functions
The Siemens 6ES5254-4UA11 includes four digital inputs for local status monitoring. Four digital outputs provide control signals for indicators or external relays. These auxiliary I/O points reduce the need for separate I/O modules. The module passes these signals directly to the CPU for program evaluation.
Isolation and Noise Protection
This module provides 1500 V AC isolation between the interface circuitry and the S5 backplane. The isolation barrier prevents ground loops from affecting controller operations. Optocouplers protect the bus transceivers from voltage spikes. Such protection ensures reliable communication in electrically noisy environments.
Power Architecture and Energy Distribution
The Siemens 6ES5254-4UA11 draws 2.2 W from the 5 V backplane supply for logic circuits. A separate 24 V field supply provides 1.5 W for output drivers and input conditioning. This split power architecture isolates control logic from field-side disturbances. The design ensures stable operation even with voltage fluctuations on the field supply.
Component Layout and Circuit Quality

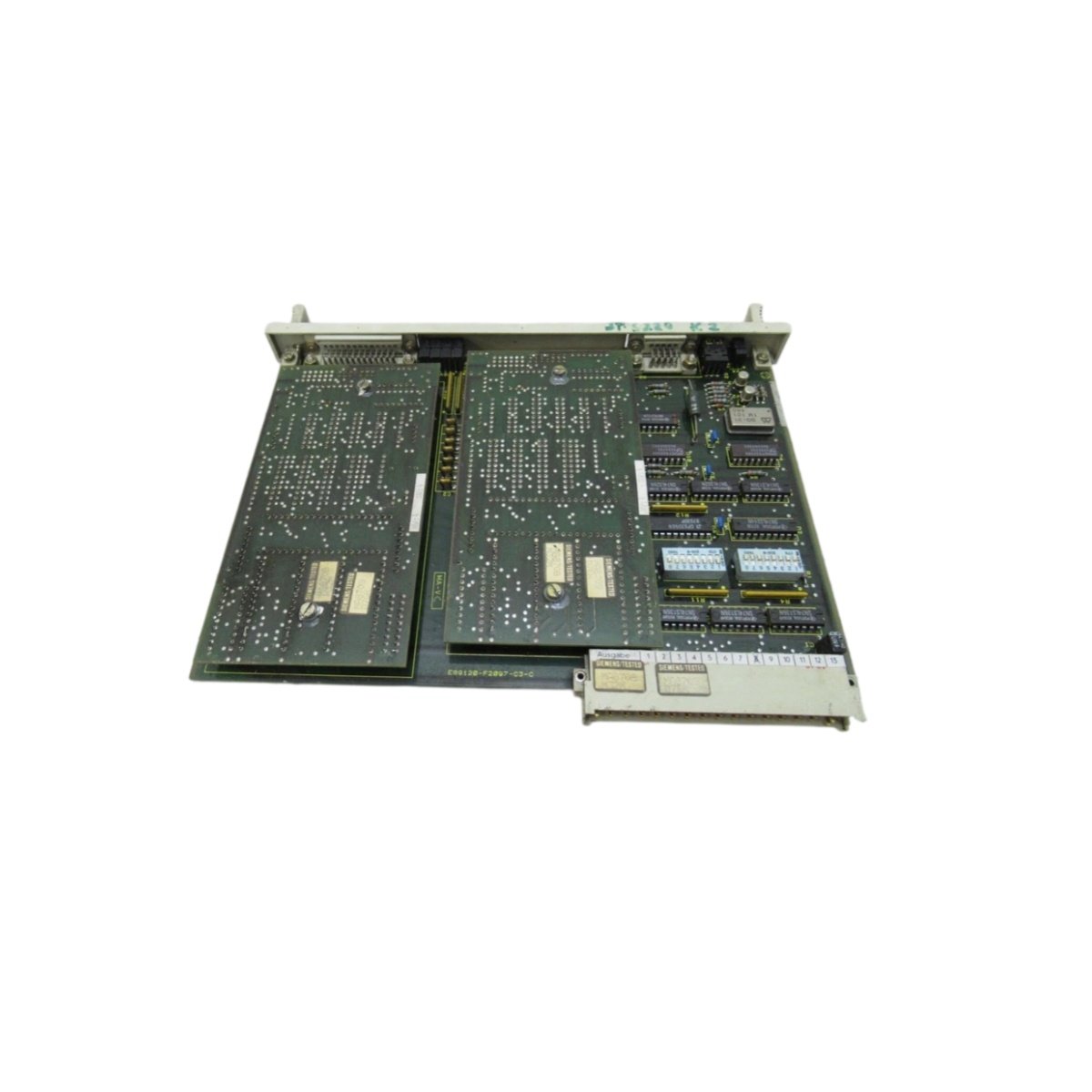

This PCB contains 62 components, including bus transceivers, microcontrollers, and protection circuits. The board uses multi-layer design to separate analog and digital signal paths. Surface-mount technology enables compact placement for reduced board size. Gold-plated edge connectors ensure reliable contact with the backplane system.
Installation and Connection
Mount the Siemens 6ES5254-4UA11 on a standard 35 mm DIN rail using the integrated clip mechanism. Connect the RS-485 network cable through the 9-pin D-sub connector. Wire the auxiliary I/O points using the 24-pin screw terminal block. The terminal block accepts wire gauges from 0.2 to 1.5 mm² for flexible terminations.
Details
| Weight | 0.12 kg |
|---|---|
| Dimensions | 120 × 80 × 3 mm |
