Precision Control for SIMATIC S5 Systems

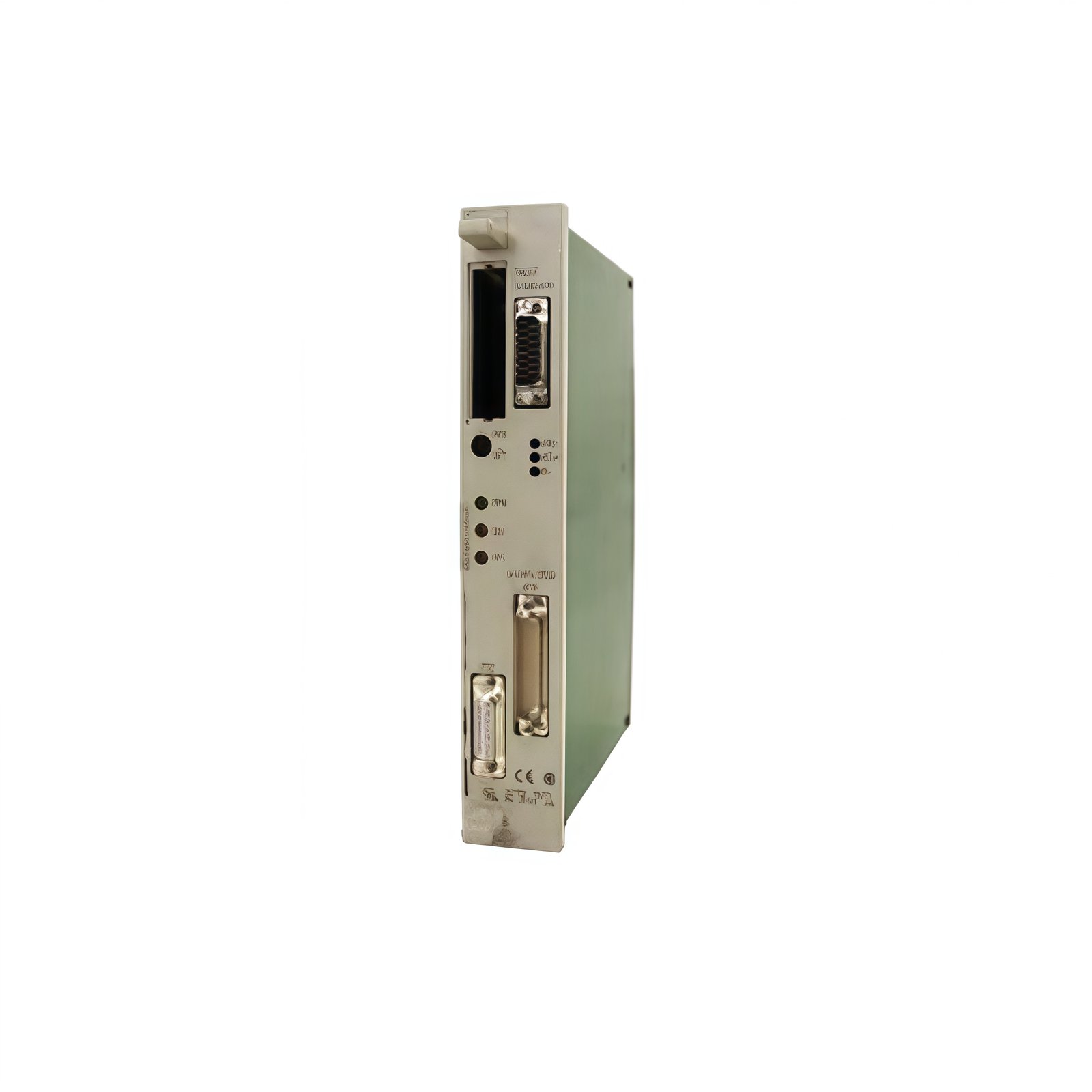

This dedicated control module delivers high-performance closed-loop regulation for complex processes. The 6ES5252-3AA21 handles PID, cascade, and ratio control strategies with exceptional accuracy. It integrates directly into the SIMATIC S5 rack for seamless system communication. The module accepts analog inputs and provides analog outputs for continuous process control. Its compact design occupies a single slot in the S5 chassis.

Technical Specifications and Physical Attributes

The 6ES5252-3AA21 operates on a 5 V DC supply from the S5 backplane. It provides 2 analog outputs with 12-bit resolution and 0-10 V or 0-20 mA ranges. The module handles 4 analog inputs with the same resolution and range for versatile field connectivity. It also offers 8 digital inputs and 4 digital outputs for discrete logic integration. For communication, the 6ES5252-3AA21 uses the S5 bus and a front connector. The module measures 232 mm in depth and 25 mm in width. It weighs approximately 0.5 kg for easy handling and installation.

Configuration and Application Guidance

This module excels in temperature, pressure, and flow control applications. First, insert the 6ES5252-3AA21 securely into an available S5 rack slot. Then, connect the field wiring to the front connector using the proper terminals. For analog signals, always use shielded twisted-pair cables to reduce noise. Additionally, configure the control parameters using the STEP 5 software. The 6ES5252-3AA21 supports autotuning for optimized loop performance. Its robust design ensures reliable operation in demanding industrial environments.
