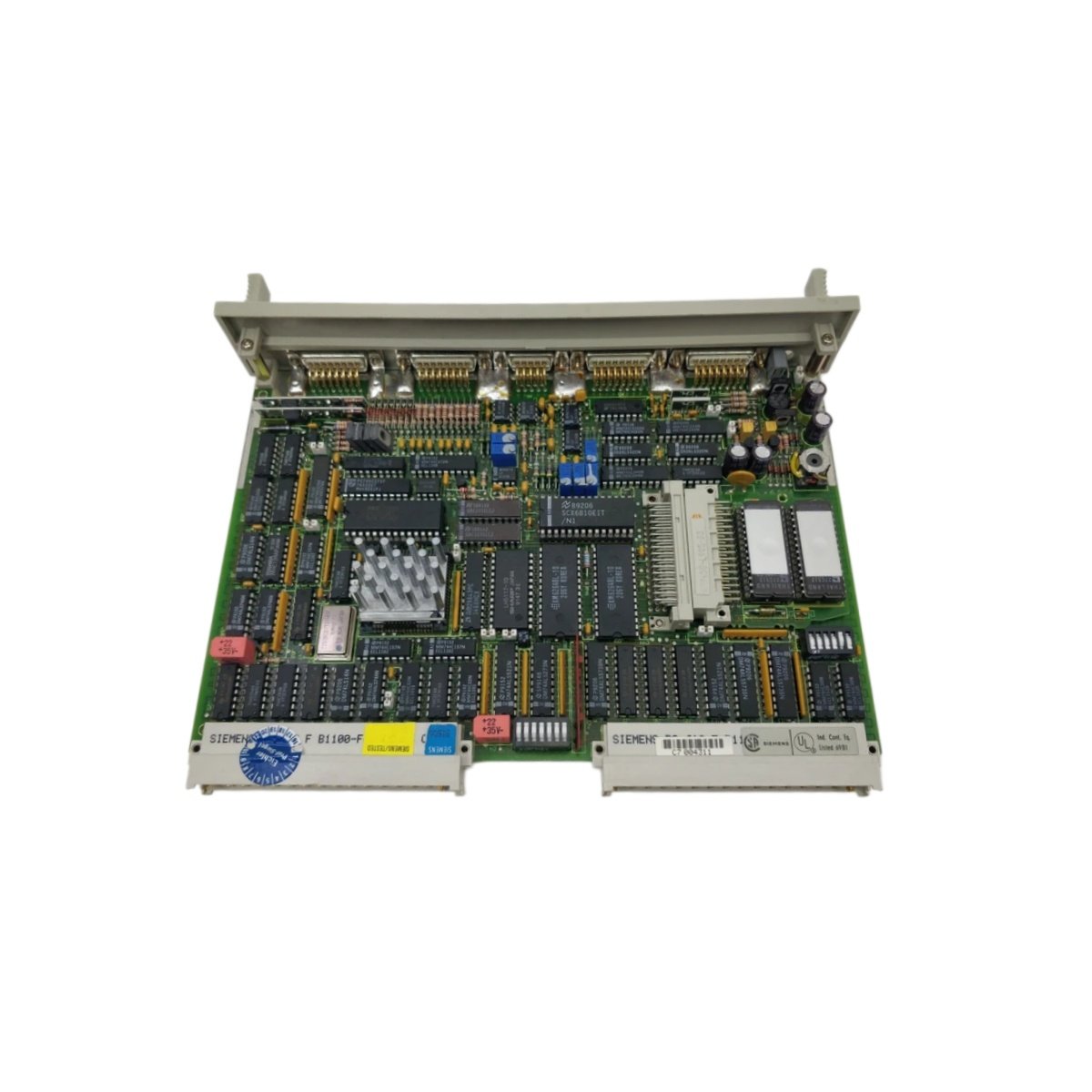

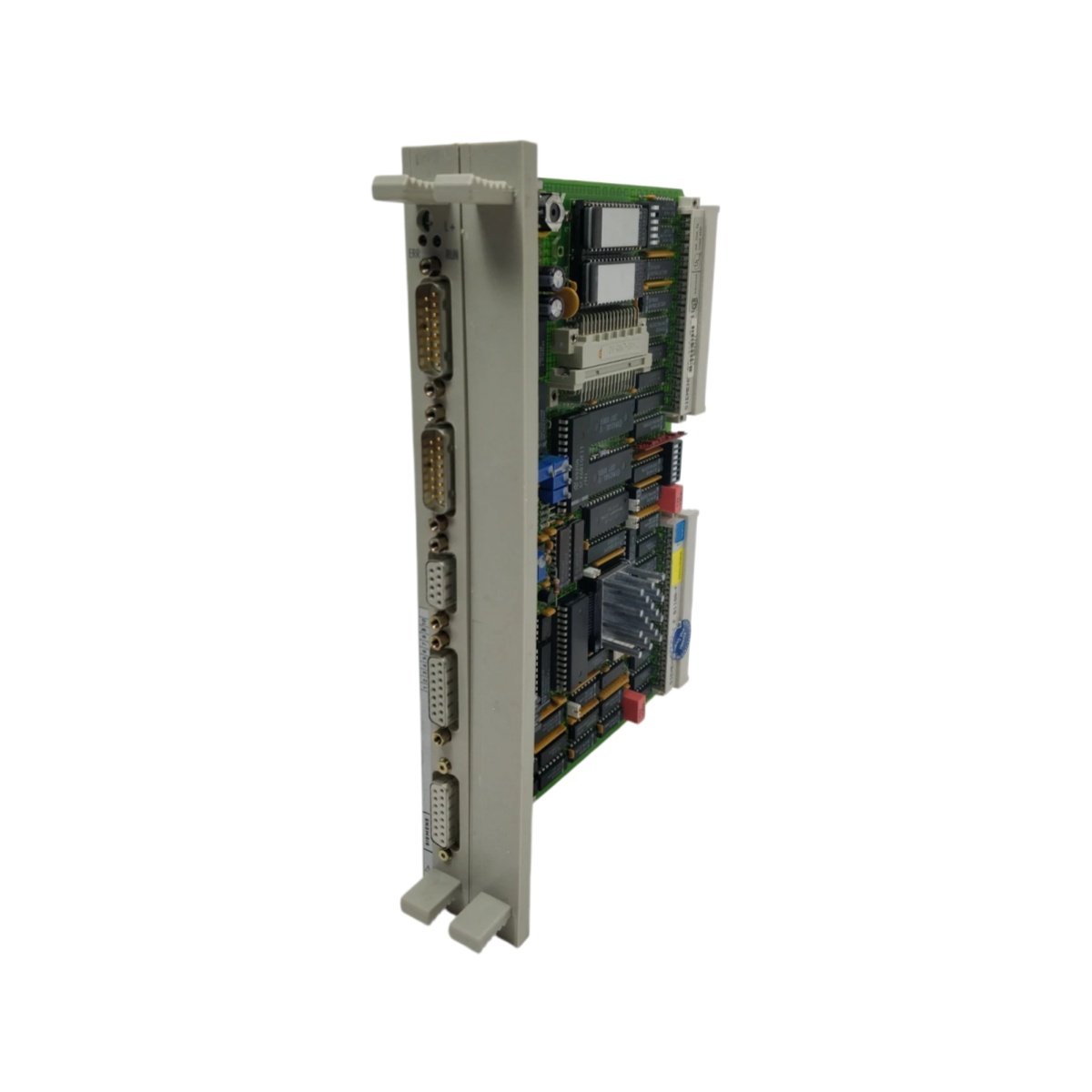

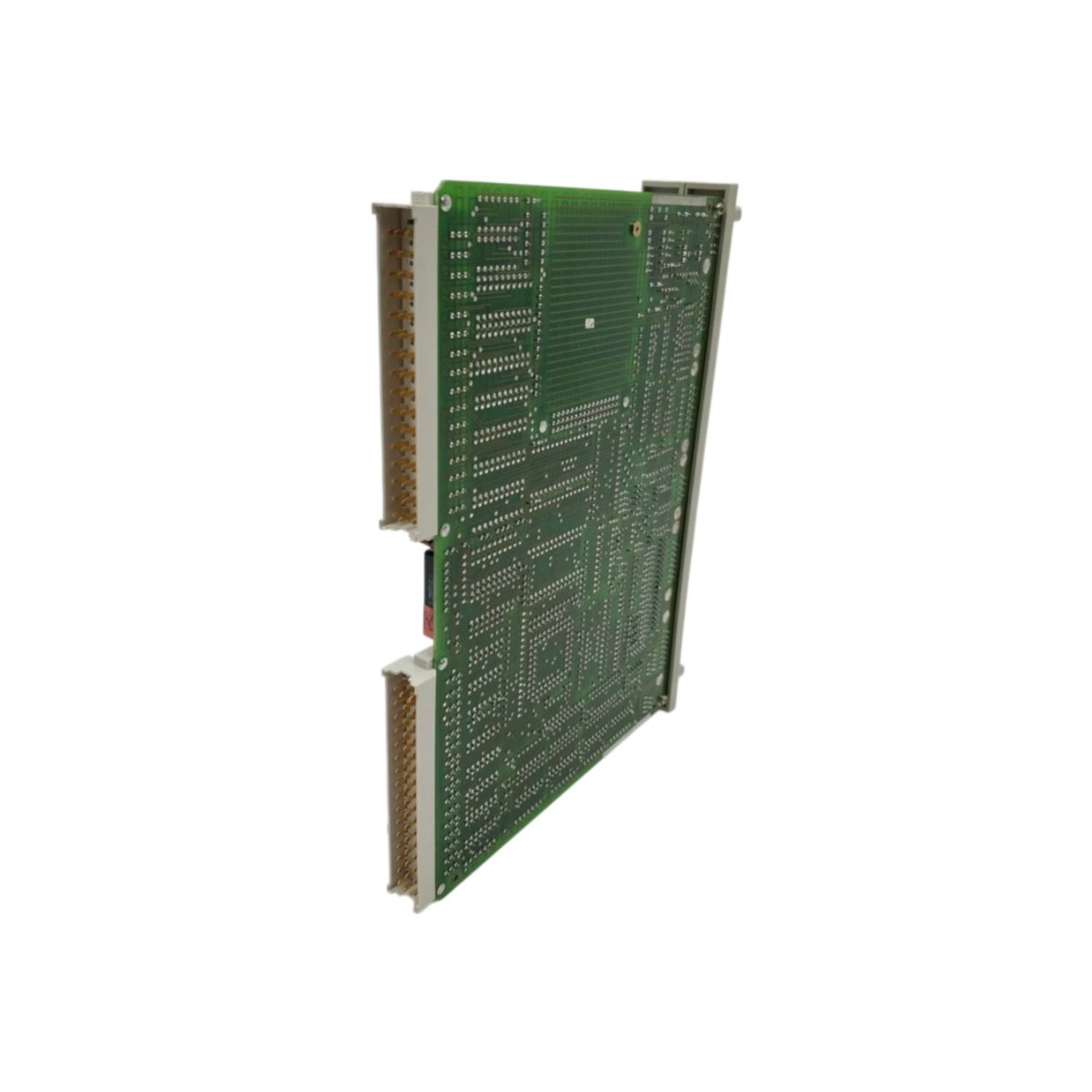

The Siemens 6ES5246-4UA41 positioning module controls motion axes for industrial automation systems. Engineers select this unit for accurate axis positioning across manufacturing environments. Moreover, its compact housing supports straightforward integration into existing SIMATIC S5 racks.

Interface and Connectivity

The module links to the backplane connector for high-speed data exchange. Additionally, it provides dedicated encoder inputs and analog output channels for drive control. These interfaces support closed-loop positioning, therefore covering common motion control requirements. Field wiring uses screw-terminal blocks that reduce installation time considerably.

Physical Dimensions and Weight

The unit measures 25 mm in width, 125 mm in height, and 110 mm in depth. Furthermore, it weighs approximately 180 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.

Component Count and Energy Storage

The 6ES5246-4UA41 integrates motion control circuits for precise axis positioning. It also contains one filtering capacitor rated at 220 µF for signal stability. Therefore, this energy storage element suppresses ripple during rapid position changes. The board carries roughly 190 discrete components for dependable operation.

Technical Specifications Table

Why This Module Suits Industrial Applications

System integrators value the 6ES5246-4UA41 for its stable positioning and simple wiring. Meanwhile, the filtering capacitor protects control signals from electrical noise. As a result, motion accuracy improves while maintenance costs decrease.
