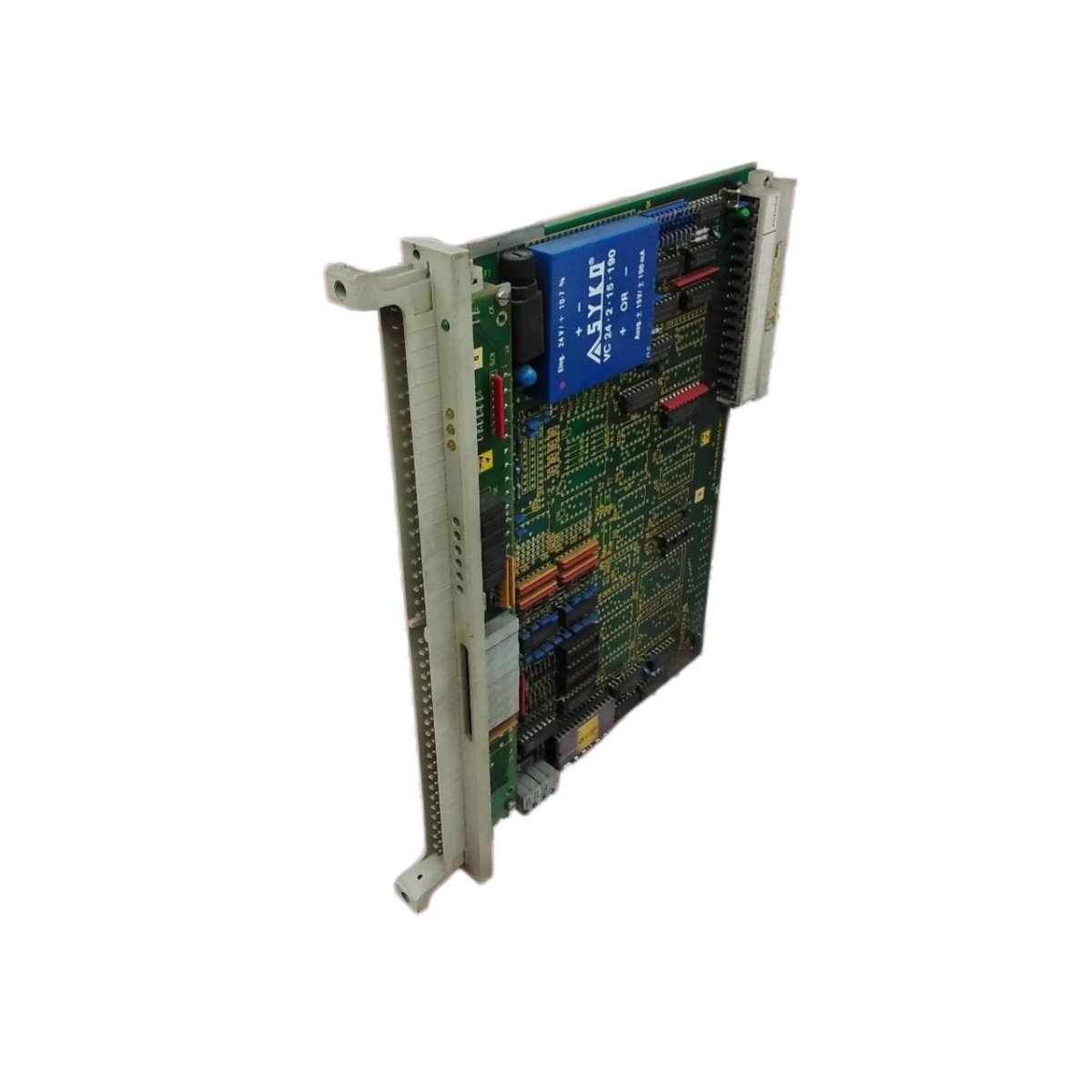

The Siemens 6ES5245-1AB11 functions as a specialized valve control module for the SIMATIC S5-115U programmable logic controller . This module directly actuates solenoid valves and monitors their feedback signals for precise process control . Additionally, the 6ES5245-1AB11 integrates positioning and monitoring functions into a single compact unit .

Technical Specifications

The 6ES5245-1AB11 provides sixteen digital outputs capable of driving 24 V DC solenoid valves . The module also features sixteen digital inputs for reading valve position feedback and limit switches . For precise positioning tasks, this module includes an analog input for receiving setpoint values from a host controller .

Key Design Features

The 6ES5245-1AB11 offers integrated short-circuit protection on all outputs, safeguarding both the module and connected valves from electrical faults . Furthermore, each channel includes a dedicated status LED, allowing operators to quickly identify active outputs or fault conditions . The module provides galvanic isolation between the logic section and the field power section, effectively preventing noise from affecting control signals . This isolation feature proves essential for maintaining reliable operation in electrically noisy industrial environments .

Application and Integration

The 6ES5245-1AB11 integrates seamlessly with S5-115U systems through the standard backplane bus . In process automation applications, this module controls valve banks for fluid handling, pneumatic actuation, and material dosing systems . Consequently, industries such as chemical processing, water treatment, and pharmaceutical manufacturing regularly deploy this valve control module . Note that this product has reached its end-of-life status, and users can find replacement units through aftermarket suppliers .
