Core Specifications of the Counter Module

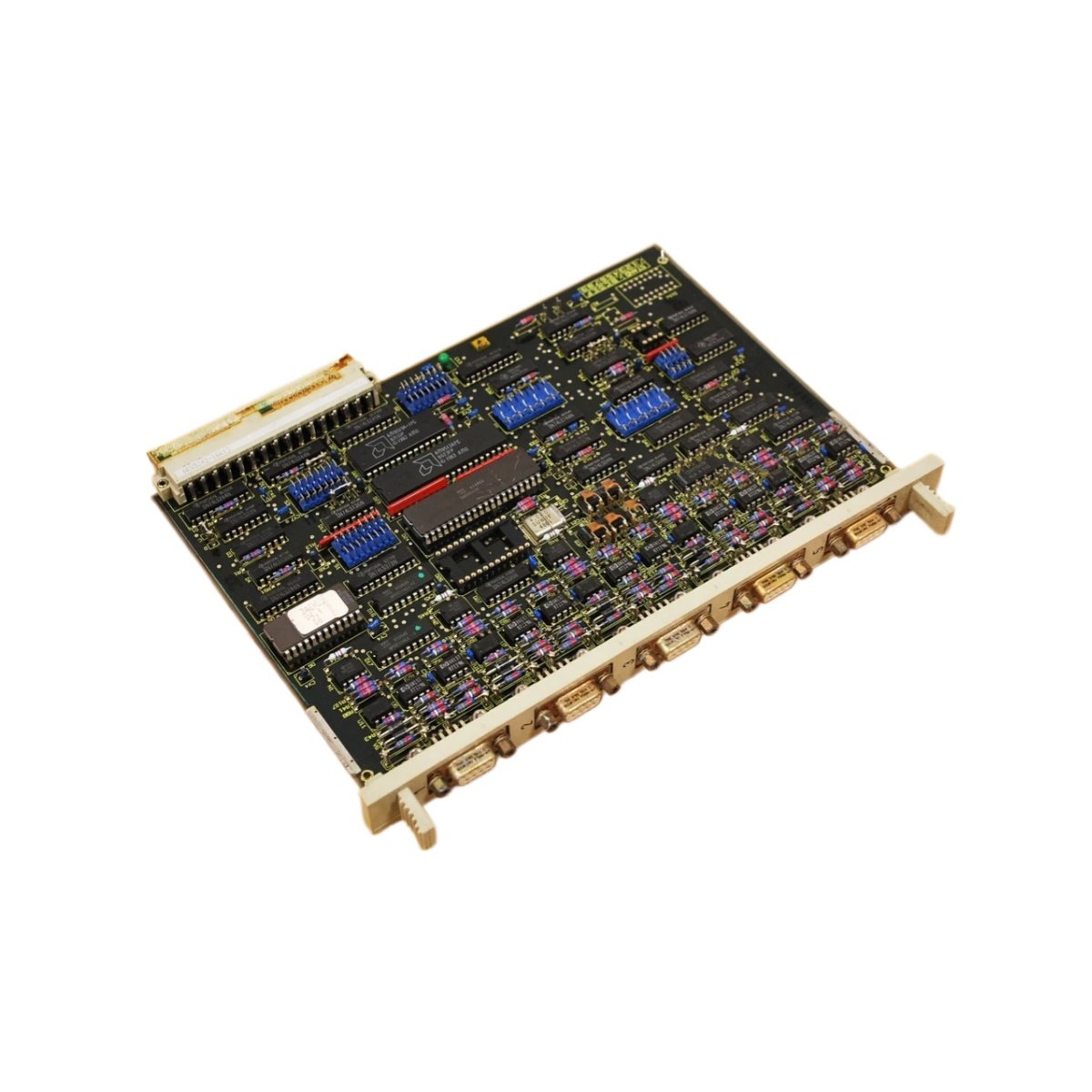

The 6ES5242-1AA13 belongs to the Siemens SIMATIC S5 family of intelligent counter modules. This card processes high-speed pulse signals from encoders and proximity sensors. Moreover, it offloads counting tasks from the main CPU in legacy control systems.

Each module occupies a single slot in the S5 central rack. Additionally, the unit weighs roughly 0.50 kg with its front connector installed. The front panel measures 20 mm in width and 130 mm in height, while the 1AA13 suffix defines the channel count and signal configuration.

Interface and Mounting Details

The 6ES5242-1AA13 slides into the S5 rack and connects to the backplane bus. Consequently, technicians complete replacement without rewiring field terminations. This module accepts pulse trains through a front screw terminal strip. Therefore, it handles encoder feedback directly at the rack level.

Each channel supports incremental counting with direction detection. Meanwhile, the compact housing fits standard S5 rack clearances.

Performance and Application Notes

Plant engineers deploy the 6ES5242-1AA13 for position and speed measurement tasks. Furthermore, the module counts pulses up to 500 kHz without CPU intervention. Its two independent channels handle dual-axis feedback simultaneously. Meanwhile, the backplane interface keeps measurement data synchronized with the controller.

The module stores no energy internally, since it draws power from the backplane. As a result, it adds minimal load to the S5 power budget.
