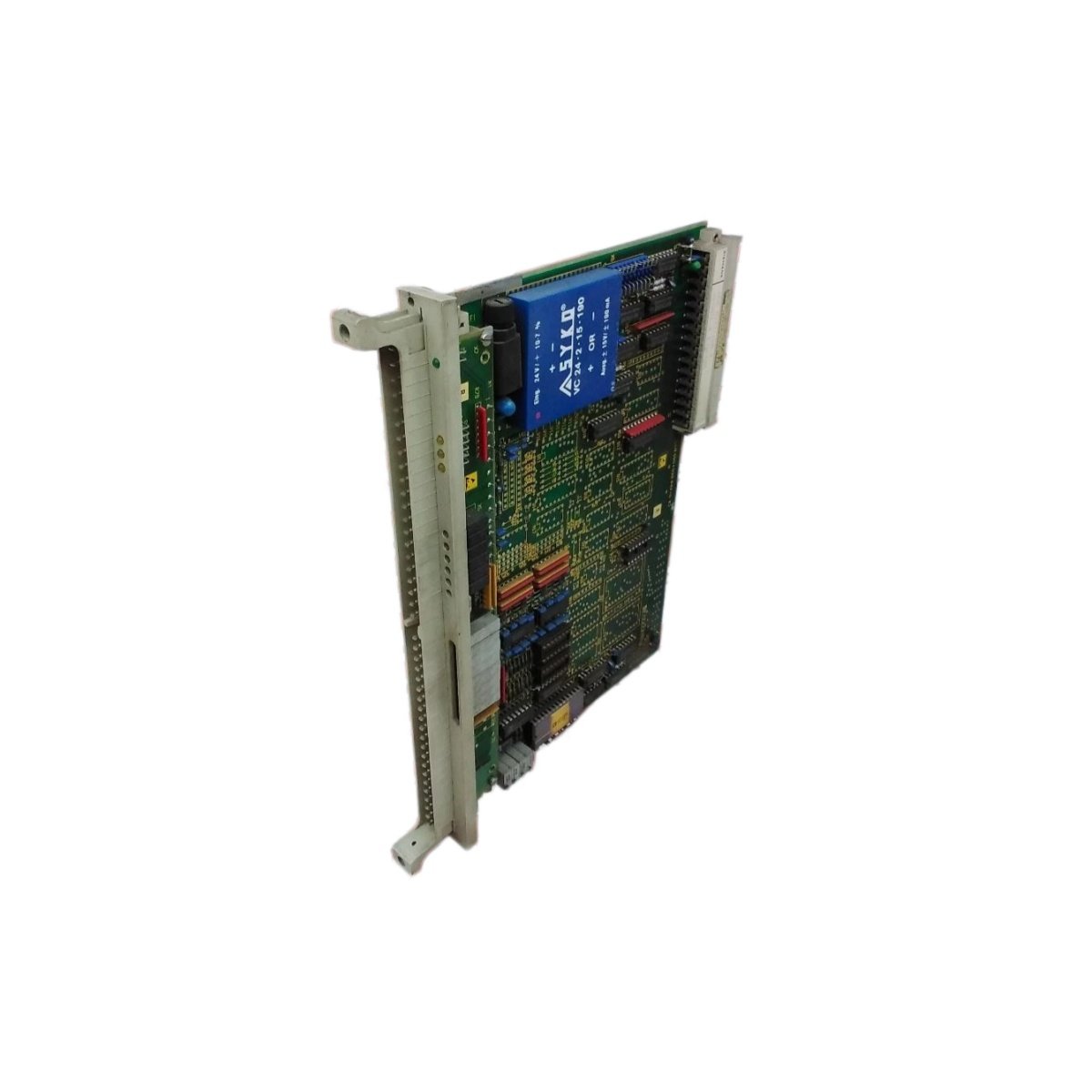

The 6ES5241-3DA11 delivers ultrasonic measurement capabilities within the Siemens SIMATIC S5 automation platform. This module detects distances and object positions without physical contact. Engineers choose it for applications demanding precise non-contact sensing in industrial settings.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Ultrasonic Measurement Module |
| Compatibility | Siemens SIMATIC S5 PLC Systems |
| Module Width | Single-width compact housing |
| Weight | Approximately 0.5 kg |
| Interface Type | PLC backplane bus connection |
| Measurement Principle | Ultrasonic time-of-flight detection |
| Sensing Range | Short to medium distance measurement |
| Output Signals | Digital distance and position data |
| Power Supply | Via S5 backplane power rail |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Mounting Style | Standard S5 rack mounting |
Functional Overview
This module emits ultrasonic pulses and measures return echo timing. Consequently, it calculates distances to targets with consistent repeatability. The 6ES5241-3DA11 handles measurement tasks where optical sensors struggle. Therefore, plant operators gain reliable data in dusty or dark conditions.
Integration and Compatibility
The 6ES5241-3DA11 fits directly into standard S5 mounting racks. Additionally, it transfers measurement values to the CPU through the backplane bus. This configuration reduces external wiring and simplifies system design. Furthermore, the module maintains stable readings across varying industrial environments.
Typical Applications
Manufacturers deploy this module in level monitoring, positioning, and object detection tasks. Moreover, it suits applications requiring non-contact measurement reliability. The 6ES5241-3DA11 excels where conventional sensors fall short.
Details
| Weight | 0.72 kg |
|---|---|
| Dimensions | 325 × 168 × 8 mm |
