High-Precision Positioning for S5 Systems

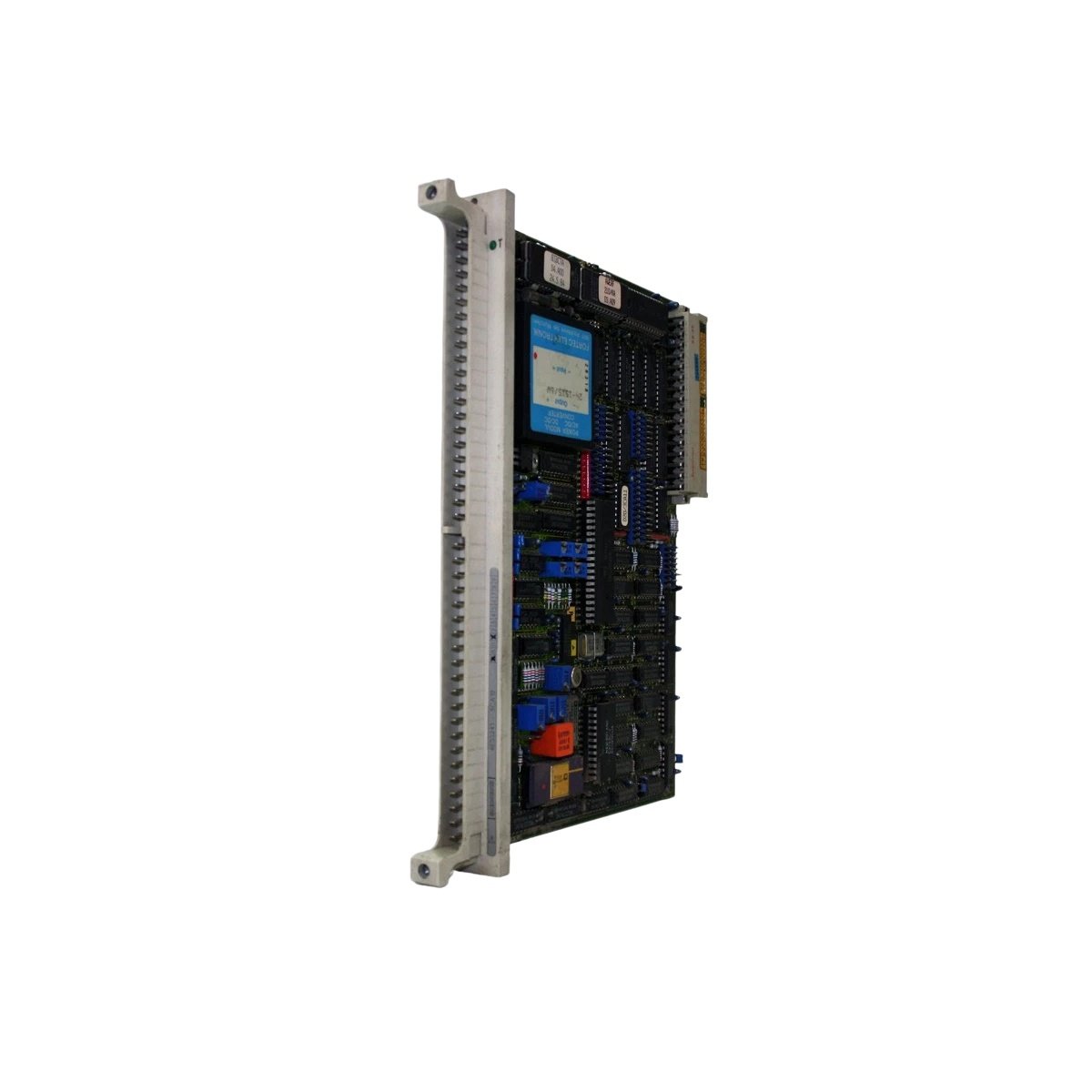

This dedicated positioning module enables accurate motion control for servo and stepper drives. The 6ES5241-3CA12 handles single-axis positioning tasks with exceptional precision and repeatability. It interfaces directly with incremental encoders for real-time position feedback. The module supports multiple positioning modes, including absolute, relative, and incremental moves. Its compact design occupies a single slot in the SIMATIC S5 rack.

Technical Specifications and Physical Attributes

The 6ES5241-3CA12 operates on a 5 V DC supply from the S5 backplane. It provides a 16-bit position resolution for high-accuracy applications. The module also offers 8 digital inputs and 8 digital outputs for limit switches and control signals. For communication, it uses a 48-pin front connector for all field wiring. The unit measures 232 mm in depth and 25 mm in width . It weighs approximately 0.5 kg . The 6ES5241-3CA12 supports a maximum encoder frequency of 100 kHz. Its operating temperature ranges from 0 °C to 60 °C for industrial reliability.

Configuration and Application Guidance

This module controls positioning tasks in packaging, handling, and machine tool applications. First, insert the 6ES5241-3CA12 securely into an available S5 rack slot. Then, connect the encoder wiring to the 48-pin front connector with proper shielding. For the outputs, wire the control signals to the drive amplifiers accordingly. Additionally, configure the positioning parameters using the STEP 5 software. The 6ES5241-3CA12 supports software limit switches for enhanced safety. Its robust design ensures reliable performance in demanding manufacturing environments.
