Core High-Speed Positioning and Counting Capabilities

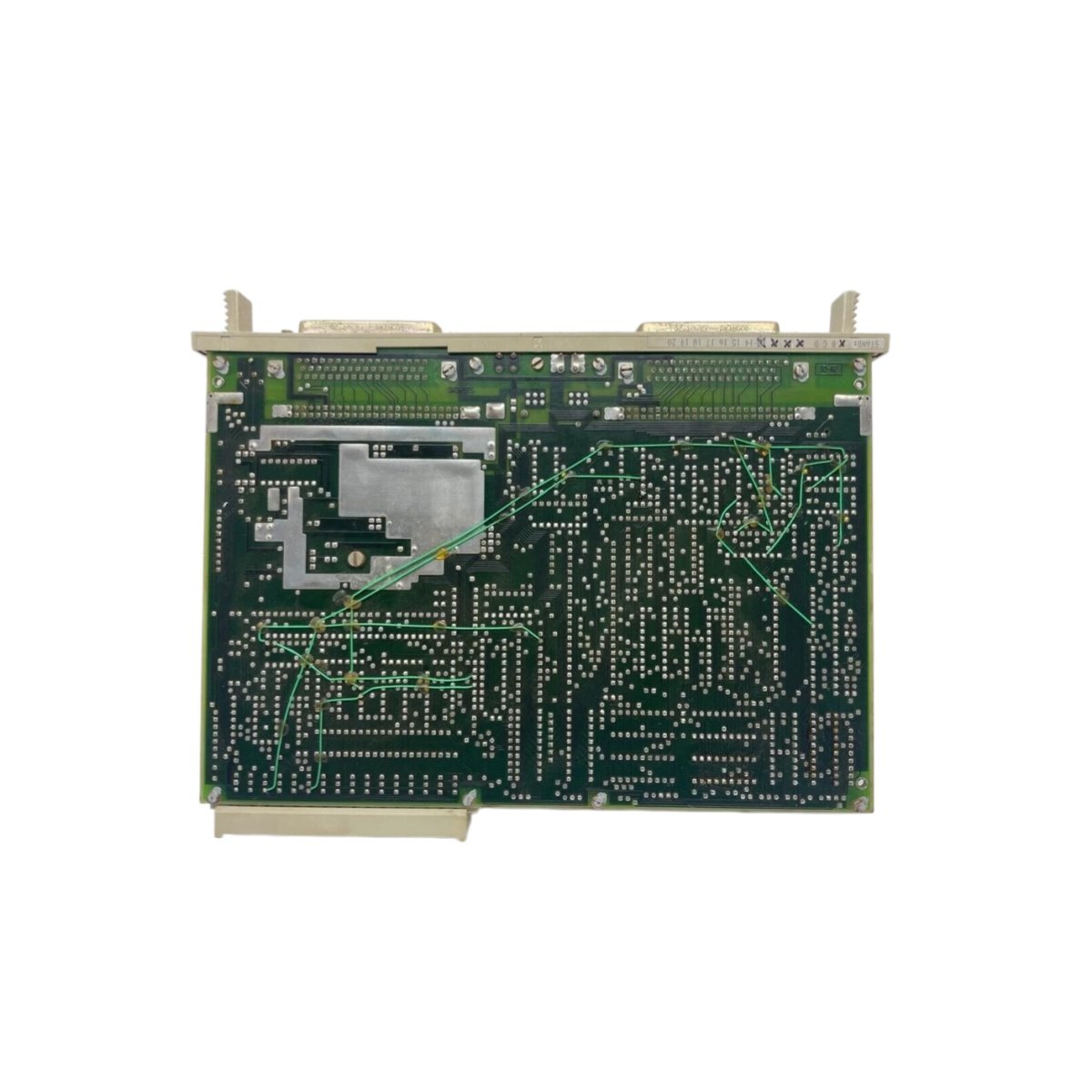

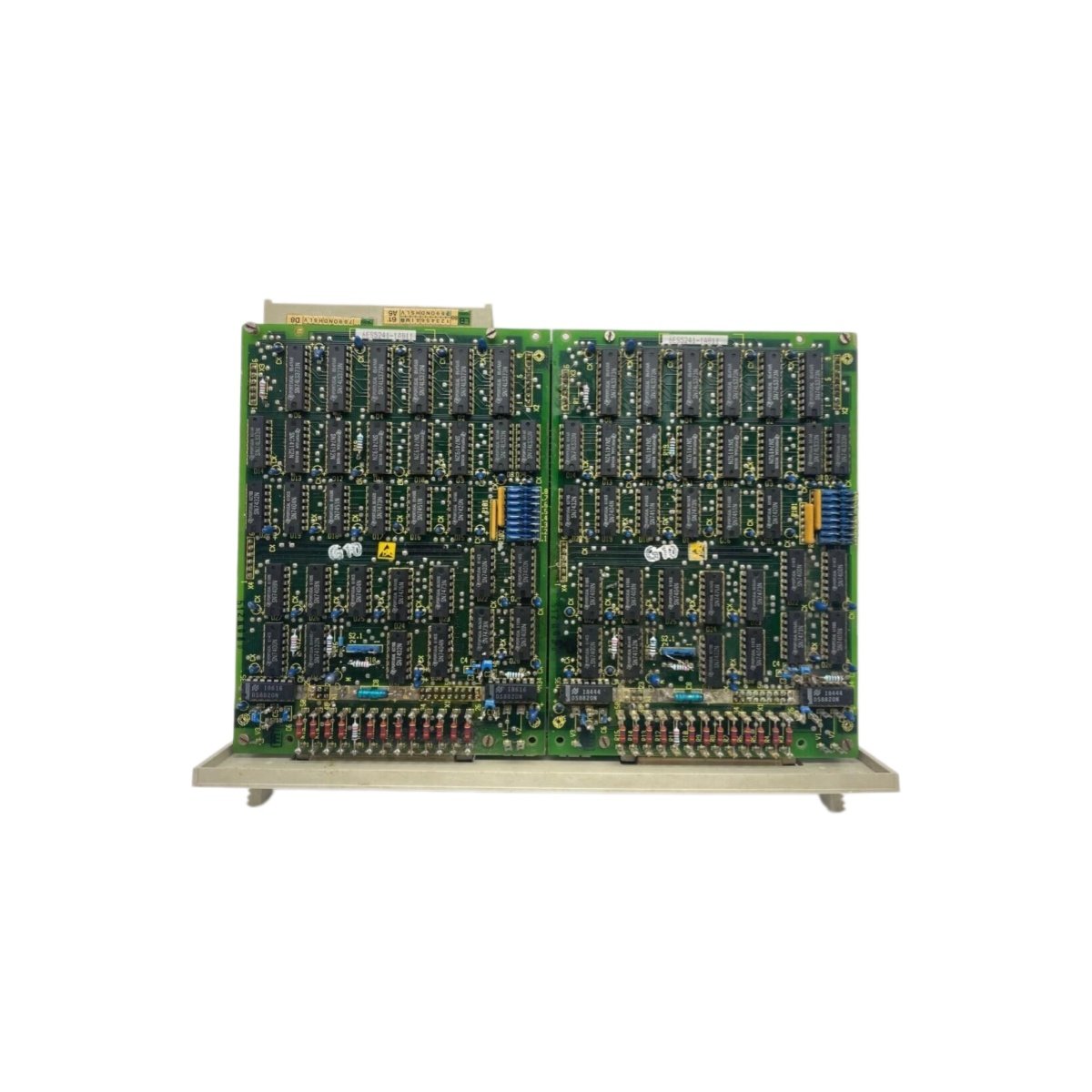

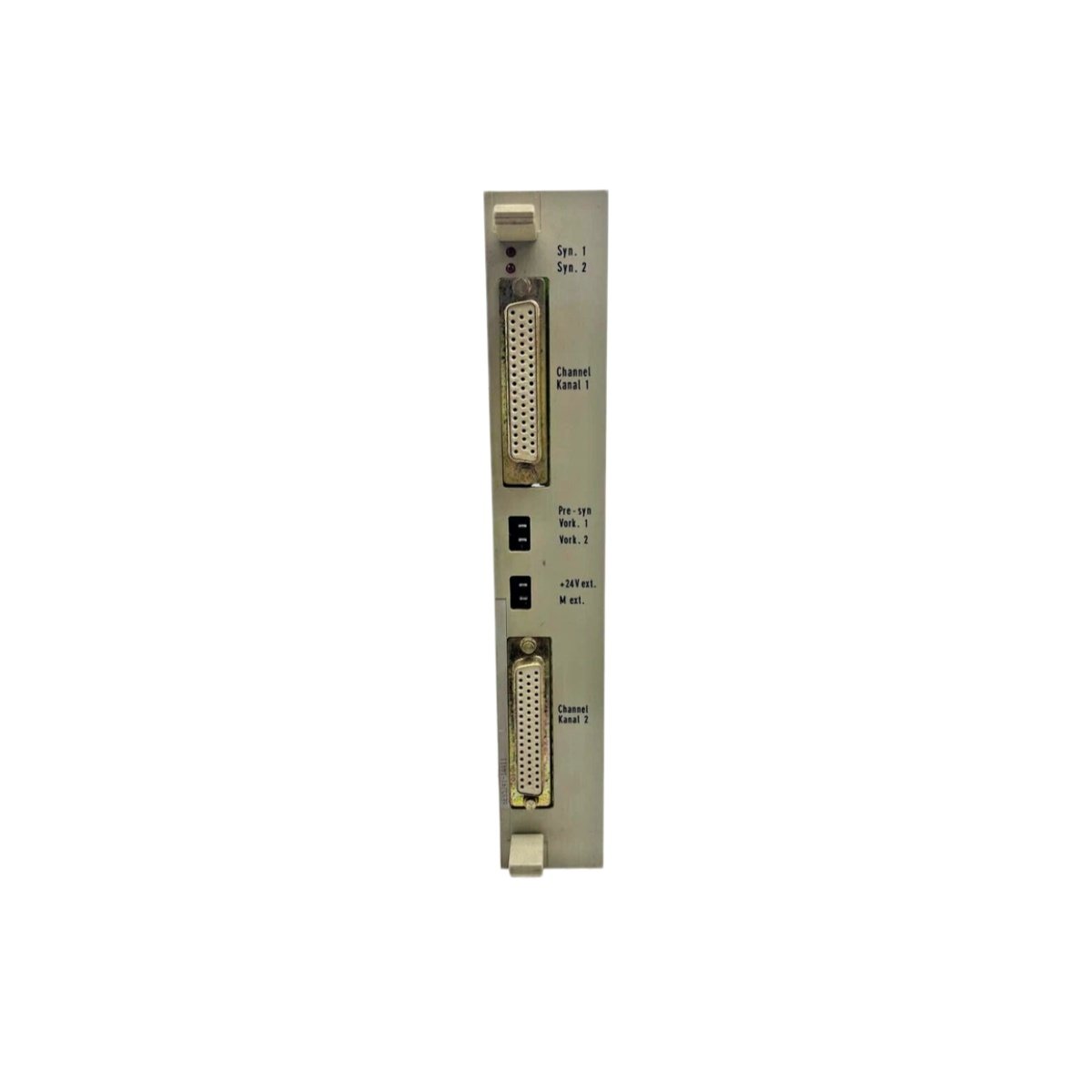

The Siemens 6ES5241-1AB11 is an IP241 positioning and counting module for the SIMATIC S5 programmable logic controller family . This module provides a versatile interface for high-speed positioning and counting applications . It handles encoder and counter signals for precise motion control tasks . Consequently, it is an essential component for automation systems requiring accurate positioning without burdening the central CPU.

Designed for High-Speed Applications and Flexible Integration

The IP241 includes two high-speed counter inputs and supports both incremental encoders and proximity switches . It offers a counting range from -32,768 to +32,767 (16-bit) and operates with a maximum input frequency of 100 kHz on the counter channels . Furthermore, its modular design allows for easy integration into existing S5 configurations, facilitating straightforward upgrades and maintenance.

Technical Specifications and Physical Attributes

This module provides a set of digital outputs for direct control of actuators based on positioning or counting results.

Application in Legacy Automation Systems

Engineers use this module to implement high-speed counting and precision positioning in various industrial applications. It is particularly well-suited for material handling, packaging, and simple positioning tasks. The Siemens 6ES5241-1AB11 remains a valuable solution for maintaining and supporting existing SIMATIC S5 installations.
