Scalable I/O Expansion for S5 Systems

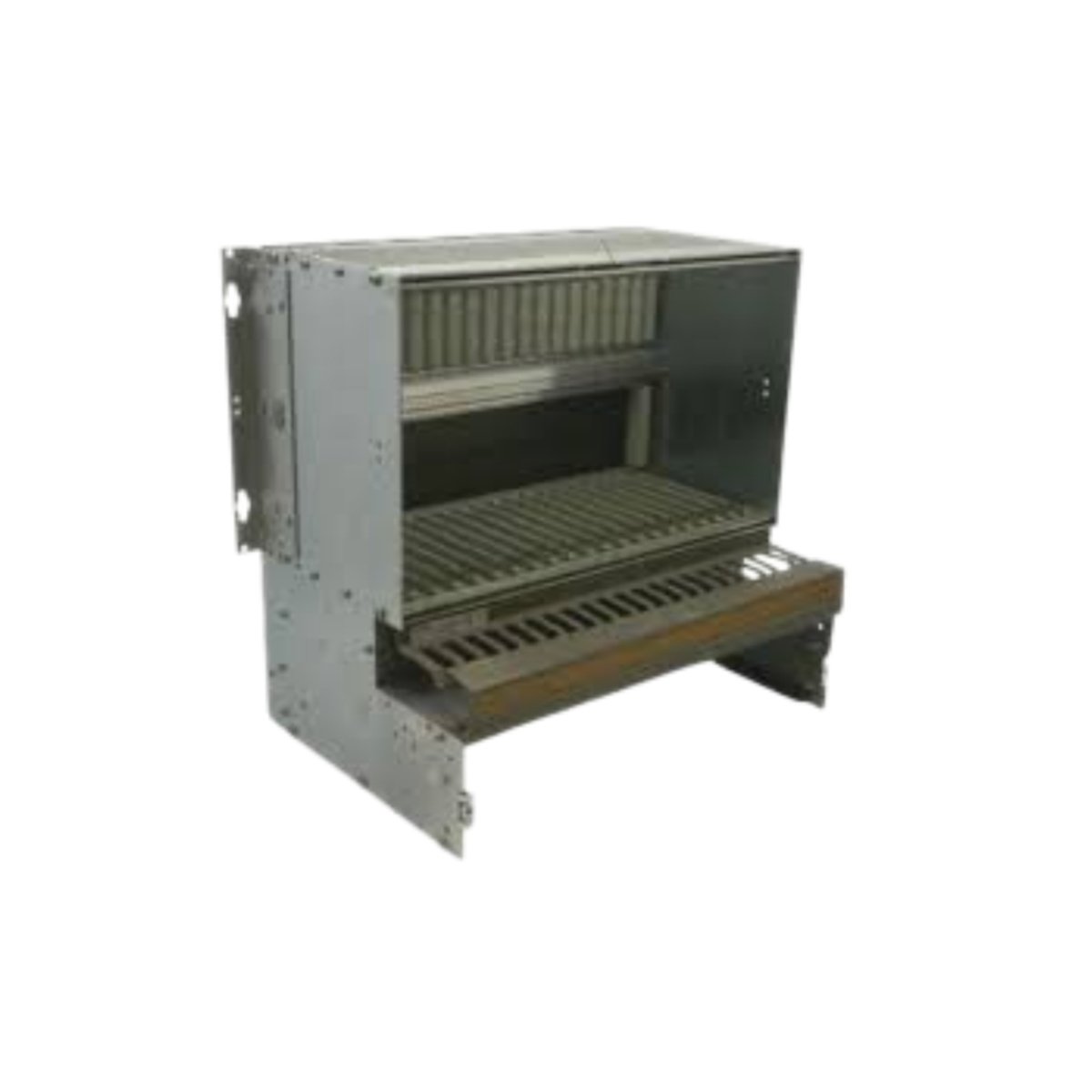

This 21-slot expansion unit significantly increases the I/O capacity of SIMATIC S5 controllers. The 6ES5183-3UA11 accommodates up to 21 modules, offering exceptional flexibility for large applications. Its solid chassis construction ensures stable and reliable operation, even in demanding industrial environments. The unit integrates with the S5 system through a dedicated expansion cable, providing seamless communication.

Technical Specifications and Physical Attributes

The 6ES5183-3UA11 measures approximately 482 mm in width, 262 mm in height, and 220 mm in depth. It weighs about 8.5 kg, providing a sturdy base for all installed modules. The expansion unit requires a separate 24 V DC power supply for its operation. It also includes a built-in bus termination for signal integrity. Furthermore, the 6ES5183-3UA11 supports both analog and digital modules, simplifying system upgrades. Its operating temperature ranges from 0 °C to 60 °C, ensuring reliable performance across various conditions.

Installation and Application Guidance

This expansion unit provides the foundation for large-scale S5 installations. First, mount the 6ES5183-3UA11 securely in a 19-inch cabinet or rack. Then, connect the expansion cable from the main CPU rack to the unit. For power, wire the 24 V DC supply to the designated terminals. Install the required modules into any of the 21 slots for flexible system growth. The 6ES5183-3UA11 suits applications in automotive, material handling, and process industries requiring extensive I/O.
