Product Overview

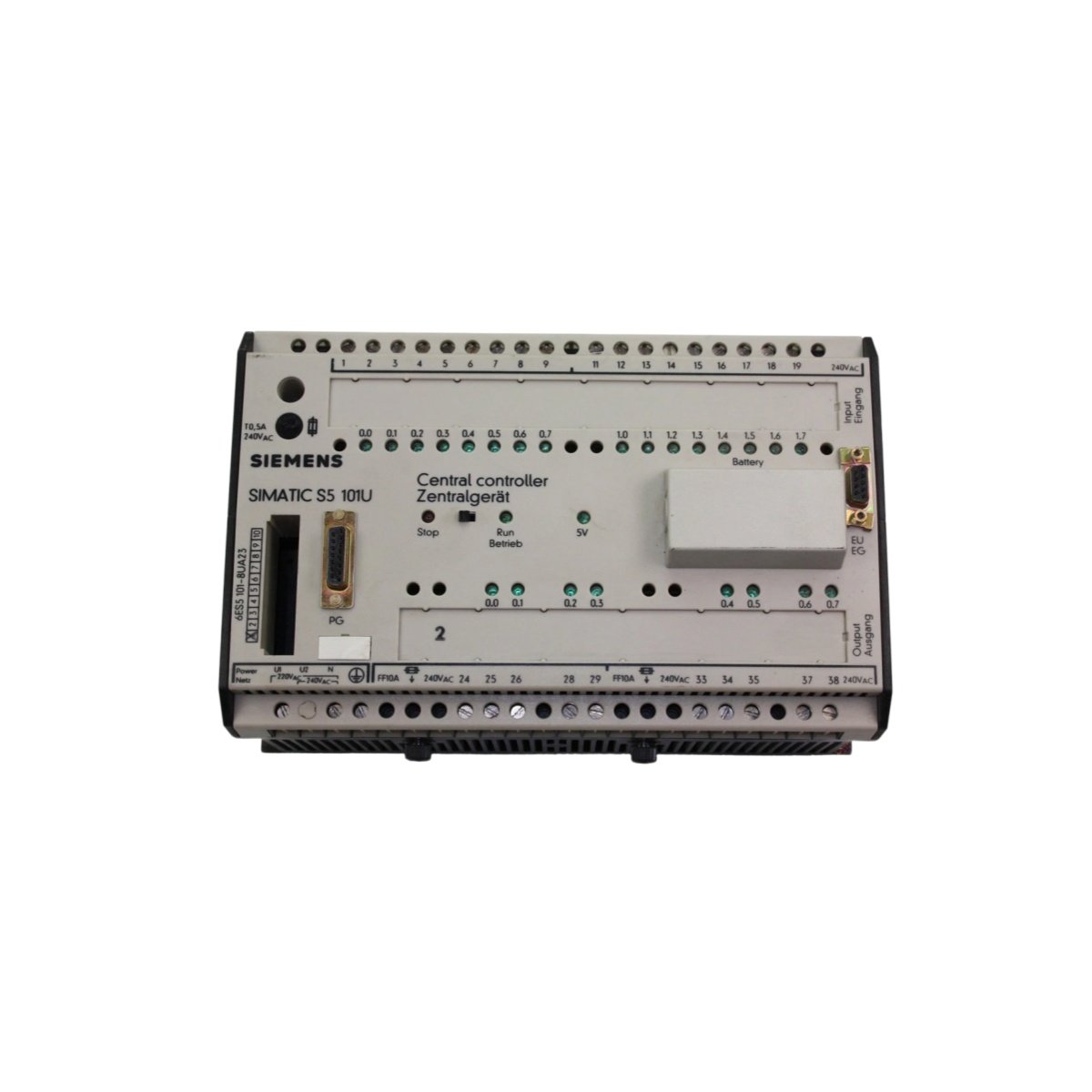

The Siemens 6ES5101-8UA23 central controller serves as the core processing unit for the SIMATIC S5 automation family. This module executes user programs and manages all I/O operations within the system. It interfaces with distributed peripherals through the built-in bus interface. The controller features a compact design that fits directly into the standard S5 rack.

Technical Specifications

Processing Capabilities

The Siemens 6ES5101-8UA23 handles up to 256 digital inputs and 256 digital outputs effectively. It also manages 64 analog inputs and 64 analog outputs for process applications. The processor executes 1,000 logic statements within 0.5 milliseconds on average. This speed supports most discrete manufacturing and continuous process control requirements adequately.

Memory Architecture

This central controller includes 8 kilobytes of integrated RAM for user program storage. You can expand the memory up to 32 kilobytes using a plug-in memory module. The unit retains program data during short power interruptions through capacitor-backed storage. A lithium battery maintains the memory content during extended downtime periods as well.

Programming and Configuration

You program this controller using SIMATIC STEP 5 software with Statement List, Ladder, or CSF. The Siemens 6ES5101-8UA23 supports online program modification without stopping system operation. It includes a built-in programmer port for direct connection to a programming device. The module also stores diagnostic information for troubleshooting system faults efficiently.

Communication Interface

The 15-pin D-sub connector provides serial communication for programming and data exchange. This interface supports both TTY current loop and RS-232 physical layer standards. You can connect the controller to HMIs, printers, or higher-level management systems. The communication settings adjust through software parameters without hardware modifications.

Power Consumption and Thermal Performance

This central controller draws 200 milliamperes from the 5 VDC backplane supply. It dissipates approximately 3.0 watts of heat during continuous full-load operation. The module uses natural convection cooling without requiring a built-in fan. Therefore, you can install it in sealed enclosures without airflow concerns.

Installation and Environmental Limits

The Siemens 6ES5101-8UA23 fits into any standard S5 rack slot designated for CPU modules. It operates reliably between 0°C and 60°C ambient temperature ranges. The unit withstands humidity levels from 5% to 95% without condensation damage. It also meets all relevant industrial standards for electromagnetic compatibility and safety approvals.
