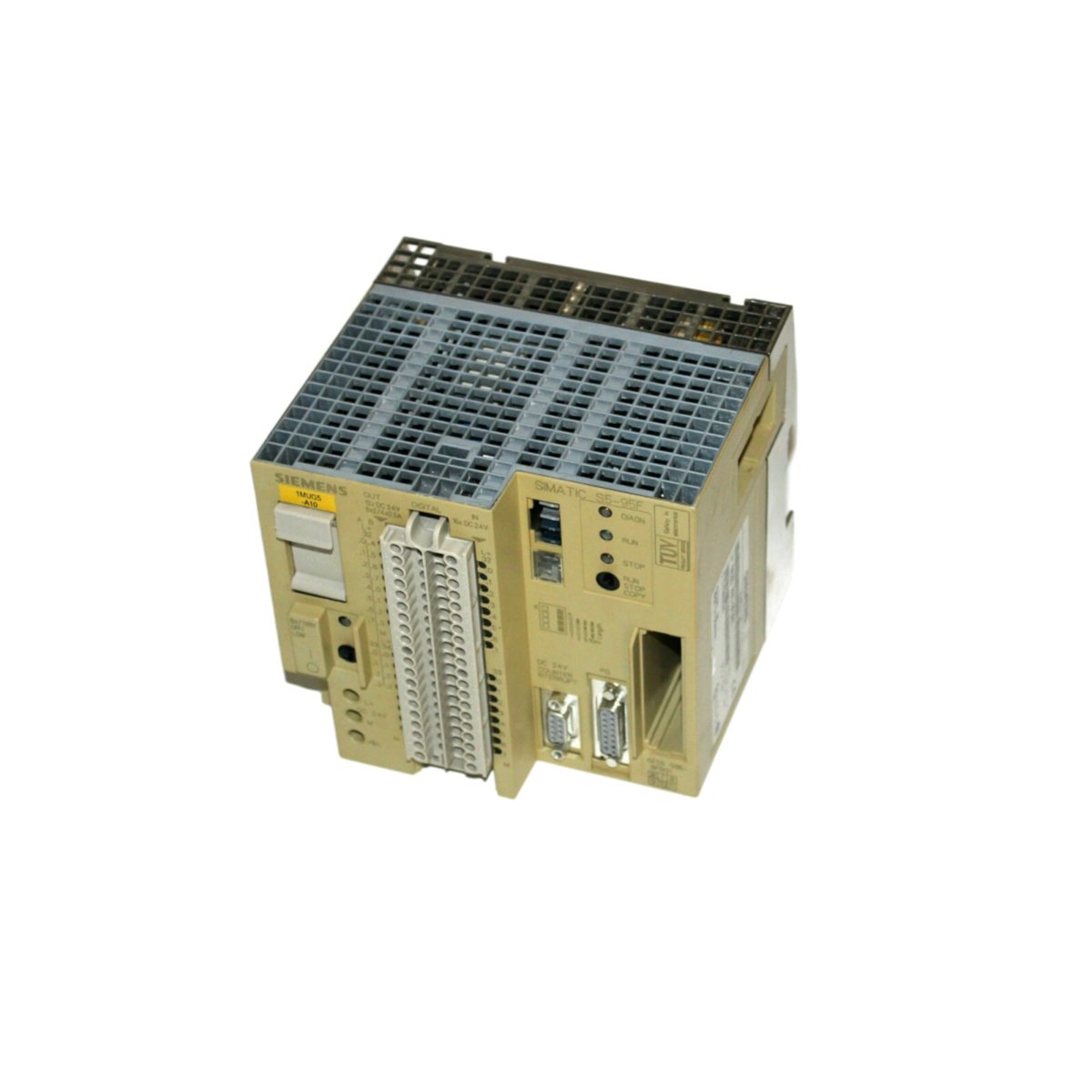

The Siemens 6ES5095-8FB01 subunit provides a compact mounting platform within SIMATIC S5 automation platforms. Engineers install this unit to hold essential control components in tight cabinet spaces. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

This subunit occupies a defined space inside a compatible SIMATIC S5 rack or cabinet. It measures roughly 200 mm long, 150 mm wide, and 80 mm high, while it weighs about 1.0 kg. Moreover, the chassis carries mounting rails and backplane connections.

Functional Capabilities and System Integration

The subunit holds control modules while it routes signals through integrated backplane connections. Meanwhile, the mounting rails secure boards against vibration and mechanical stress. Guide slots align each module, therefore technicians avoid incorrect placement.

Additionally, the design allows expansion through additional subunits and bus cables. As a result, installers scale systems as production requirements grow. Clear labeling helps operators identify module positions during troubleshooting. The open architecture also supports natural convection cooling.

Installation and Maintenance Guidelines

Technicians should secure the subunit to a cabinet frame before they insert modules. Afterward, verifying backplane connections confirms reliable communication across the system. Periodic inspection of mounting screws prevents loosening from machine vibration. Finally, consult Siemens documentation for slot assignments and compatible module configurations.
