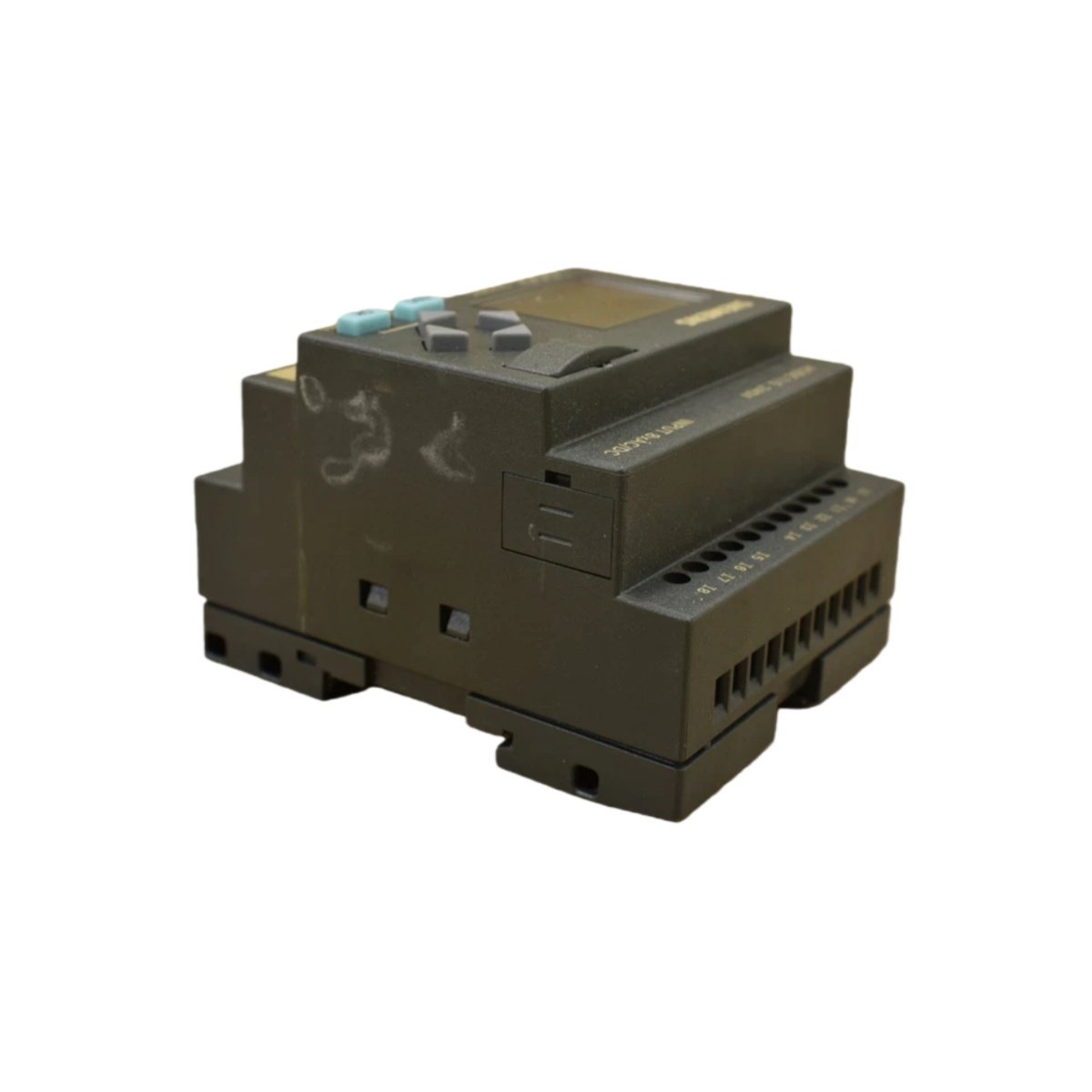

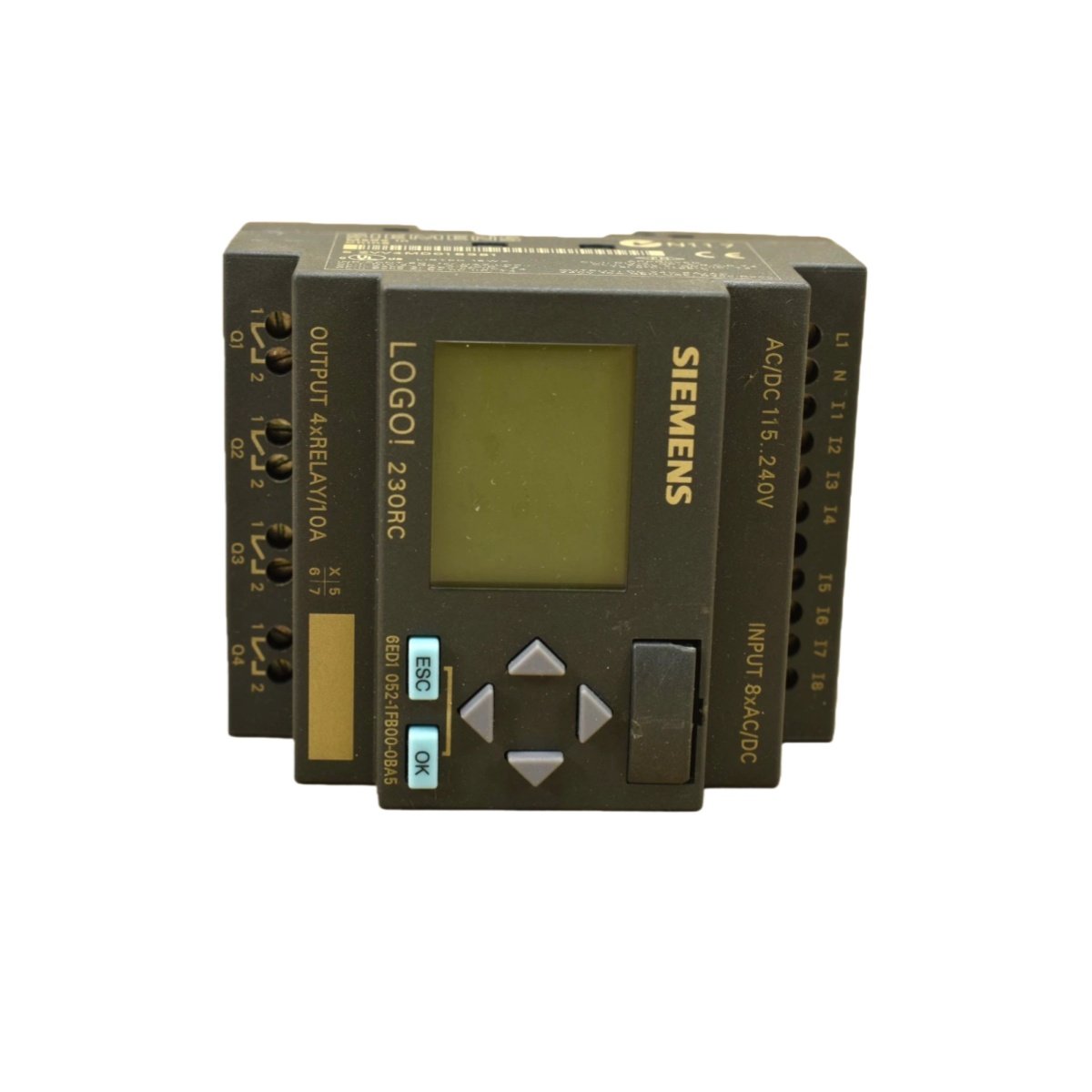

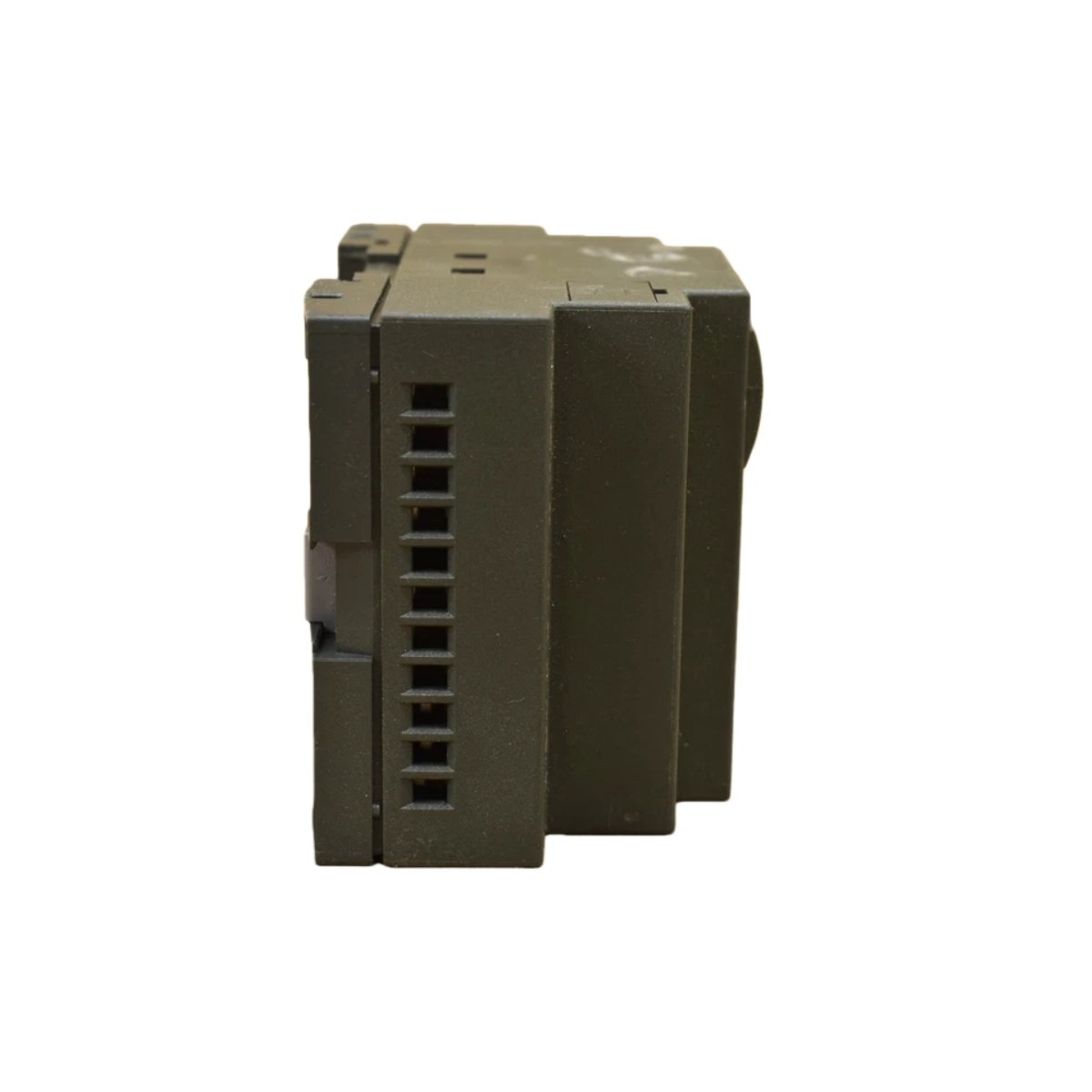

The Siemens 6ED1052-1FB00-0BA5 LOGO! 230RC Logic Module delivers dependable control for compact industrial automation, building management, and machine applications. It combines programmable logic functions with integrated inputs and outputs, helping users simplify control tasks while improving operational efficiency.
Moreover, the compact enclosure installs easily inside standard control panels and electrical cabinets without occupying unnecessary installation space. Engineers can configure automation sequences quickly because the module supports intuitive programming and flexible system expansion.
Key Features
The 6ED1052-1FB00-0BA5 provides reliable logic control for small automation systems requiring consistent performance and straightforward configuration. Additionally, the integrated relay outputs support direct switching for industrial loads while maintaining stable control accuracy.
Its optimized electronic architecture enhances processing efficiency, and industrial-grade components improve long-term operational reliability. Consequently, maintenance becomes easier, and production equipment maintains dependable performance during continuous operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ED1052-1FB00-0BA5 |
| Product Category | LOGO! 230RC Logic Module |
| Series | Siemens LOGO! |
| Supply Voltage | 115–240 V AC/DC |
| Digital Inputs | 8 digital inputs |
| Relay Outputs | 4 relay outputs |
| Program Memory | Integrated non-volatile memory |
| Communication Interface | Programming interface for LOGO! system |
| Mounting Method | 35 mm DIN rail mounting |
| Approximate Dimensions | 90 × 71.5 × 55 mm |
| Approximate Weight | 0.22 kg |
| Internal Components | Microprocessor, relay circuits, memory chip, power regulation circuit, communication controller |
| Energy Storage | High-reliability electrolytic and ceramic capacitors for voltage stabilization |
| Display | Integrated LCD display with operating keys |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Typical Applications | Building automation, pump control, lighting systems, HVAC, conveyor systems, machine automation |
Typical Applications
The 6ED1052-1FB00-0BA5 supports compact automation projects across manufacturing facilities, commercial buildings, water treatment systems, and packaging equipment. Furthermore, it manages switching sequences efficiently while coordinating sensors, relays, and control devices through programmable logic.
Product Advantages
The integrated LCD display simplifies commissioning and troubleshooting while allowing operators to monitor operating status directly from the module. Meanwhile, the relay outputs provide flexible load control without requiring additional switching components for many applications.
In addition, the compact design reduces installation space, and the built-in memory preserves user programs during power interruptions. Therefore, engineers can improve system reliability while minimizing maintenance requirements and installation costs.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
