Functional Overview

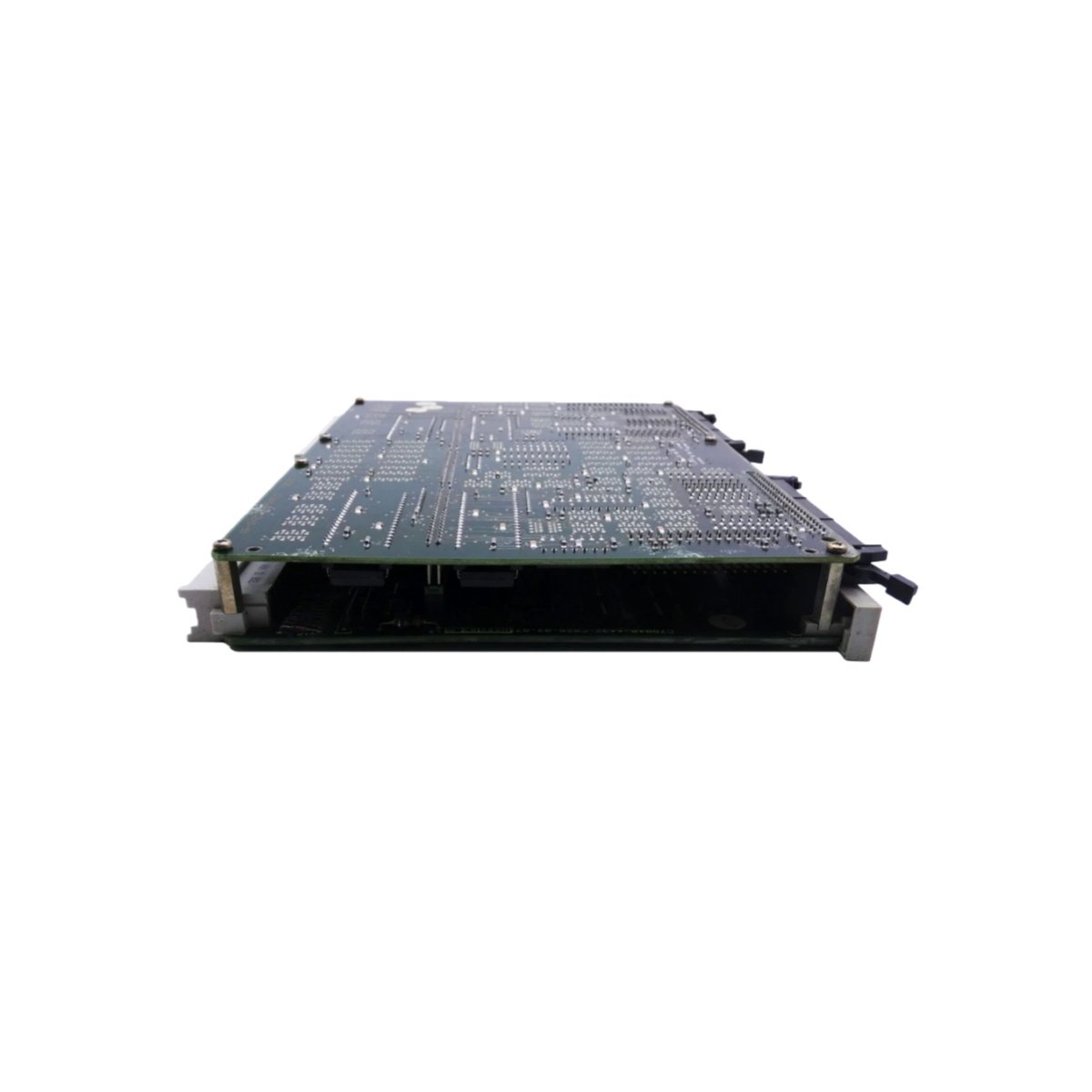

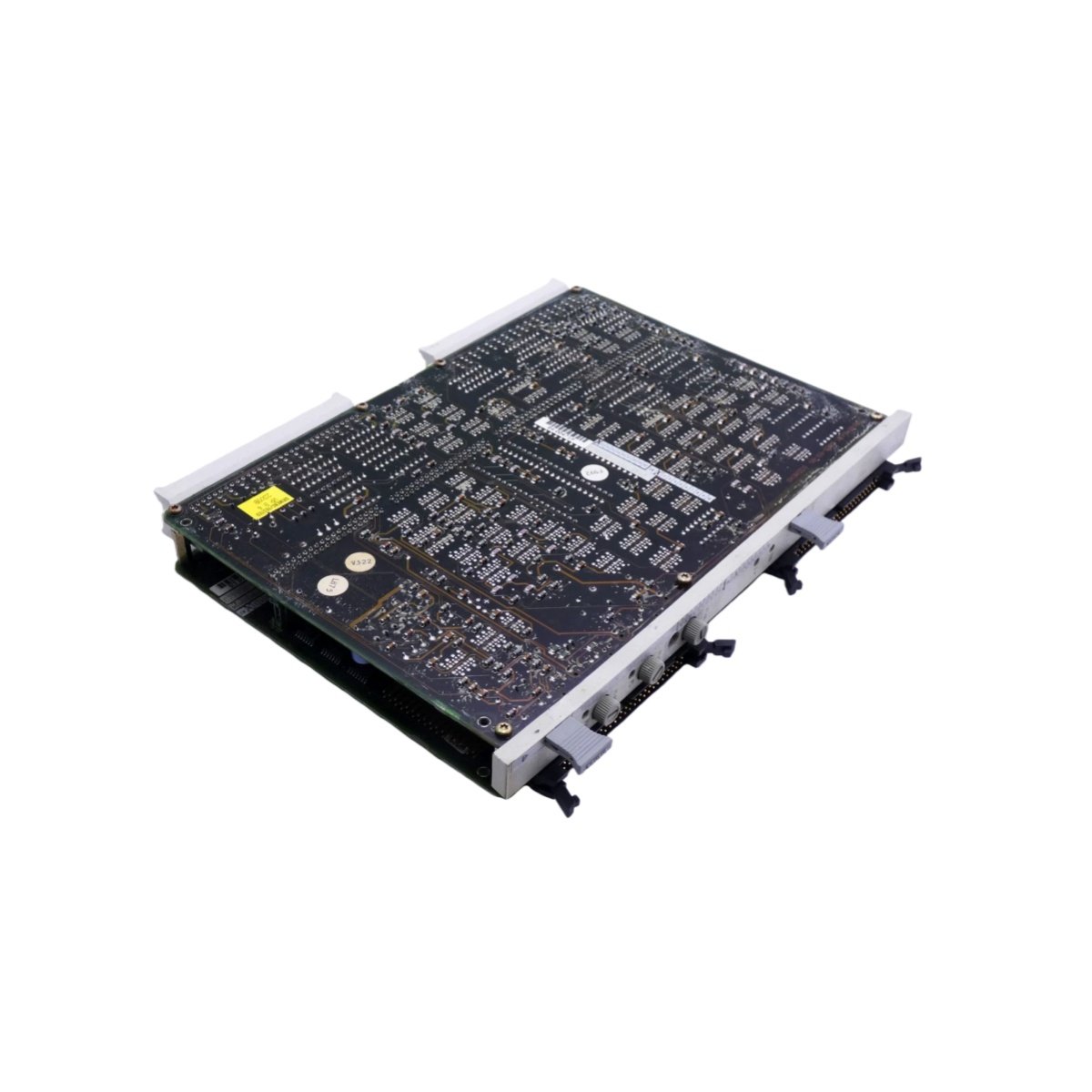

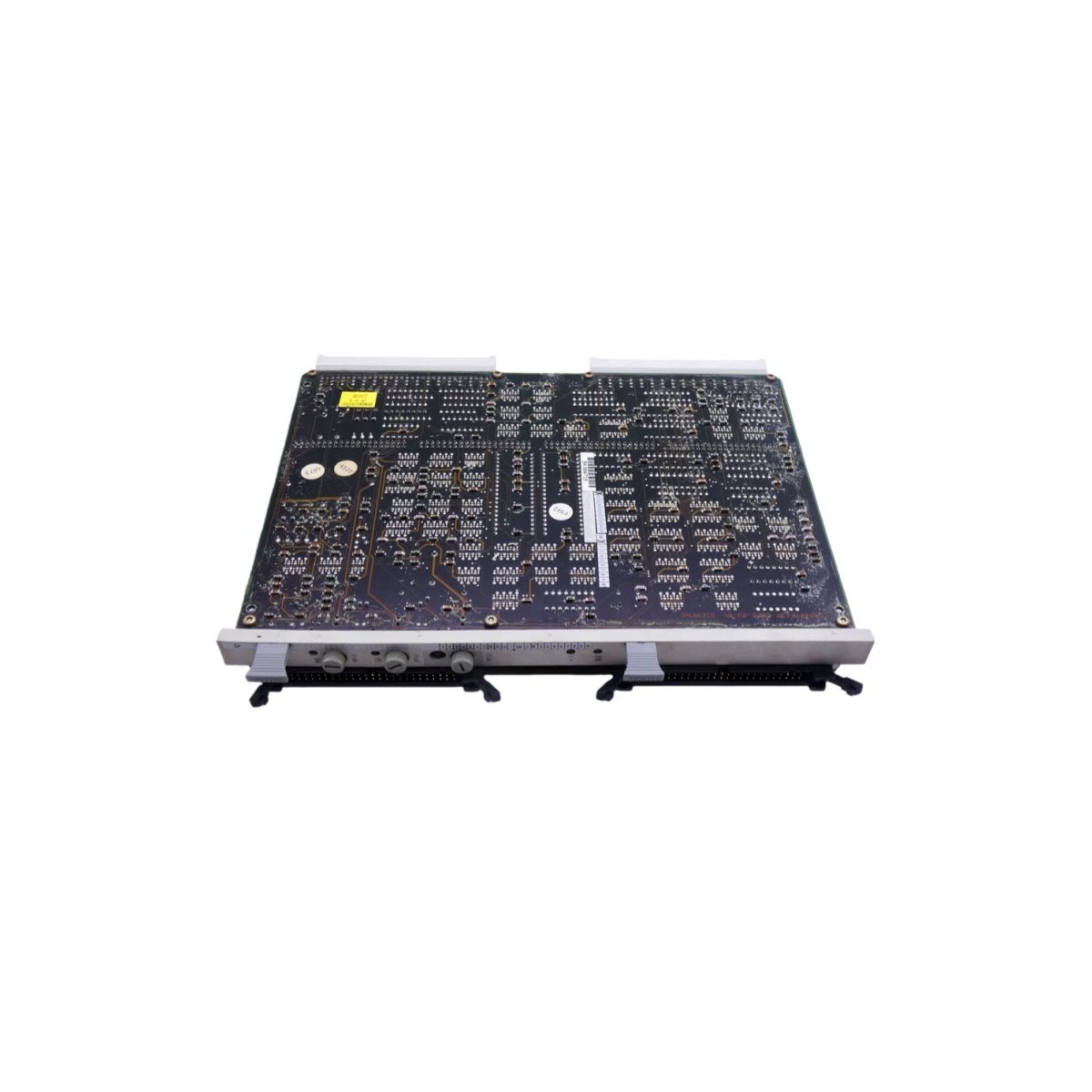

The Siemens 6DS1144-8AA operates as a specialized comparator module for redundant I/O bus systems. This module monitors two independent bus signals and generates a comparison output. It ensures data integrity in safety-critical automation applications. Power plants and chemical facilities utilize this module for fail-safe control operations.

Technical Specifications

The 6DS1144-8AA measures 254 mm in length and 177.8 mm in width. Its standard Eurocard format fits Siemens TELEPERM M racks. The module weighs approximately 0.6 kilograms. It draws 150 mA from the +5V DC and 100 mA from the ±15V DC supplies.

Bus Monitoring and Comparison Logic

This module continuously compares two redundant I/O bus data streams. The onboard ASICs handle the 24-bit parallel bus signals from each channel. A digital window comparator detects any discrepancy between the two buses. The comparison cycle completes within 1 microsecond for rapid fault detection. Four optocouplers provide electrical isolation between the bus interfaces. This isolation prevents ground loops from affecting comparison accuracy.

Output and Fault Reporting

The Siemens 6DS1144-8AA outputs a fault signal through a changeover relay contact. This relay activates whenever a bus mismatch occurs. The relay contact handles 2 A at 24V DC for direct alarm signalling. A 47 μF tantalum capacitor maintains the comparison state during brief power drops. Three front-panel LEDs display the status of Bus A, Bus B, and any mismatch condition. These LEDs enable quick visual verification of bus health.

Installation and System Integration

Installing the 6DS1144-8AA requires one slot in the TELEPERM M rack. The module connects to the backplane via its 48-pin DIN connectors. You wire the output relay to the safety control system’s input. The module automatically starts comparing upon power application. It operates reliably between 0°C and 60°C ambient temperatures. Proper bus cable shielding minimizes noise-induced false trips.

Reliability and Safety Features

The Siemens 6DS1144-8AA enhances system safety through rigorous bus validation. The comparator design uses hardware-based logic for deterministic response. The relay output provides a failsafe mechanism for external systems. Regular testing of the comparator function confirms proper operation.
