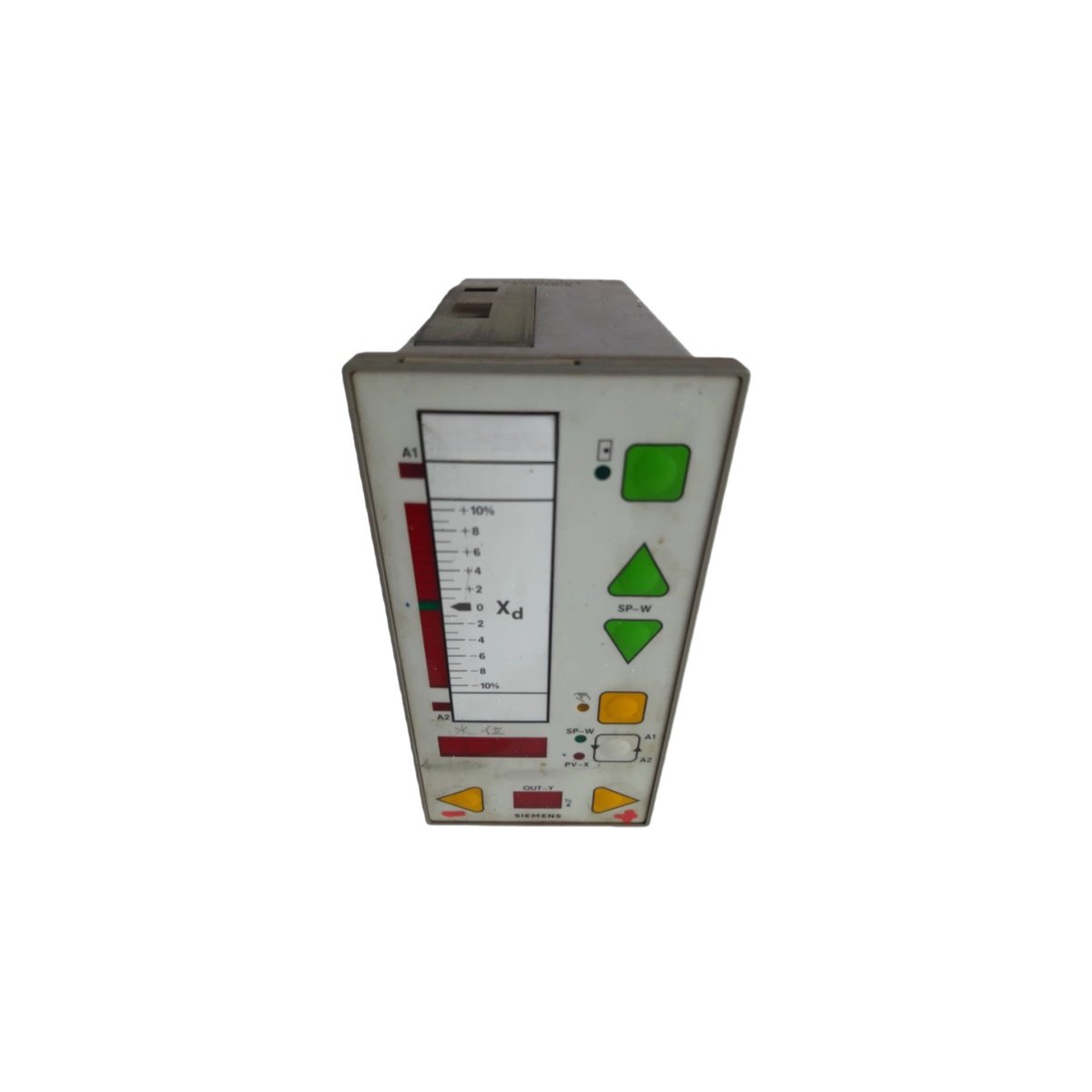

Advanced PID Control and Process Regulation
This panel-mount process controller provides precise PID regulation for industrial process variables. It accepts universal inputs from thermocouples, RTDs, and standard analog signals. The Siemens 6DR2004-1A features a dual-display interface for simultaneous viewing of setpoint and process values. It supports autotuning functionality for optimizing control parameters automatically. The controller delivers a 4–20 mA analog output for driving final control elements. It also includes two relay outputs for alarm or limit switching duties.

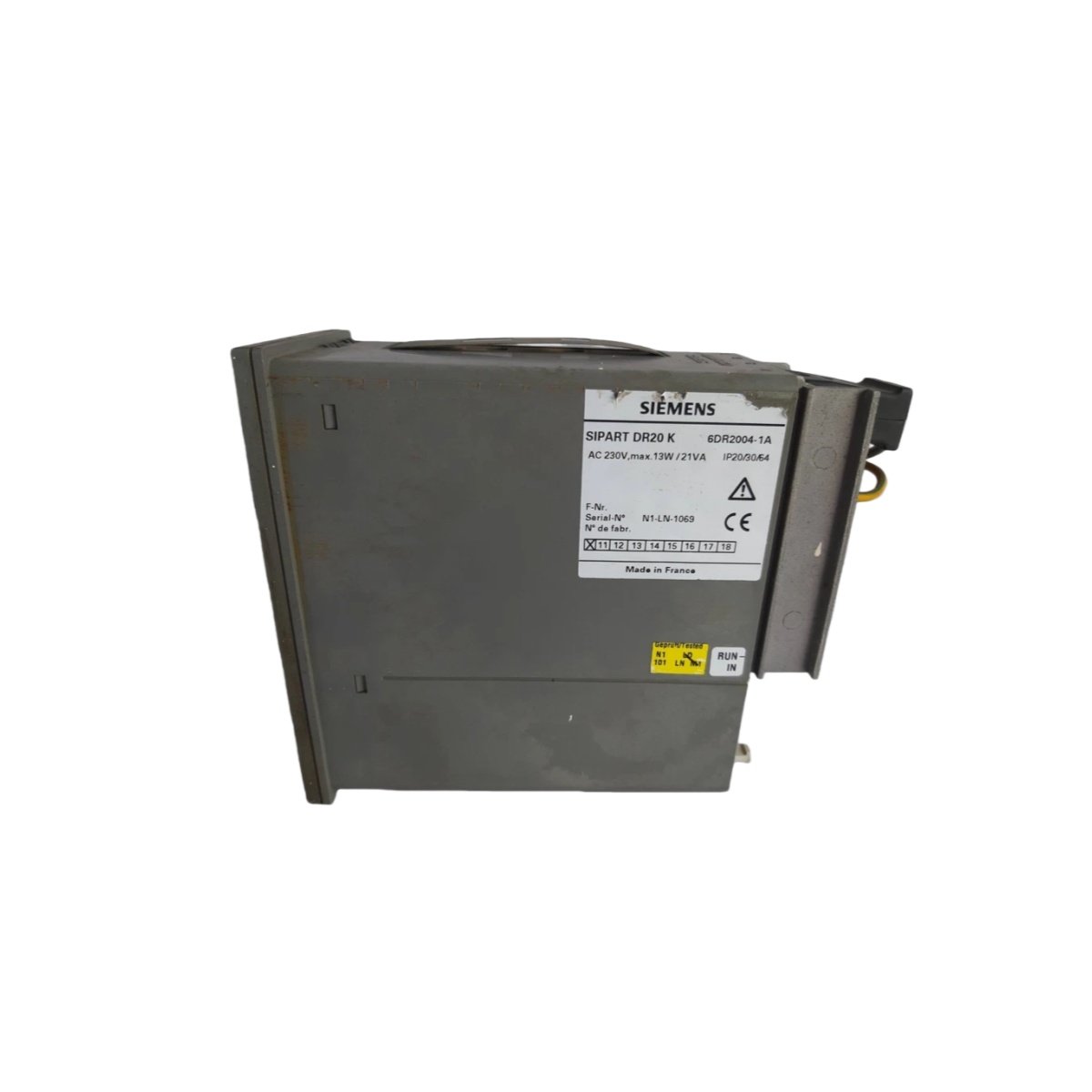

Physical Dimensions and Panel Installation
The unit measures 48 mm in width, 96 mm in height, and 110 mm in depth behind the panel. It weighs approximately 0.35 kg with all mounting brackets and terminal covers attached. The 6DR2004-1A fits into a standard 48 × 96 mm panel cutout. Its compact DIN-sized housing suits space-constrained instrument panels perfectly. This standard format enables quick replacement of existing controllers.

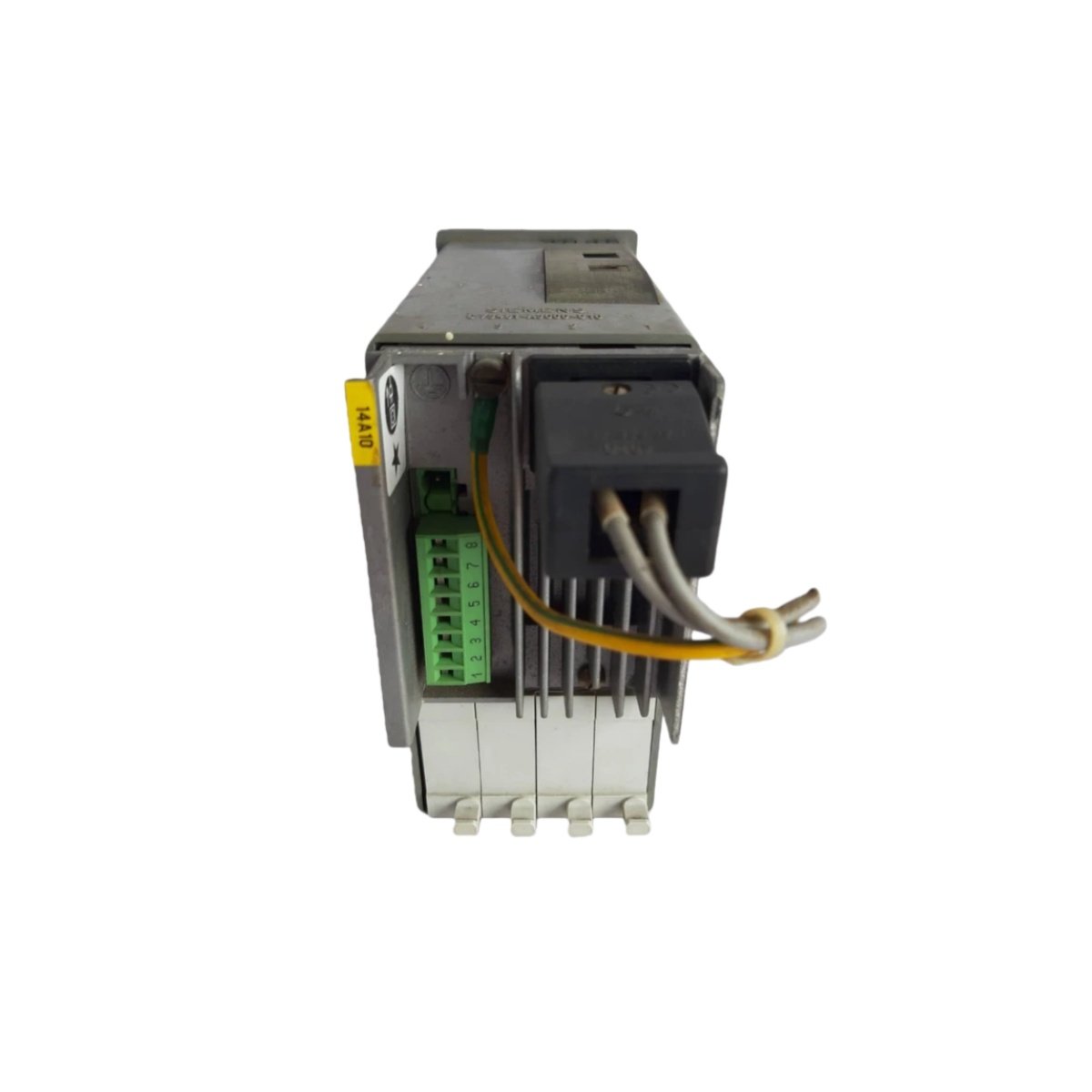

Interface Connectivity and Input/Output Configuration
A rear-mounted screw terminal block accommodates all field wiring connections conveniently. The Siemens 6DR2004-1A accepts a wide range of input types and signal ranges. It provides one analog output and two relay outputs for flexible control strategies. The controller includes a RS-485 communication port for integration with supervisory systems. Front-panel buttons and LEDs enable easy configuration and status monitoring.
Internal Architecture and Energy Storage Elements
The PCB contains a microprocessor, signal conditioning circuits, and isolated power supply sections. The 6DR2004-1A uses a 220 µF capacitor for transient energy storage during power fluctuations. It stores configuration parameters and tuning constants in non-volatile EEPROM memory. The controller includes a built-in power supply for direct connection to AC mains. Input circuits feature galvanic isolation from the output circuits for enhanced noise immunity.
| Parameter | Specification |
|---|---|
| Model | 6DR2004-1A |
| Type | Panel-Mount Process Controller |
| Input Types | TC (K, J, T, E, R, S, B, N), RTD (PT100), 4–20 mA, 0–10 V |
| Control Algorithm | PID with autotuning |
| Analog Output | 4–20 mA (isolated) |
| Relay Outputs | 2 × SPST, 2 A at 250 V AC |
| Display | Dual 4-digit LED |
| Communication | RS-485 (Modbus RTU) |
| Supply Voltage | 100–240 V AC, 50/60 Hz |
| Power Consumption | ≤10 VA |
| Panel Cutout | 48 × 96 mm |
| Dimensions (W×H×D) | 48 × 96 × 110 mm |
| Weight | 0.35 kg |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | –20 to +70 °C |
| Front Protection | IP65 (when mounted) |
| Energy Storage | 220 µF capacitor |
| Isolation | 1500 V AC (input/output) |
Recommended Installation and Configuration Practices
Mount the Siemens 6DR2004-1A securely into the panel cutout using the supplied clamps. Connect the sensor wiring using shielded twisted-pair cables for accurate measurements. Configure the input type and range using the front-panel configuration menu. Run the autotuning function to determine optimal PID parameters for the process. Test the control loop response with a step change in setpoint. Verify the alarm output operation with simulated process conditions.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 48 × 96 × 110 mm |
