Versatile Process Control for SIPART DR20 Systems

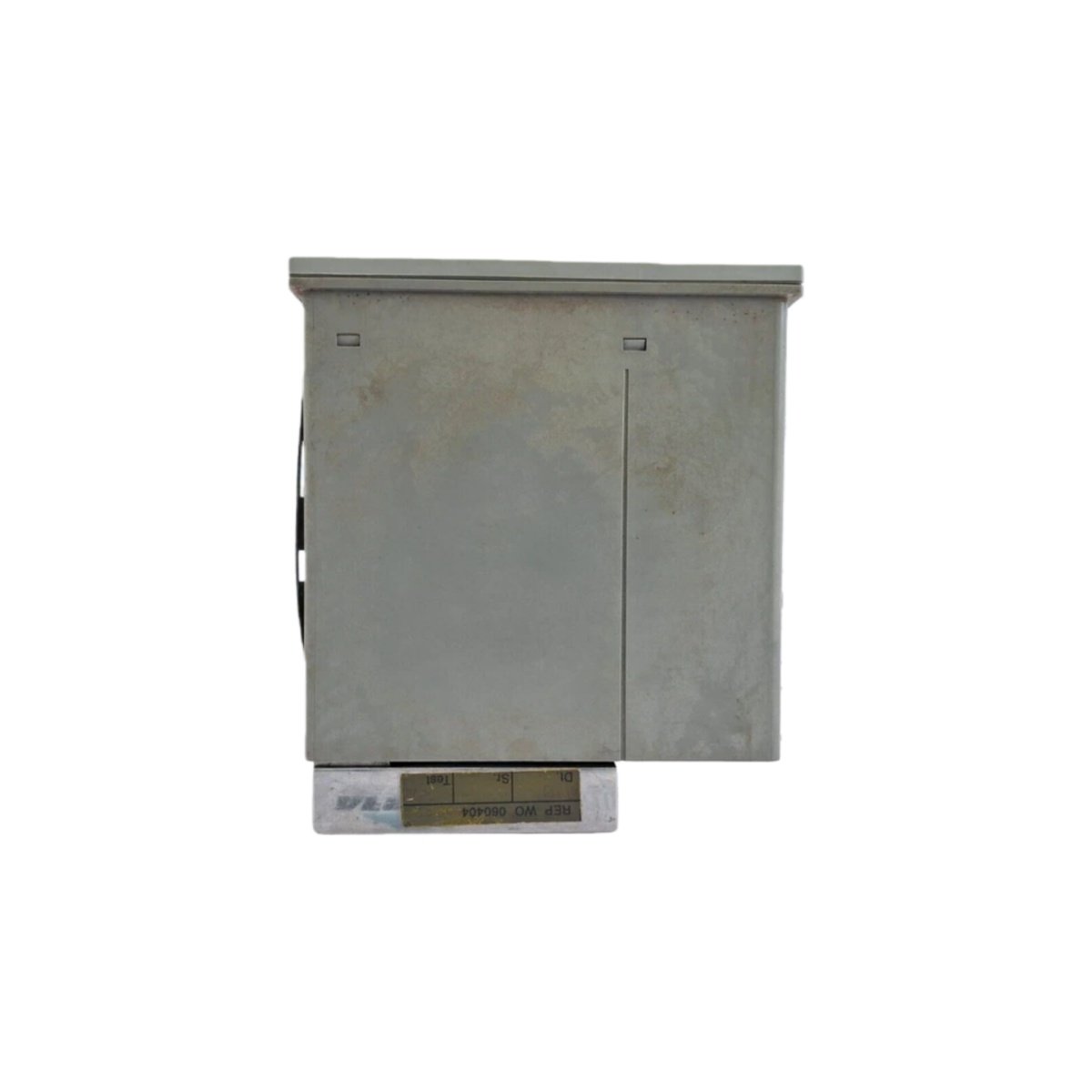

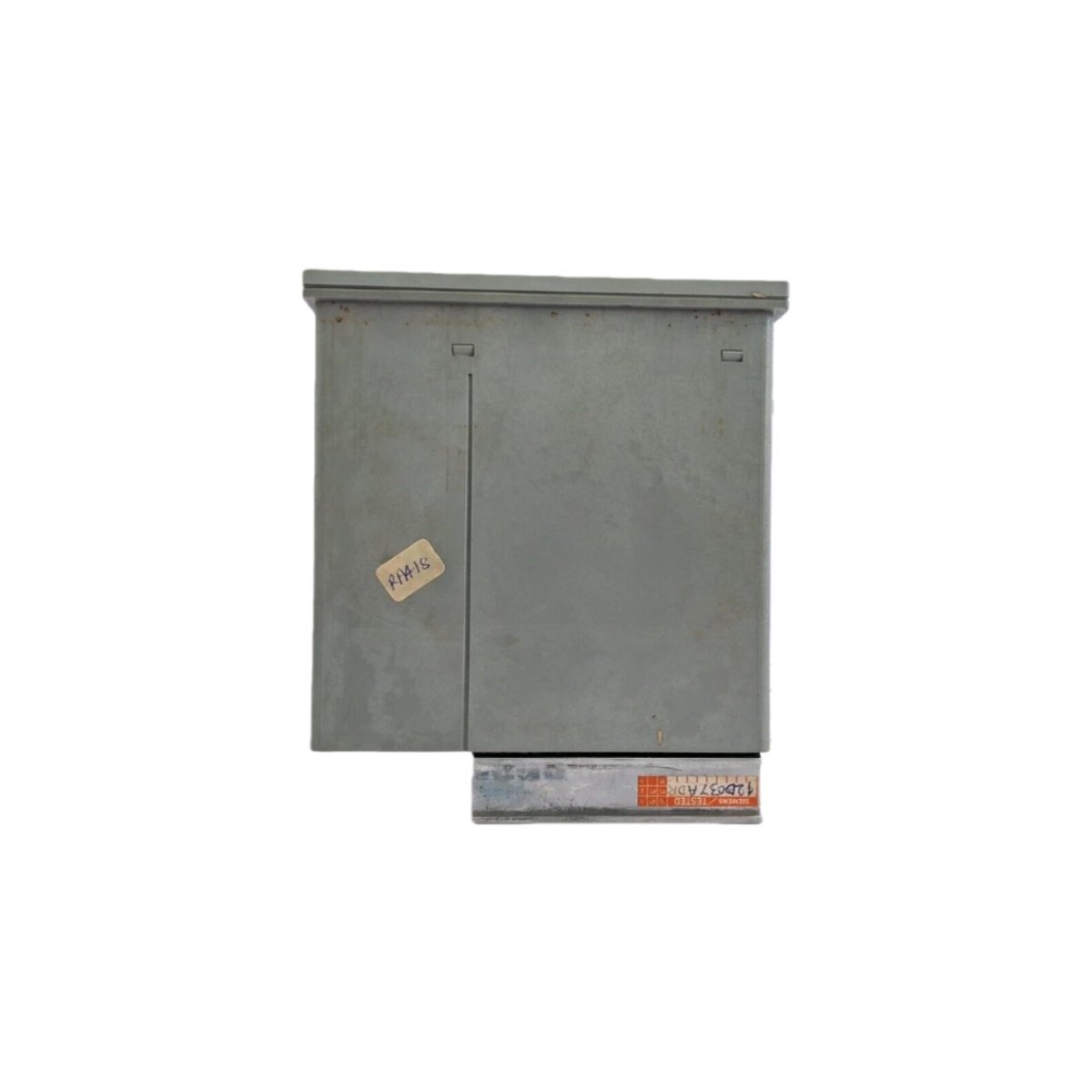

The Siemens 6DR2004-1 standard controller functions as the core processing unit for the SIPART DR20 modular process control system . This compact device provides powerful PID regulation and logic capabilities for various industrial applications. Its modular design enables straightforward servicing, conversion, and retrofitting.

Technical Specifications

Modular Design for Flexible Configuration

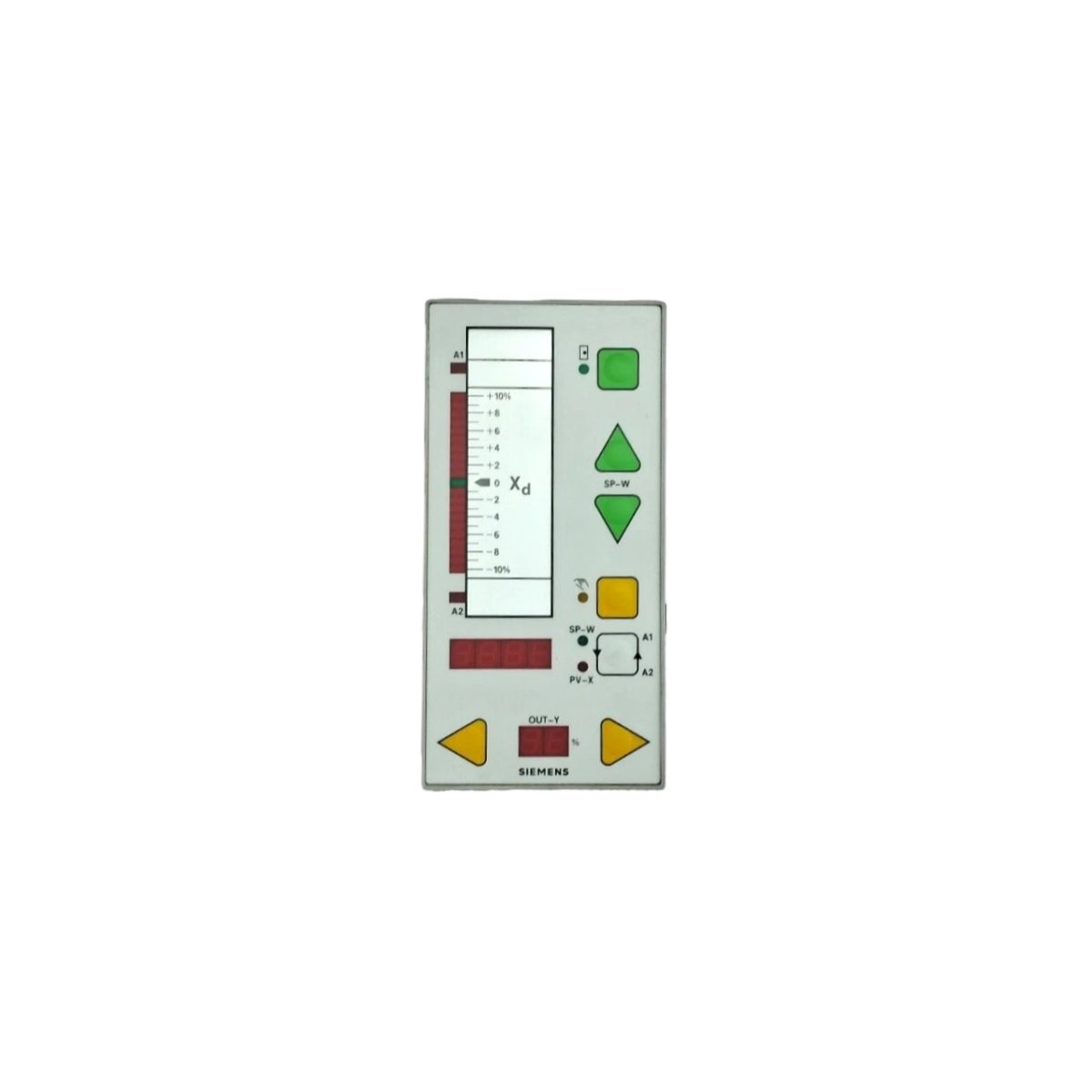

The Siemens 6DR2004-1 features a modular architecture that accepts additional function modules at the rear . These modules, also compatible with DR19, DR21, DR22, and DR24 controllers, expand I/O capabilities as needed. The standard device includes a control and display unit with CPU, plus a circuit board with built-in I/O elements.

Built-in I/O and High-Performance Processing

This controller includes two built-in analog inputs for 0/4-20mA signals and one configurable digital input . These interfaces enable direct connection to transmitters without extra hardware. Moreover, the controller’s high-speed processor executes complex control tasks rapidly, including PID, fuzzy, and feedforward algorithms .

Communication and Integration

The 6DR2004-1 supports multiple communication protocols, including RS-232, RS-485, and Ethernet for seamless data exchange . It also offers optional Profibus-DP for integration into distributed control systems . This versatility suits both standalone operation and integration into larger DCS networks.

Application Environments

This standard controller serves process applications in chemical, power generation, and water treatment industries . It handles temperature, pressure, and flow regulation with high precision. The robust design ensures reliable operation in demanding industrial conditions.
