Product Overview
The Siemens 6DM1001-2LA02-2 serves as a control circuit board for industrial automation applications. This board manages signal processing and power distribution within Siemens systems. It provides reliable operation in demanding plant floor environments. The unit fits into Siemens SIMATIC and compatible control cabinet assemblies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 6DM1001-2LA02-2 |
| Product Type | Circuit Board / PCB Assembly |
| PCB Material | FR-4 glass epoxy |
| Number of Layers | 6-layer board |
| Surface Finish | HASL (Hot Air Solder Leveling) |
| Operating Voltage | 5 VDC and 24 VDC |
| Component Count | Approximately 120 components |
| Onboard Capacitors | 25 electrolytic and ceramic capacitors |
| Energy Storage | 470 µF total capacitance |
| Connector Type | 48-pin DIN 41612 |
| Mounting Holes | 4 corner mounting points |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
Physical Dimensions and Construction

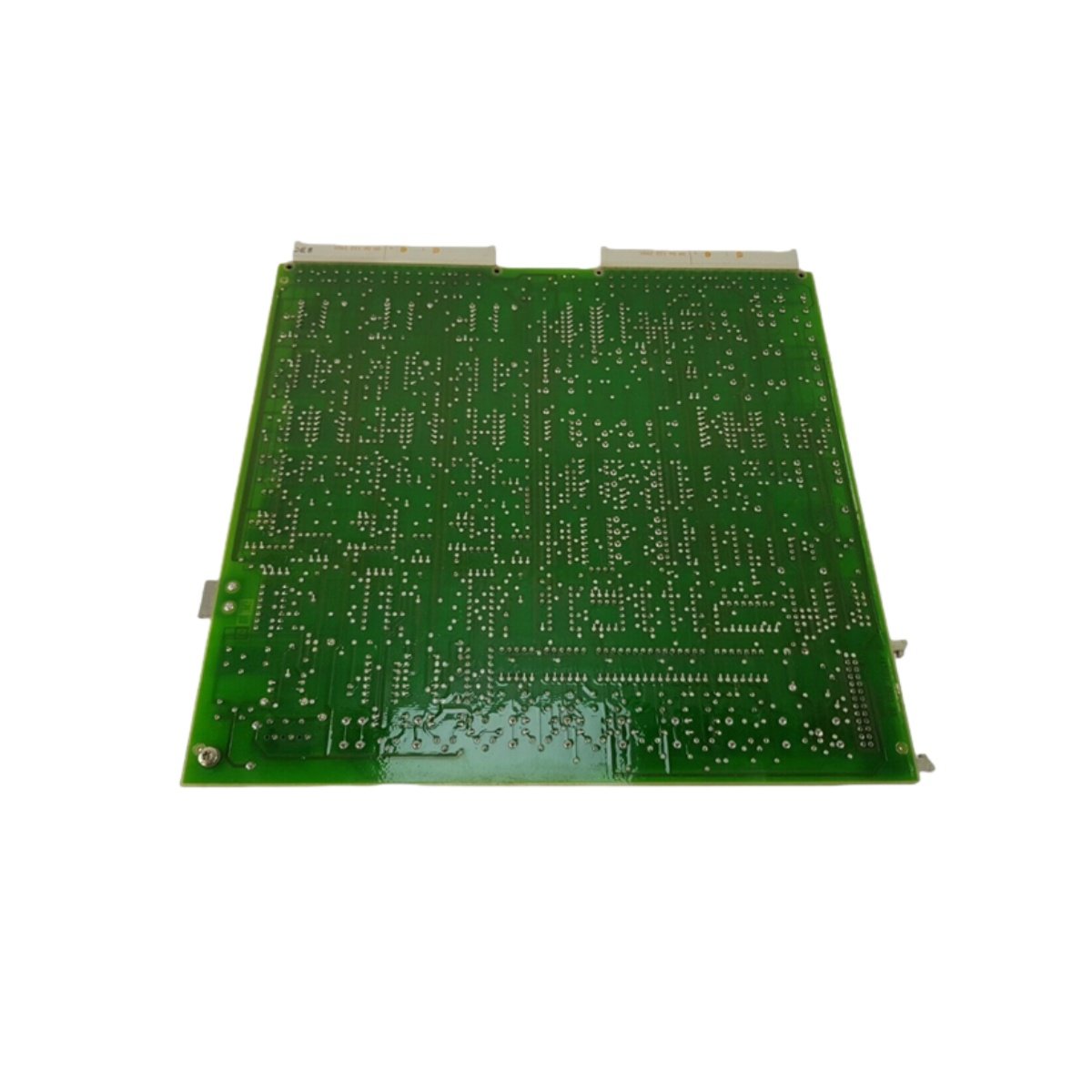

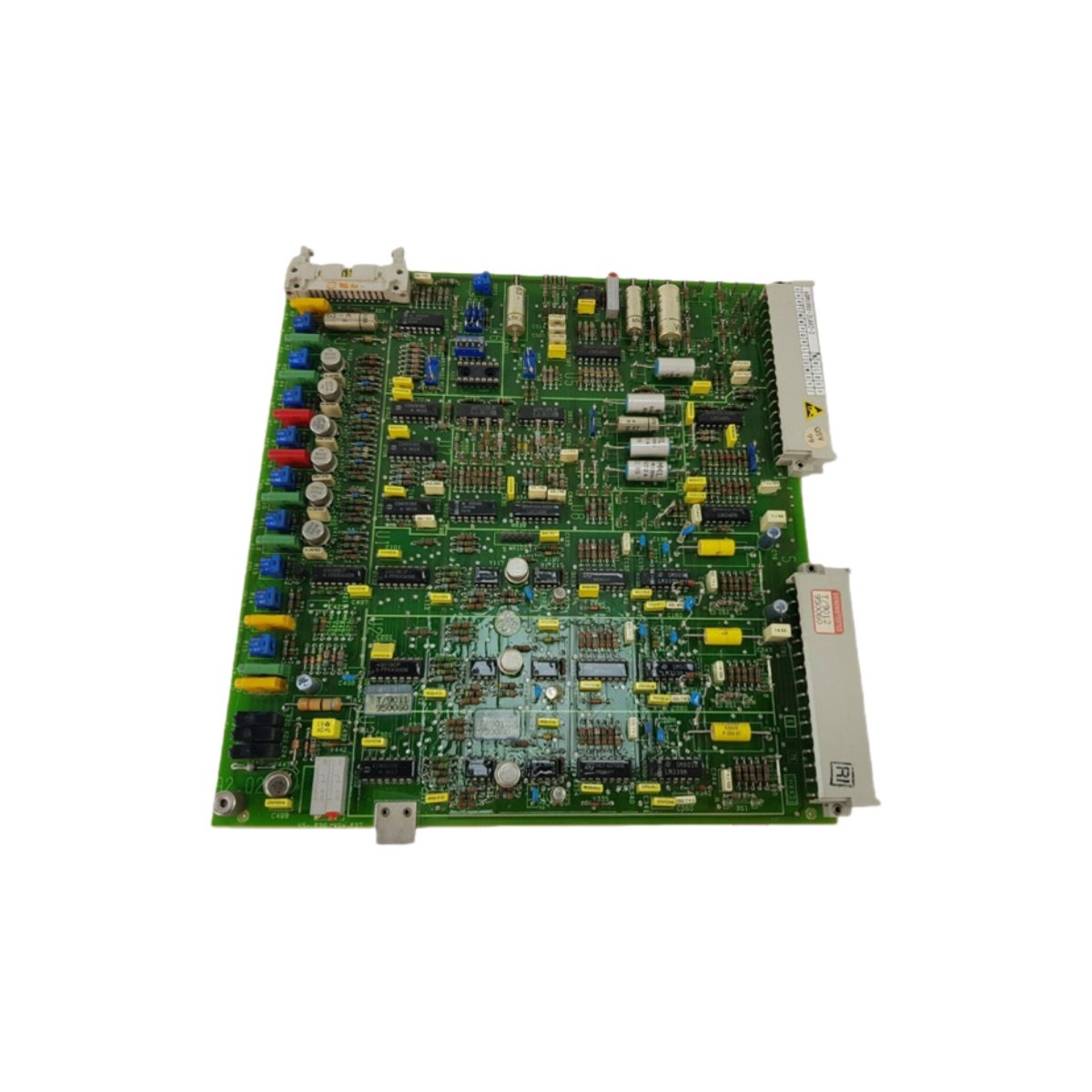

This circuit board measures approximately 200 mm in width and 160 mm in height. The unit weighs roughly 0.35 kg with all components installed. It features a 6-layer FR-4 PCB with plated-through vias. The board includes a 48-pin DIN 41612 connector for backplane interfacing. Four mounting holes at the corners secure the board to the chassis. The HASL surface finish provides excellent solderability for component attachment.
Electrical Interface and Component Layout
The 6DM1001-2LA02-2 incorporates a 48-pin connector that carries both power and signal lines. Onboard voltage regulators convert the input supply to required operating voltages. Multiple electrolytic capacitors provide energy storage totaling 470 µF. These capacitors stabilize the voltage during transient load changes. The board includes approximately 120 components including ICs, resistors, and capacitors. Careful component placement minimizes signal interference between analog and digital sections.
Performance and Circuit Functionality
This circuit board processes control signals with high reliability in industrial environments. The 6-layer design provides dedicated power and ground planes for noise reduction. These planes reduce electromagnetic interference significantly. The board includes built-in test points for signal verification during maintenance. Furthermore, the design incorporates ESD protection on all external interface pins.
Installation and System Integration
You can install this board into the designated slot within the control cabinet. Align the connector carefully before seating the board into the backplane. Secure the board using the four corner mounting screws. Always verify the supply voltage before powering up the unit. Handle the board with appropriate ESD precautions during installation.
Environmental Compliance
This board meets RoHS requirements for restricted substance content. It also carries UL recognition for industrial control equipment. The PCB material complies with standard flame retardancy ratings.
Details
| Weight | 0.58 kg |
|---|---|
| Dimensions | 45 × 230 × 140 mm |
