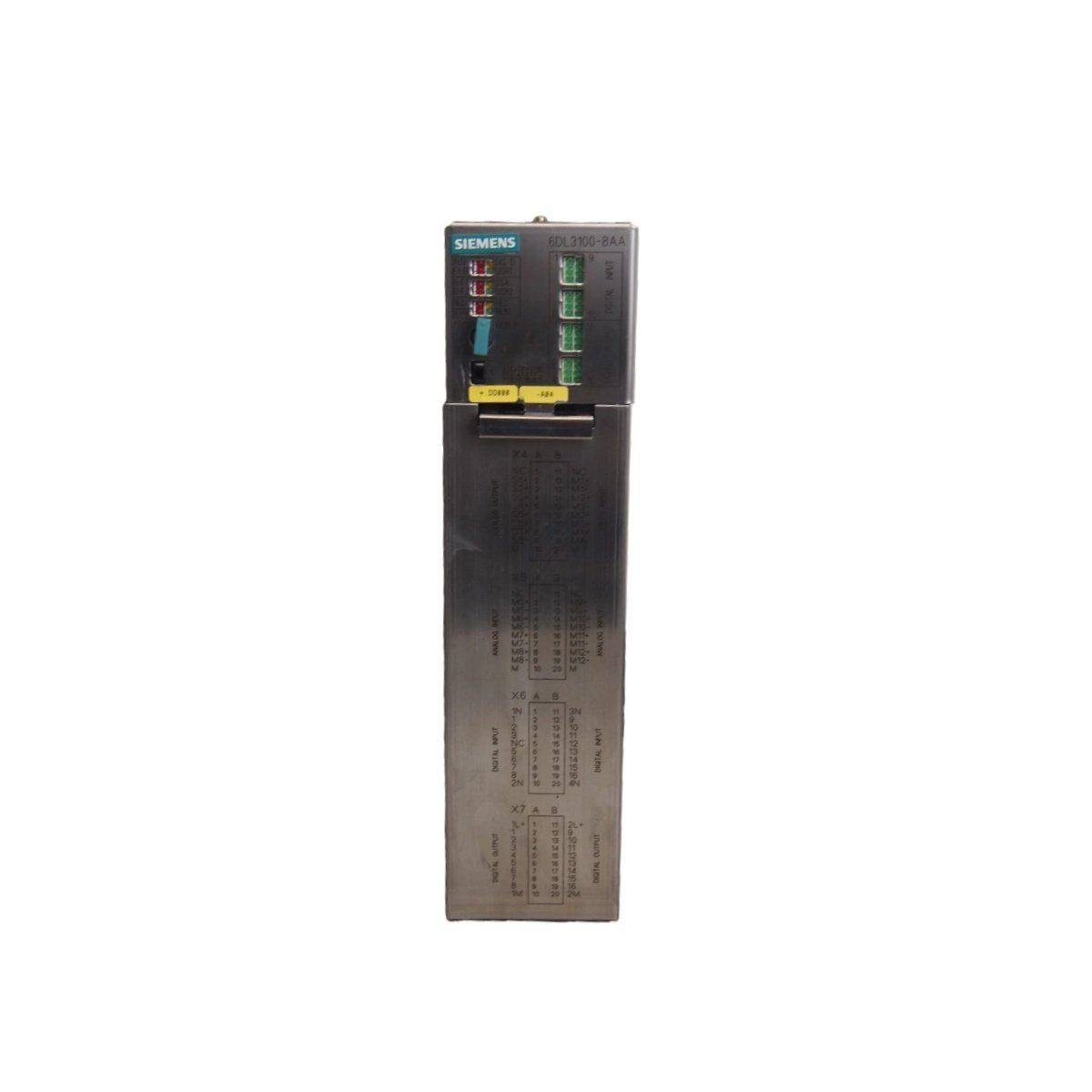

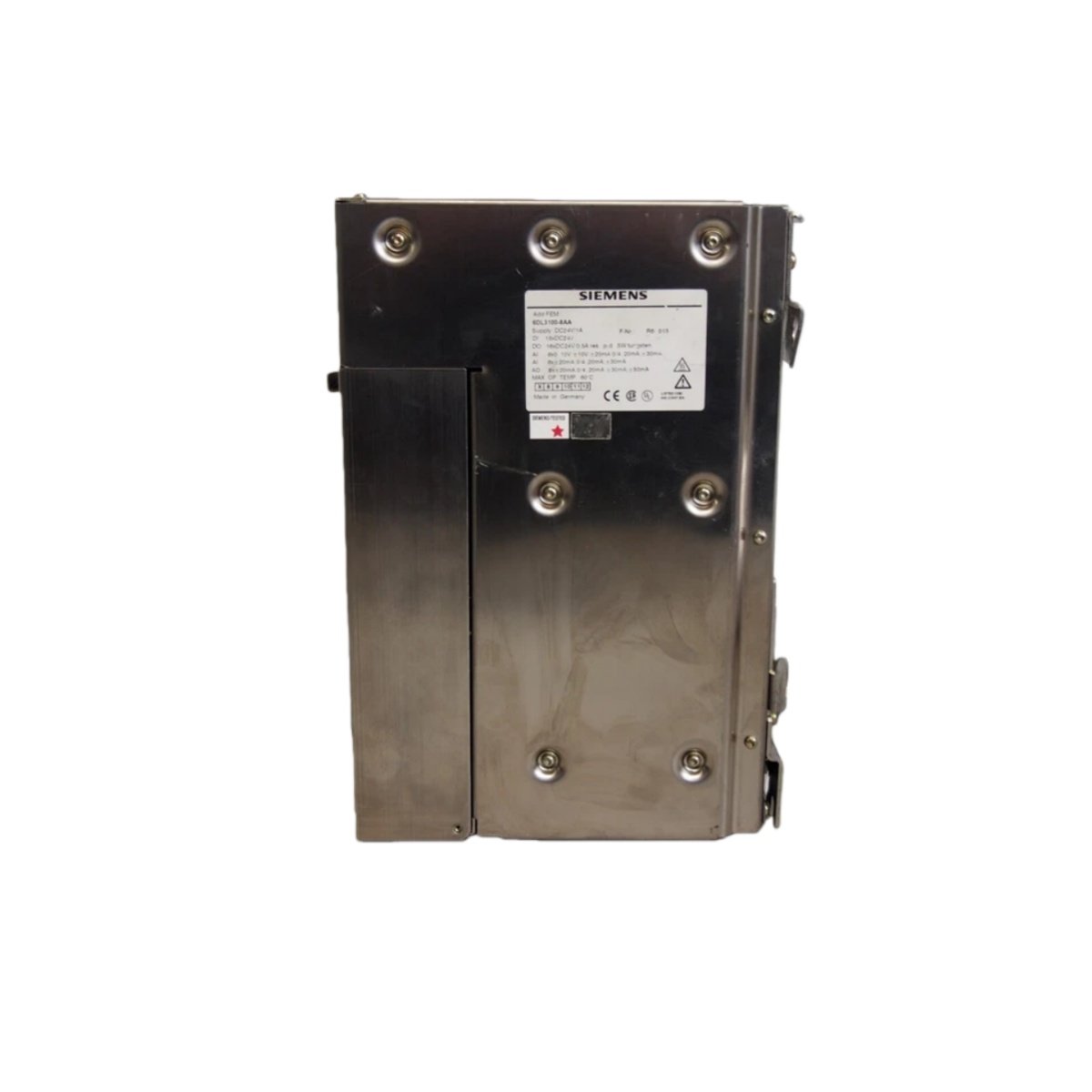

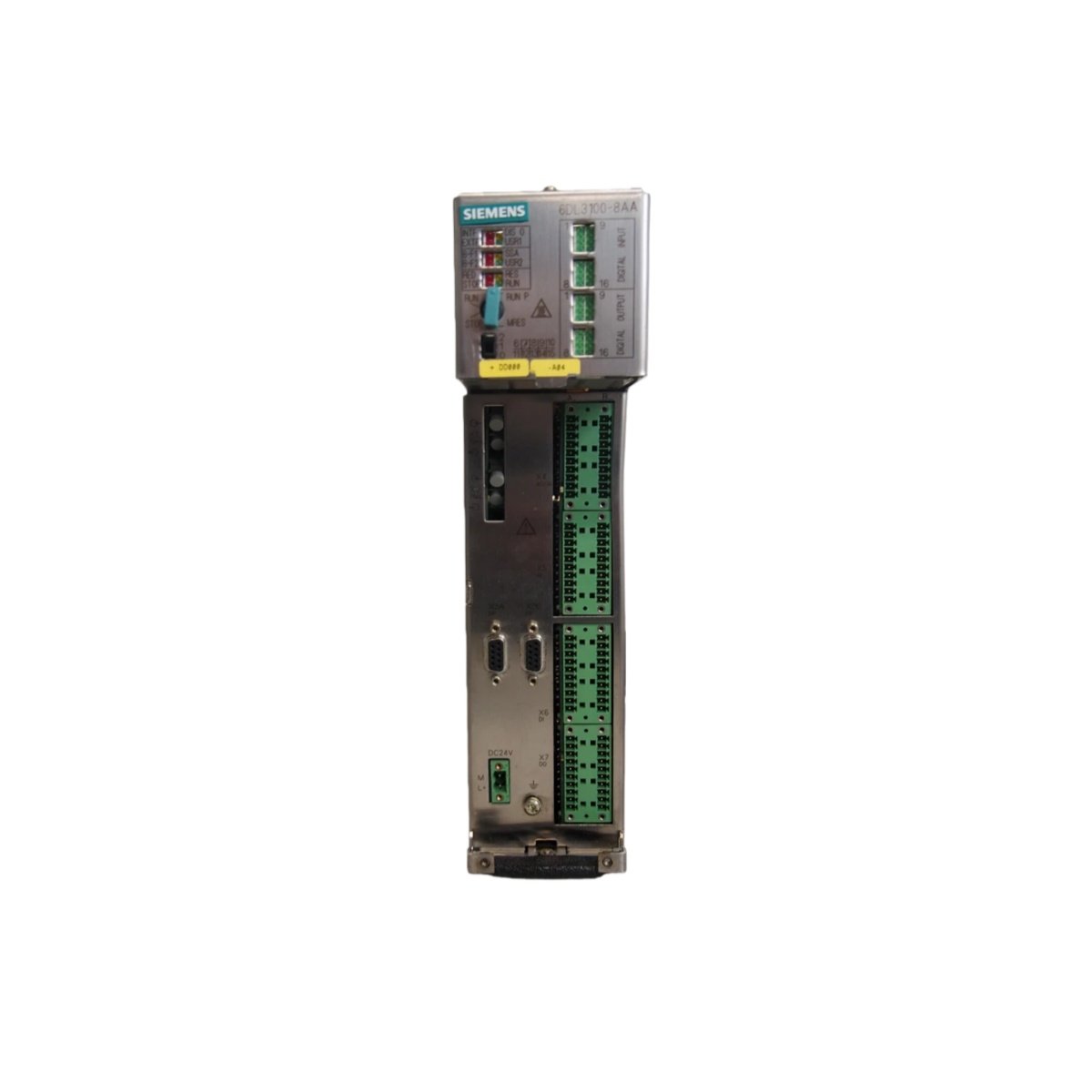

Technical Overview of the Front End Module
The Siemens 6DL3100-8AA functions as a front end module for SIMATIC drive control systems. This module provides the primary interface between power converters and the control system. It manages incoming power signals and conditions them for further processing. The design ensures reliable power distribution within high-performance drive applications.
Key Technical Specifications
This section details the precise parameters for the Siemens 6DL3100-8AA front end module. Use these figures to verify compatibility with your drive system.
| Parameter | Specification |
|---|---|
| Part Number | 6DL3100-8AA |
| Type | Front End Module |
| Product Family | SIMATIC Drive Systems |
| Input Voltage | 690V AC (nominal) |
| Power Rating | Configurable, based on system design |
| Protection Features | Overvoltage, undervoltage, short-circuit |
| Cooling Method | Forced air / heatsink dependent |
| Interface | Fiber optic communication with controller |
| Dimensions (W x H x D) | Approx. 300 x 450 x 220 mm |
| Weight | Approx. 25.0 kg |
| Compatibility | SINAMICS / SIMADYN D drive systems |
Application and System Integration
This front end module connects directly to the drive inverter and control unit. It manages power flow and protects downstream components from electrical faults. The Siemens 6DL3100-8AA communicates with the controller via fiber optic link. This isolation ensures reliable signal transmission in high-voltage environments.
Reliability and Performance Characteristics
The robust design withstands harsh industrial conditions and high power levels. Its protection features prevent damage from grid disturbances and wiring faults. Engineers trust the Siemens 6DL3100-8AA for dependable front-end power conversion in large drive systems.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
