Product Overview

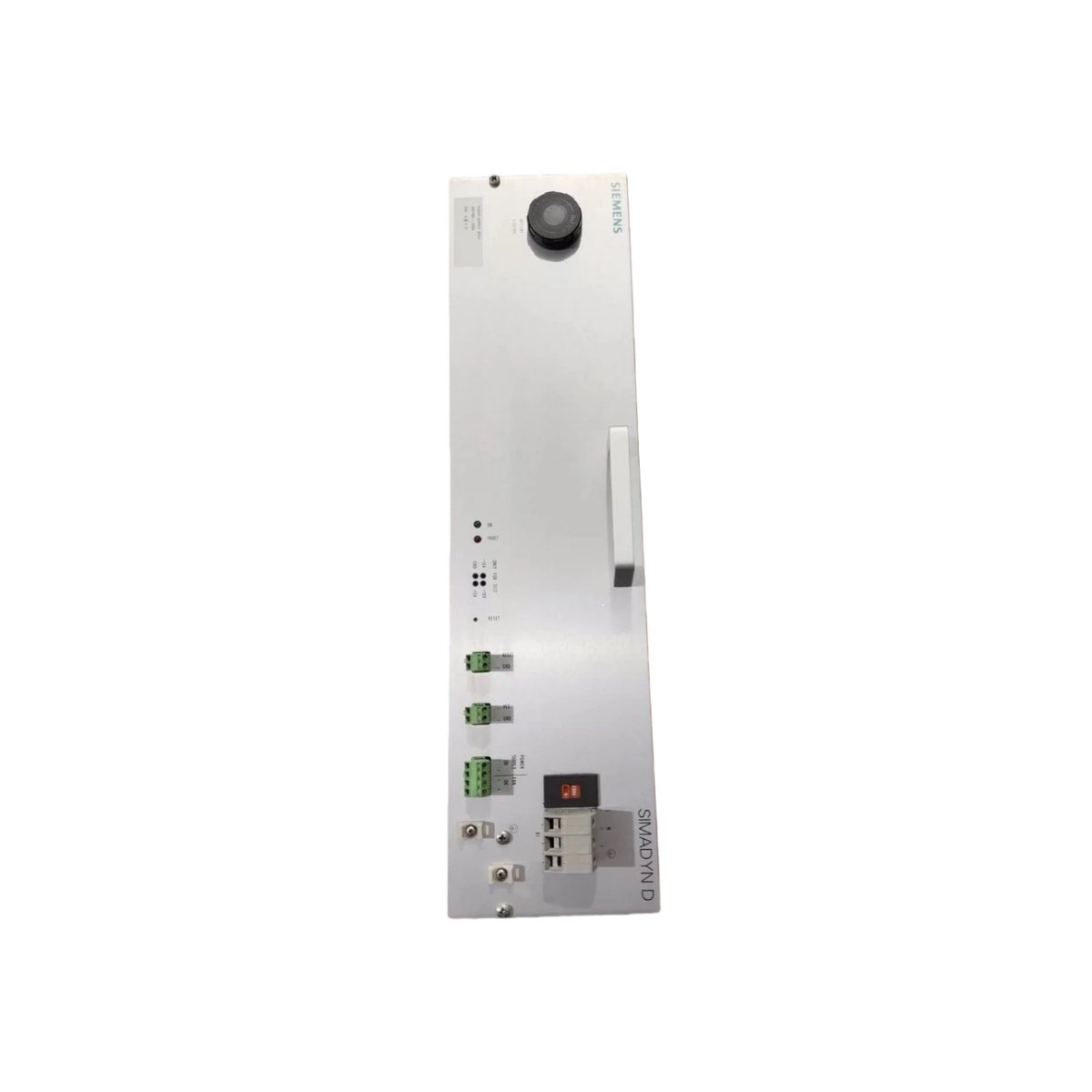

The 6DD1683-0BC5 Power Supply Unit delivers stable DC power for Siemens industrial automation and control system applications. Moreover, the unit ensures reliable energy distribution for connected modules while maintaining consistent performance during continuous operation. Its compact structure supports efficient cabinet installation and simplifies system configuration in industrial environments. Additionally, the robust power design improves equipment availability and reduces potential maintenance requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6DD1683-0BC5 |
| Product Category | Power Supply Unit |
| Application | Industrial Automation Power Module |
| Input Voltage | 24 V DC |
| Output Voltage | 5 V DC |
| Output Current | Approx. 10 A |
| Output Power | Approx. 50 W |
| Protection Functions | Overvoltage, Overcurrent, Short-Circuit Protection |
| Communication Interface | System backplane connection |
| Mounting Method | Rack-mounted |
| Cooling Method | Natural air convection |
| Dimensions | Approx. 233 × 40 × 225 mm |
| Weight | Approx. 1.0 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Key Features
The 6DD1683-0BC5 provides dependable power conversion for Siemens automation systems requiring stable voltage regulation. Furthermore, the unit supplies consistent energy to connected control modules and helps maintain uninterrupted system operation. Engineers can integrate the power supply easily within existing racks because of its standardized industrial design. Consequently, automation systems achieve improved reliability while reducing installation complexity.
The unit measures approximately 233 × 40 × 225 mm and weighs around 1.0 kg for practical rack installation. Additionally, the integrated protection functions prevent damage caused by electrical overload conditions and unstable power environments. The backplane connection ensures efficient power distribution between system components. Therefore, the module supports long-term operation across demanding industrial control applications.
Typical Applications
The 6DD1683-0BC5 supports process automation systems, manufacturing equipment, industrial controllers, and Siemens SIMATIC-based installations. Meanwhile, engineers use this power supply unit for reliable energy management within complex automation racks. Its stable output characteristics also support continuous production environments that require dependable control system performance.
Advantages
- Provides stable DC power for industrial automation systems.
- Supports reliable operation of Siemens control modules.
- Includes protection against electrical overload conditions.
- Compact rack-mounted design simplifies installation.
- Natural cooling improves operational efficiency.
- Reduces system downtime through dependable power delivery.
- Integrates easily with compatible Siemens automation platforms.
Technical Highlights
| Feature | Benefit |
|---|---|
| 24 V DC Input | Matches common industrial power sources |
| 5 V DC Output | Supplies compatible control modules |
| Approx. 50 W Output Power | Supports multiple automation components |
| Protection Functions | Improves system safety and reliability |
| Backplane Connection | Enables efficient rack integration |
| Approx. 1.0 kg Weight | Allows convenient installation and replacement |
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
