Technical Specifications and Functional Overview

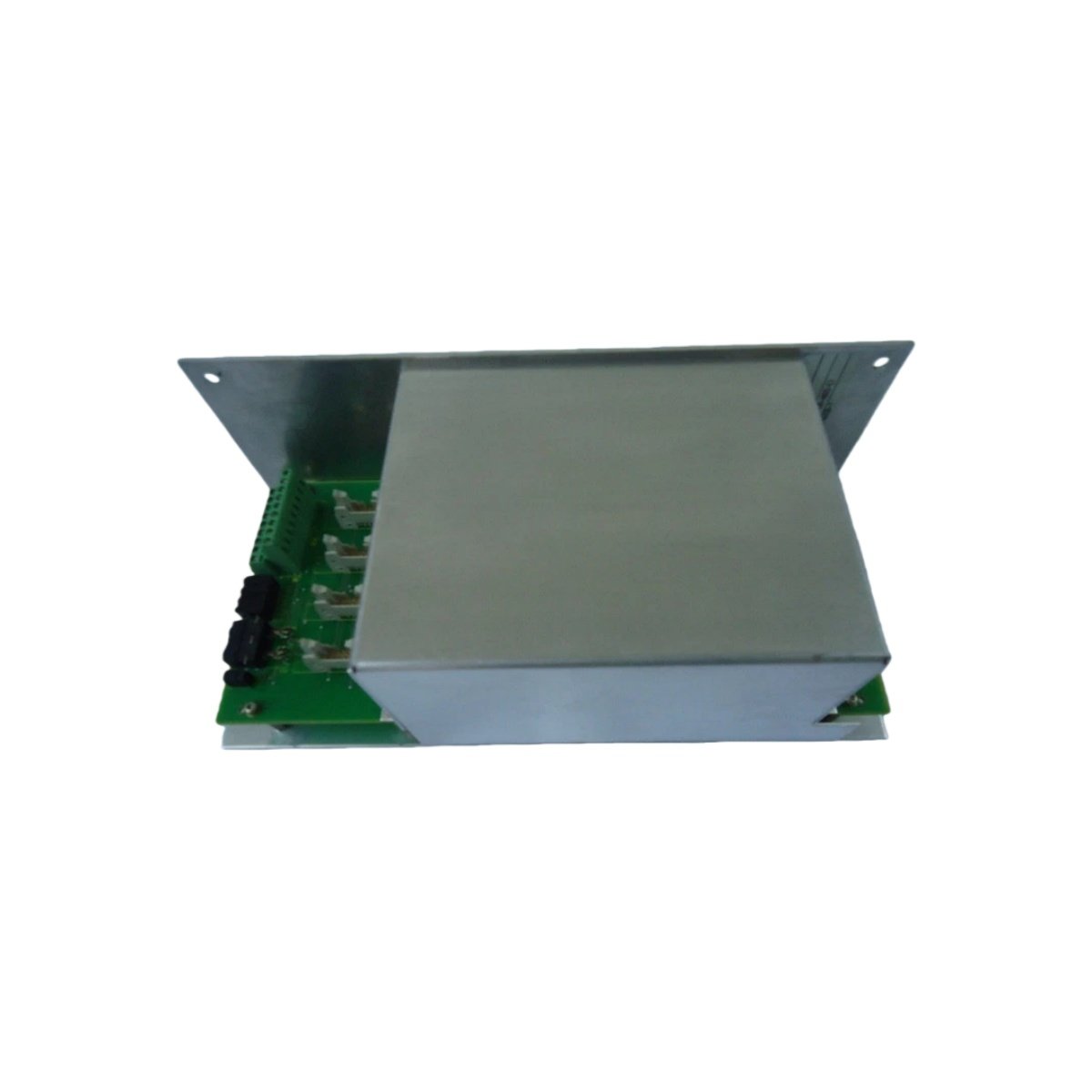

The Siemens 6DD1681-0EK1 interface unit, also known as the SE49.1 synchronization module, serves as a specialized component within the SIMADYN D high-performance automation system . This module primarily handles high-speed data exchange and synchronization tasks, acting as a critical link in complex, multi-processor control architectures. It supports the Global Data Memory (GDM) or Interbus-TDC Data Coupling (ITDC) communication protocols, enabling efficient data transfer between distributed SIMADYN D racks and compatible SIMATIC TDC systems . Its compact design and robust feature set make it an essential building block for demanding motion control and drive applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6DD1681-0EK1 |
| Product Family | SIMADYN D |
| Module Type | Interface / Synchronization Module (SE49.1) |
| Weight | Approx. 0.32 kg |
| Dimensions (approx.) | 8.00 x 20.90 x 6.60 cm |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP20 |
| Communication Protocol | GDM / ITDC |
| Electrical Isolation | Yes |
| Diagnostics | LED status indicators |
Functional Capabilities and System Integration
The 6DD1681-0EK1 module actively synchronizes multiple CPUs and enables high-speed data exchange between various system components. Its core function is to act as a communication bridge, reducing latency and ensuring determinism in time-critical control loops . The module features built-in galvanic isolation, which provides a robust barrier against electrical interference, thereby ensuring signal integrity in electrically noisy industrial environments . Furthermore, integrated LED indicators on the front panel allow operators to quickly assess the module’s operational status and diagnose communication errors without needing additional tools, simplifying maintenance and reducing downtime .
Application Scenarios
This interface unit is vital for high-performance industrial applications that demand precise synchronization, such as multi-axis motion control, coordinated drive systems, and complex process control . It is an indispensable component for maintaining and upgrading legacy SIMADYN D systems, particularly in sectors like metal processing, paper manufacturing, and material handling. For system integrators, the Siemens 6DD1681-0EK1 provides a reliable pathway to sustain the performance of established automation environments by ensuring fast, secure, and accurate data flow.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
