Technical Specifications and Functional Overview

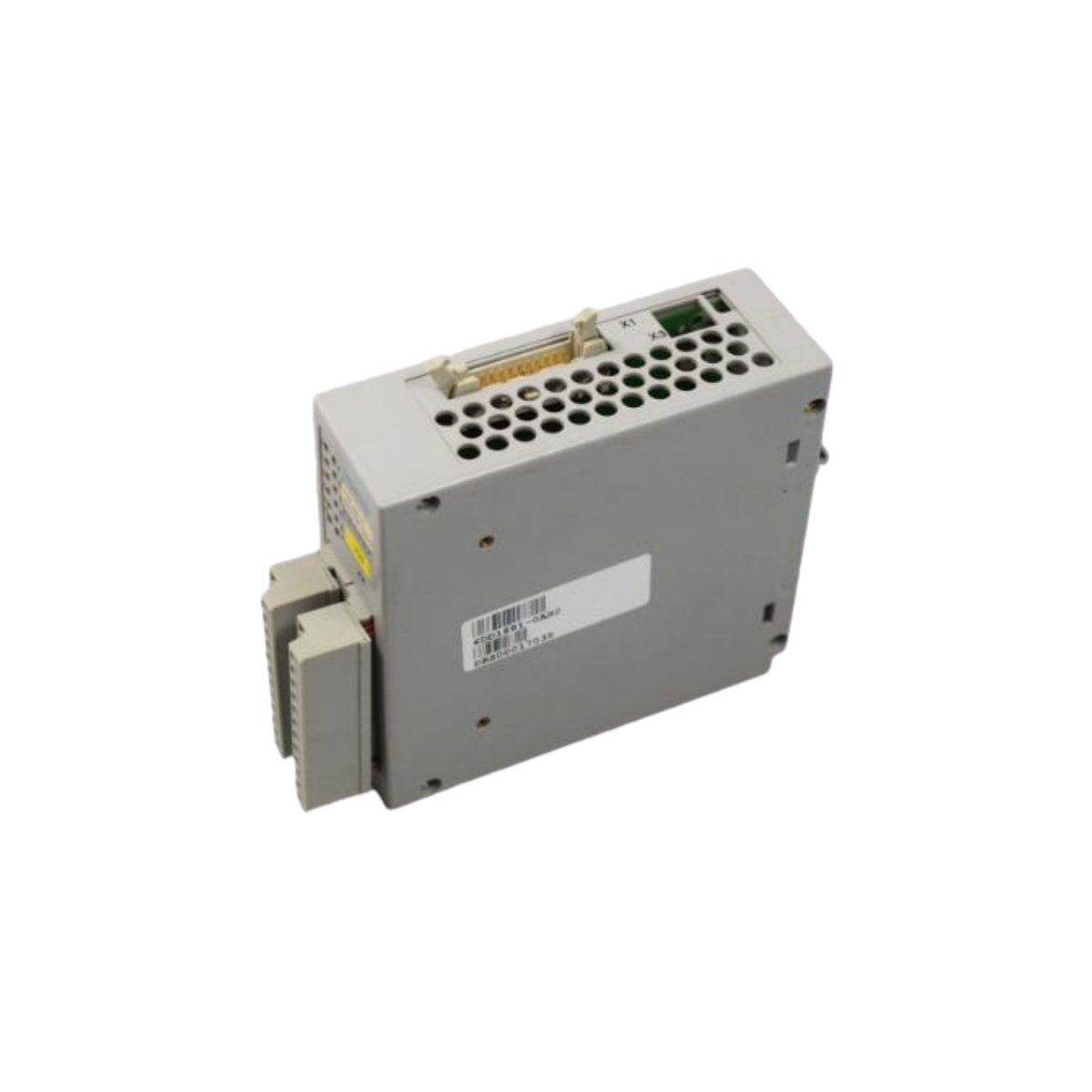

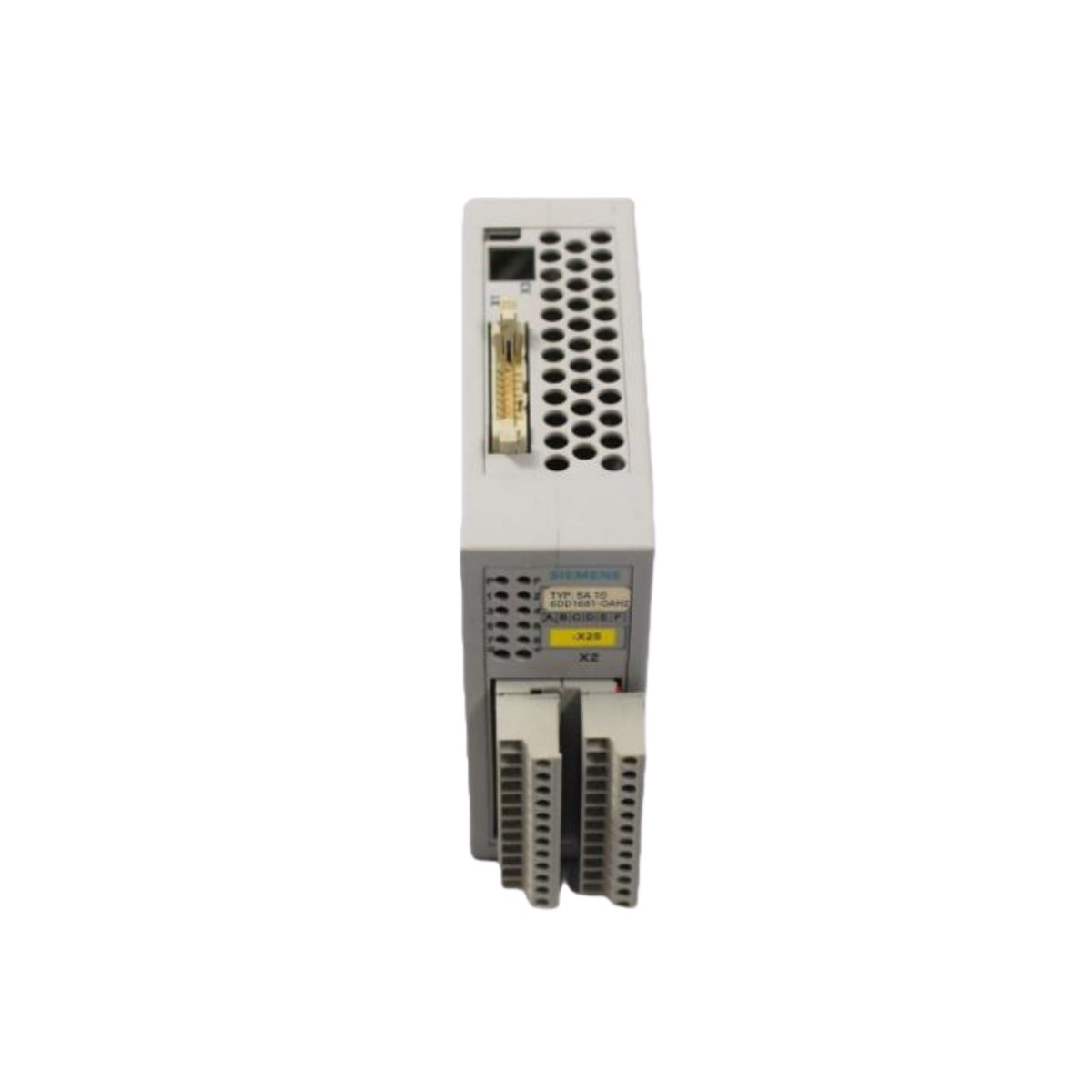

The Siemens 6DD1681-0AH2 interface module, also known as the SA10, serves as a specialized analog signal interface within the SIMADYN D high-performance automation system . This module provides 8 analog input and output channels with a ±10V signal range for precise monitoring and control tasks . Its 10 MΩ high input impedance design significantly reduces signal transmission loss and interference . The module achieves a full-scale accuracy of ±0.5%, ensuring reliable analog closed-loop control in complex industrial environments . It also features electrical isolation to prevent interference between system components, enhancing overall reliability .

Functional Capabilities and Signal Processing

The 6DD1681-0AH2 module actively provides high-density analog signal interaction between field devices and the SIMADYN D central processing unit. Its 8-channel design handles both input and output signals, making it suitable for a variety of measurement and control applications . The 10 MΩ input impedance minimizes the load on the monitored circuit, preserving signal integrity. Furthermore, the module’s ±0.5% accuracy ensures dependable performance in high-precision closed-loop control tasks . The built-in electrical isolation protects the system from potential ground loops and transient voltages. Moreover, this module is configurable via SIMATIC TDC and is compatible with SIMATIC Step 7 software, simplifying system integration .

Application Scenarios and Legacy Support

This interface module is a vital component for maintaining legacy SIMADYN D systems, especially in sectors like metal processing, paper manufacturing, and material handling . The Siemens SA10 has officially reached the end of its product lifecycle, meaning new units are only available through remaining stock or trusted suppliers of reconditioned parts . For system integrators, this module provides a reliable pathway to sustain existing automation infrastructure without undertaking a costly and complex system overhaul. It is an indispensable choice for applications that demand precise analog control and high system reliability.
