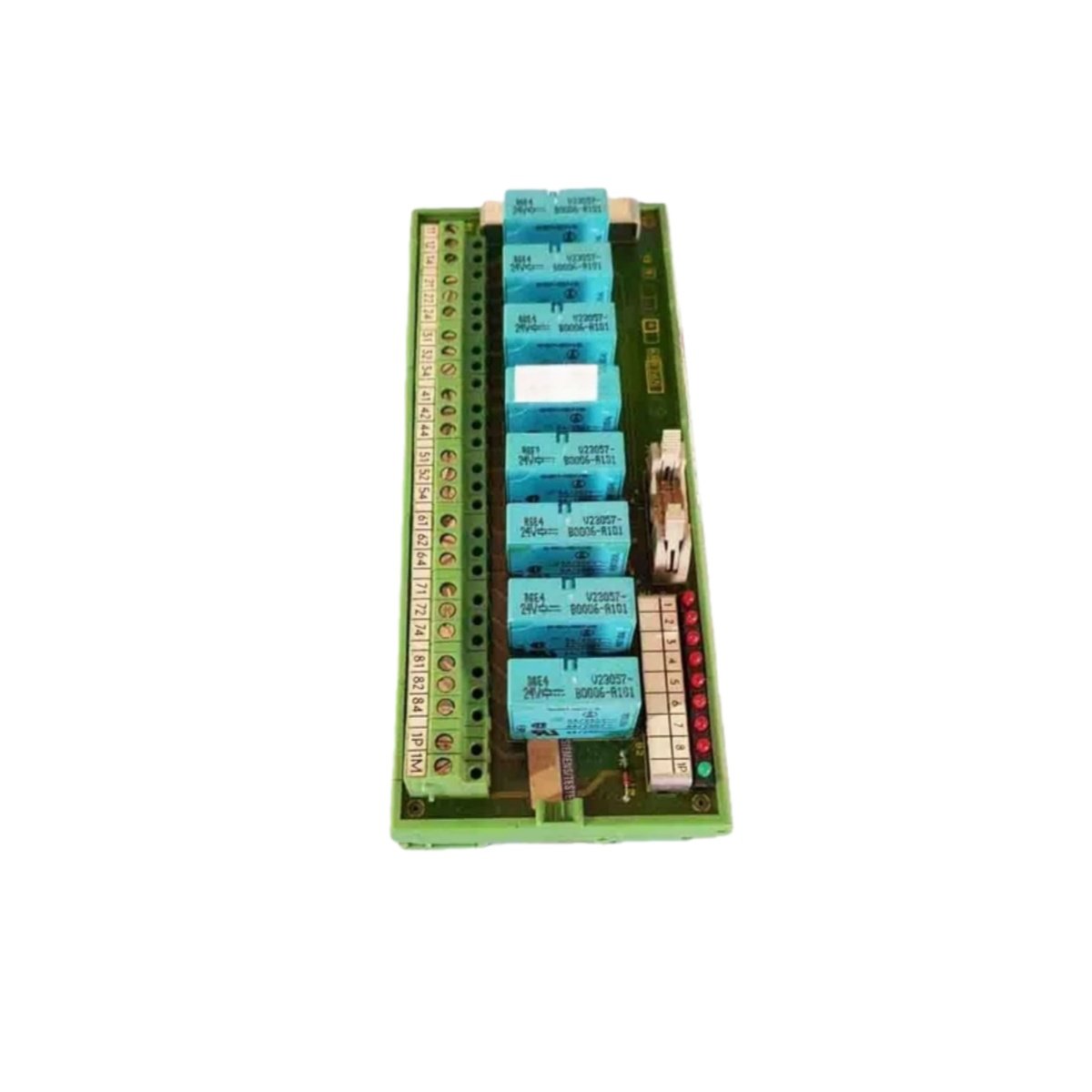

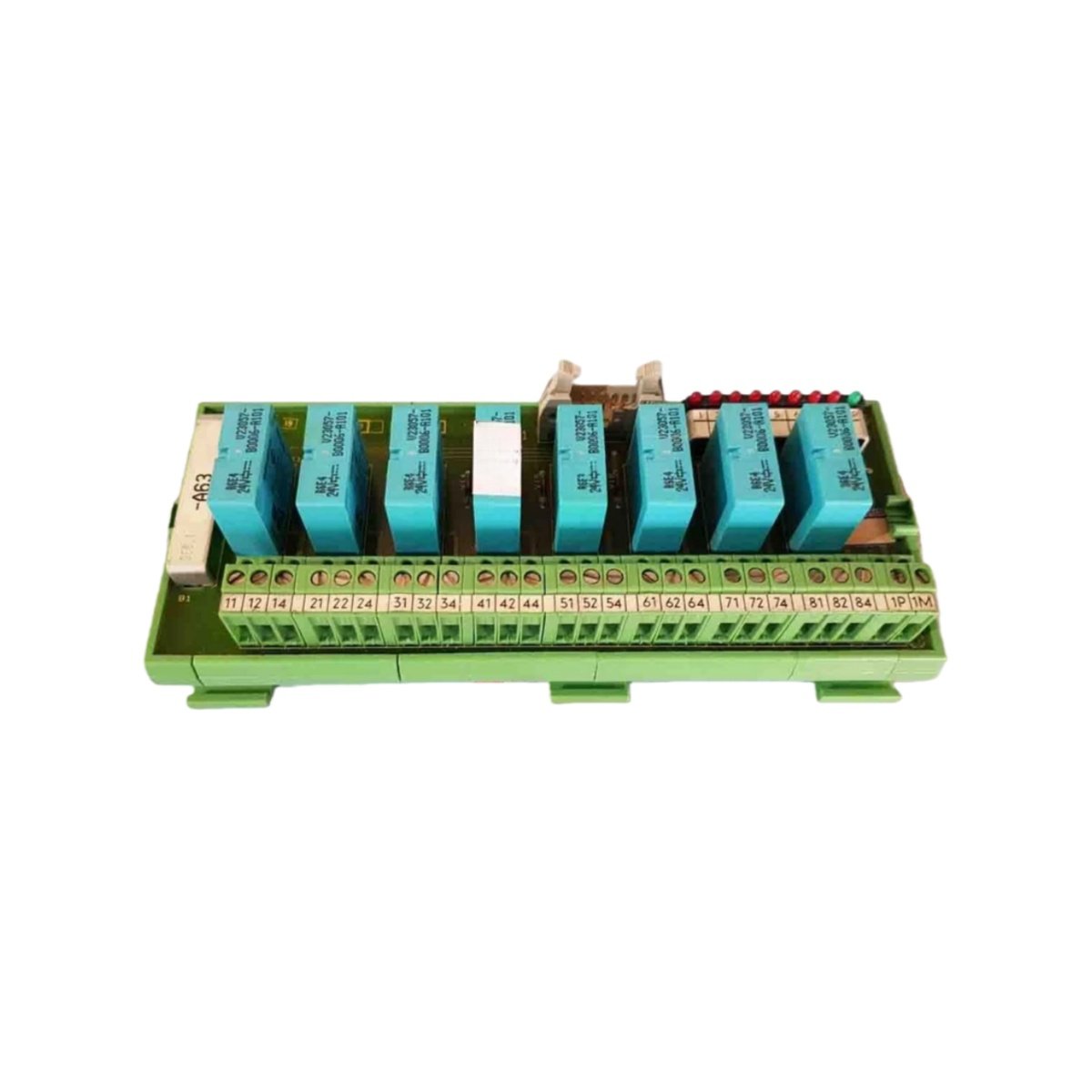

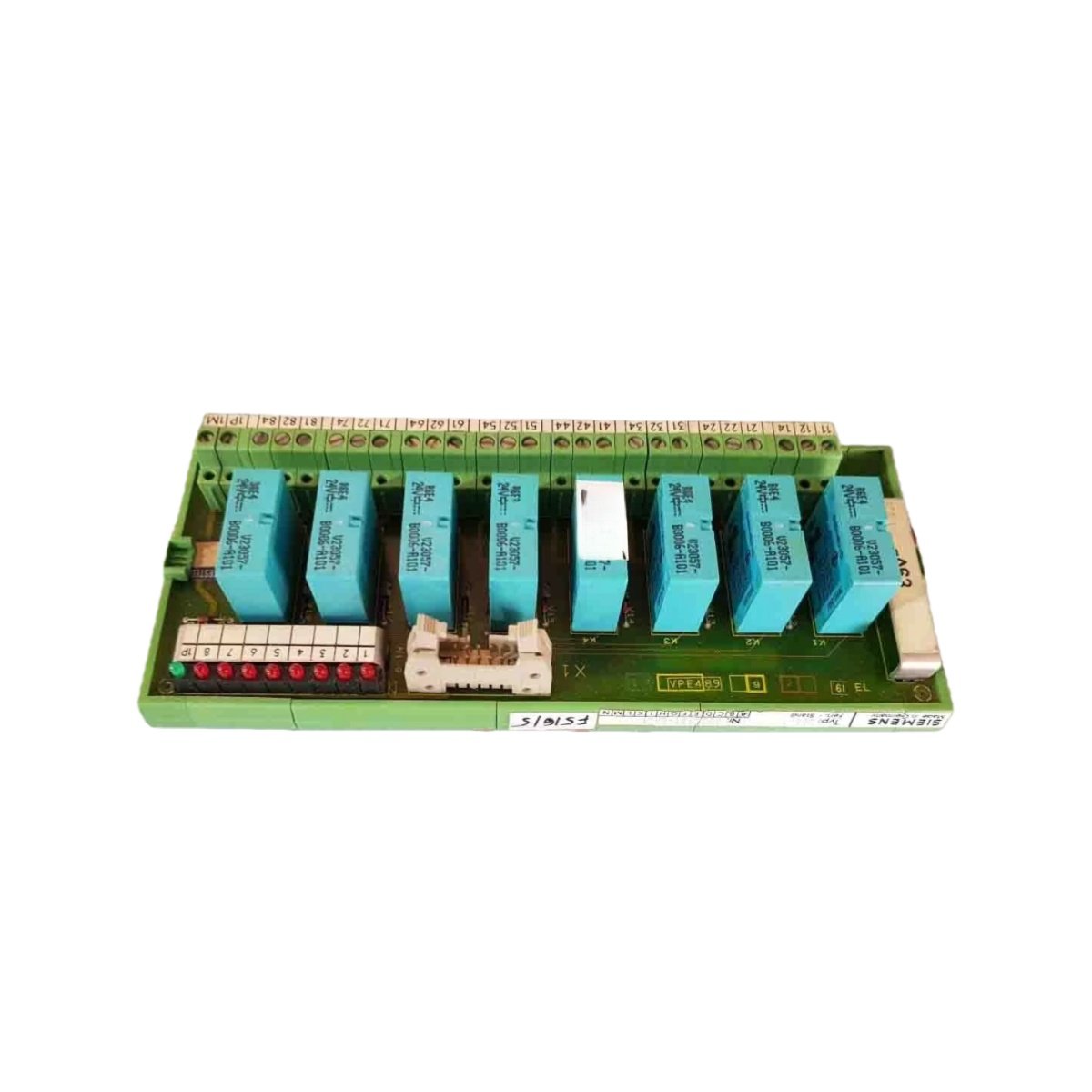

The Siemens 6DD1681-0AG1 serves as a dedicated interface module within the SIMADYN D digital drive control system. This module connects the central processor to external I/O devices and field equipment. The unit provides robust signal conditioning and electrical isolation for reliable data exchange.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital I/O interface module |
| System Compatibility | SIMADYN D drive control platform |
| Dimensions (W x H x D) | 233 x 160 x 30 mm (Eurocard format) |
| Weight | 0.6 kg |
| Digital Inputs | 16 x 24V DC (galvanically isolated) |
| Digital Outputs | 16 x 24V DC / 0.5A (protected) |
| Total I/O Channels | 32 channels |
| Isolation Voltage | 500V DC (between channels and backplane) |
| Input Current | 7 mA per channel (typical) |
| Output Switching Time | < 1 ms (ON/OFF) |
| Internal Component Count | 4 x optocoupler arrays, 2 x shift registers, 1 x watchdog |
| Backplane Connector | 96-pin DIN 41612 (male) |
| Field Connector | 2 x 40-pin ribbon cable headers |
| Power Consumption | 5V DC / 150 mA, 24V DC / 200 mA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Features | Short-circuit, overcurrent (1A limit) |
| Mounting | DIN rail or rack system |
| Approvals | CE, UL, CSA |
Comprehensive Digital I/O Configuration
The Siemens 6DD1681-0AG1 provides 16 digital inputs and 16 digital outputs for flexible field connectivity. Each input channel accepts 24V DC signals from sensors, pushbuttons, or limit switches. Each output channel drives 0.5A loads including relays, indicator lamps, and small actuators. The module handles both source and sink wiring configurations for maximum compatibility.
Galvanic Isolation and Noise Immunity
Galvanic isolation of 500V DC separates the I/O channels from the backplane bus. This isolation protects the central processor from electrical noise and ground potential differences. Four optocoupler arrays provide the isolation barrier while maintaining signal integrity. The module also filters input signals to reject high-frequency interference common in drive environments.
Fast Response and Reliable Switching
Output switching occurs in less than 1 millisecond for rapid control response. This fast switching suits time-critical applications like motor starting and emergency stopping. Each output includes overcurrent protection that limits current to 1A maximum. The watchdog timer monitors the backplane communication and resets the module if it detects a fault.
Compact Eurocard Format and Rack Integration
The 233 x 160 mm board follows the standard Eurocard format for easy rack installation. This compact size allows high-density mounting in SIMADYN D chassis systems. The 96-pin DIN 41612 connector provides a secure backplane interface with the central processor. Two 40-pin ribbon cable headers connect the module to field termination panels.
Low Power Consumption and Thermal Efficiency
The module draws only 150 mA from the 5V DC supply and 200 mA from the 24V DC supply. This low power consumption minimizes heat generation within the drive cabinet. The board operates reliably across a 0°C to +60°C ambient temperature range. Users can store the module from -40°C to +85°C without performance degradation.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
