Product Overview

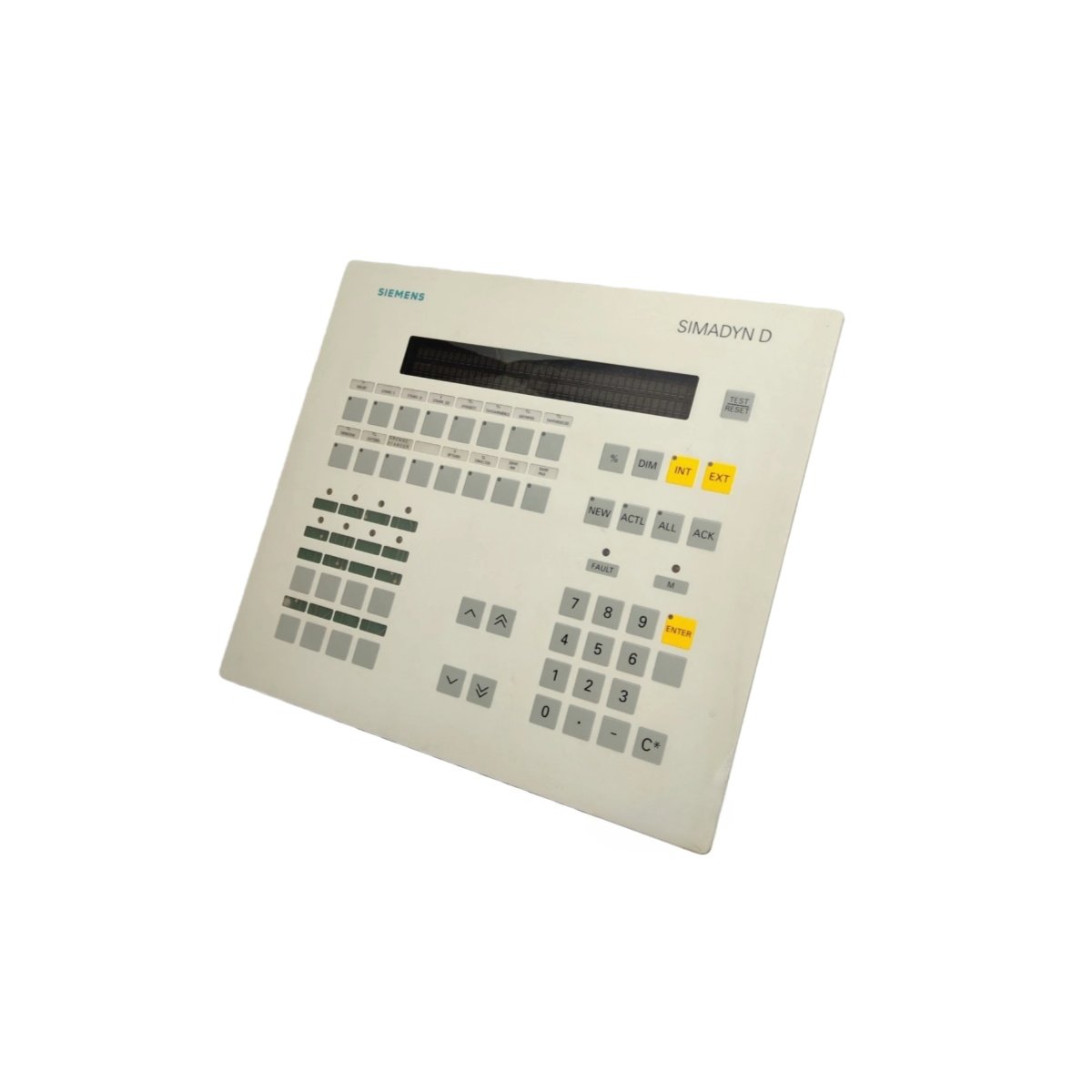

The 6DD1670-0AF0 Operator Panel provides efficient machine interaction and visualization functions for industrial automation applications. Moreover, the panel enables operators to monitor processes, adjust settings, and manage equipment operations conveniently. Its compact structure supports flexible installation within control cabinets and machine interfaces. Additionally, the reliable hardware design improves operational efficiency while maintaining stable performance in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6DD1670-0AF0 |
| Product Category | Operator Panel |
| Product Series | SIMATIC HMI |
| Display Type | Graphic LCD Display |
| Display Size | Approx. 5.7 inches |
| Resolution | 320 × 240 Pixels |
| Operator Control | Function Keys |
| Number of Function Keys | 20 Keys |
| Communication Interface | MPI / PROFIBUS DP |
| Power Supply | 24 V DC |
| Power Consumption | Approx. 10 W |
| Mounting Method | Panel-mounted |
| Dimensions | Approx. 212 × 156 × 55 mm |
| Weight | Approx. 1.0 kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Key Features
The 6DD1670-0AF0 delivers clear visualization and direct control capabilities for industrial machines and automation systems. Furthermore, the integrated display presents operating parameters, alarms, and process information with excellent readability. Engineers can connect the panel with compatible Siemens controllers through established communication interfaces. Consequently, operators gain faster access to production data while improving machine management efficiency.
The panel measures approximately 212 × 156 × 55 mm and weighs around 1.0 kg for convenient installation. Additionally, the 5.7-inch LCD screen provides a 320 × 240 pixel resolution for practical industrial visualization. The integrated 20 function keys allow direct operation without additional input devices. Therefore, users can perform parameter adjustments and equipment control tasks efficiently during daily production.
Typical Applications
The 6DD1670-0AF0 supports manufacturing equipment, process automation systems, packaging machinery, production lines, and industrial control stations. Meanwhile, engineers use this operator panel for machine monitoring, alarm management, parameter configuration, and operator guidance. Its compact design also suits applications with limited installation space and demanding operating conditions.
Advantages
- Provides reliable industrial machine visualization and control.
- Supports direct operation through integrated function keys.
- Communicates efficiently with Siemens automation systems.
- Compact dimensions simplify panel installation requirements.
- 24 V DC supply matches industrial standards.
- Improves operator efficiency during production processes.
- Reduces the need for external control devices.
Technical Highlights
| Feature | Benefit |
|---|---|
| 5.7-inch LCD Display | Provides clear process information |
| 320 × 240 Resolution | Ensures readable industrial visualization |
| 20 Function Keys | Enables convenient operator interaction |
| MPI / PROFIBUS DP Interface | Supports stable PLC communication |
| Approx. 1.0 kg Weight | Simplifies installation and maintenance |
| 24 V DC Power Supply | Matches common automation systems |
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
