Technical Specifications and Hardware Overview

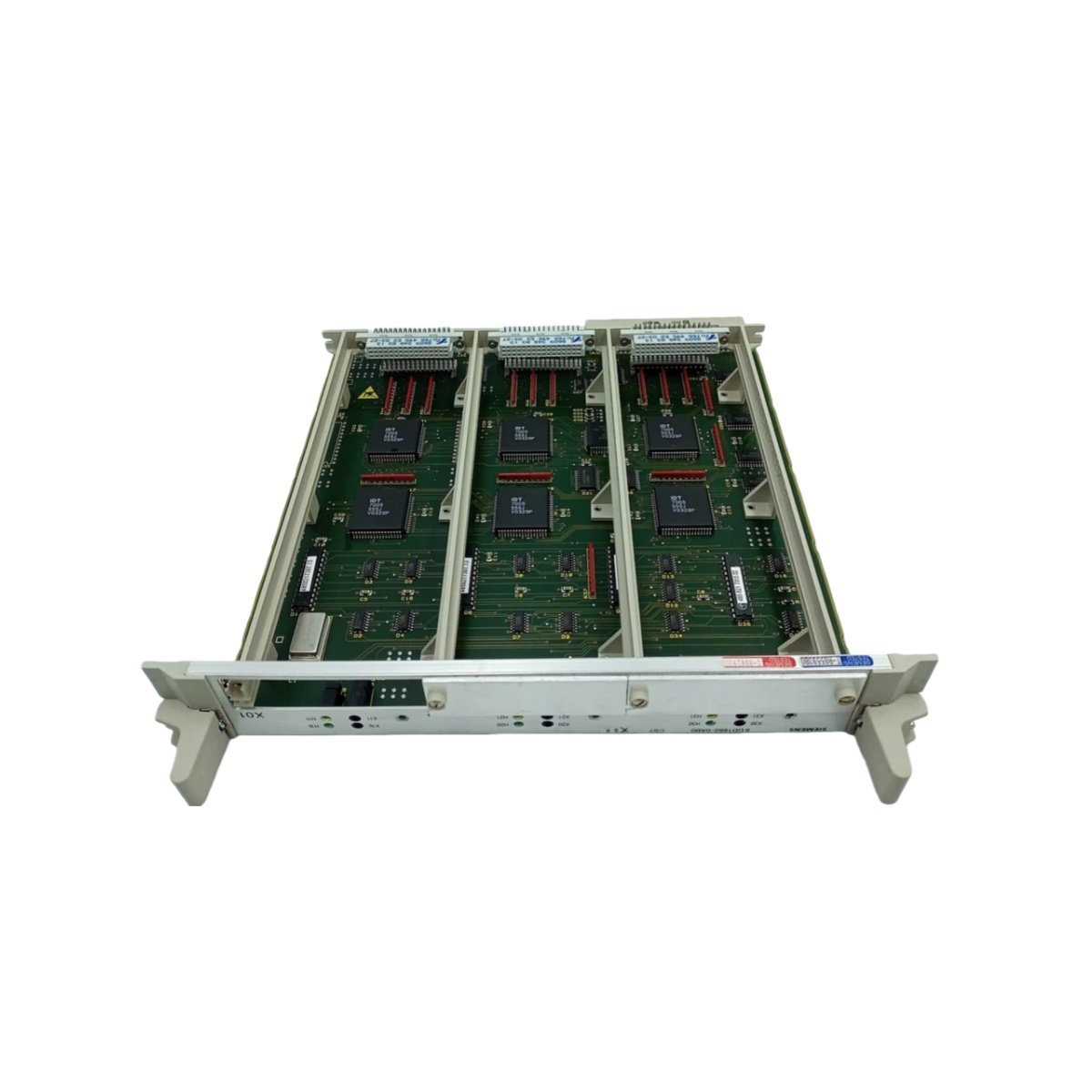

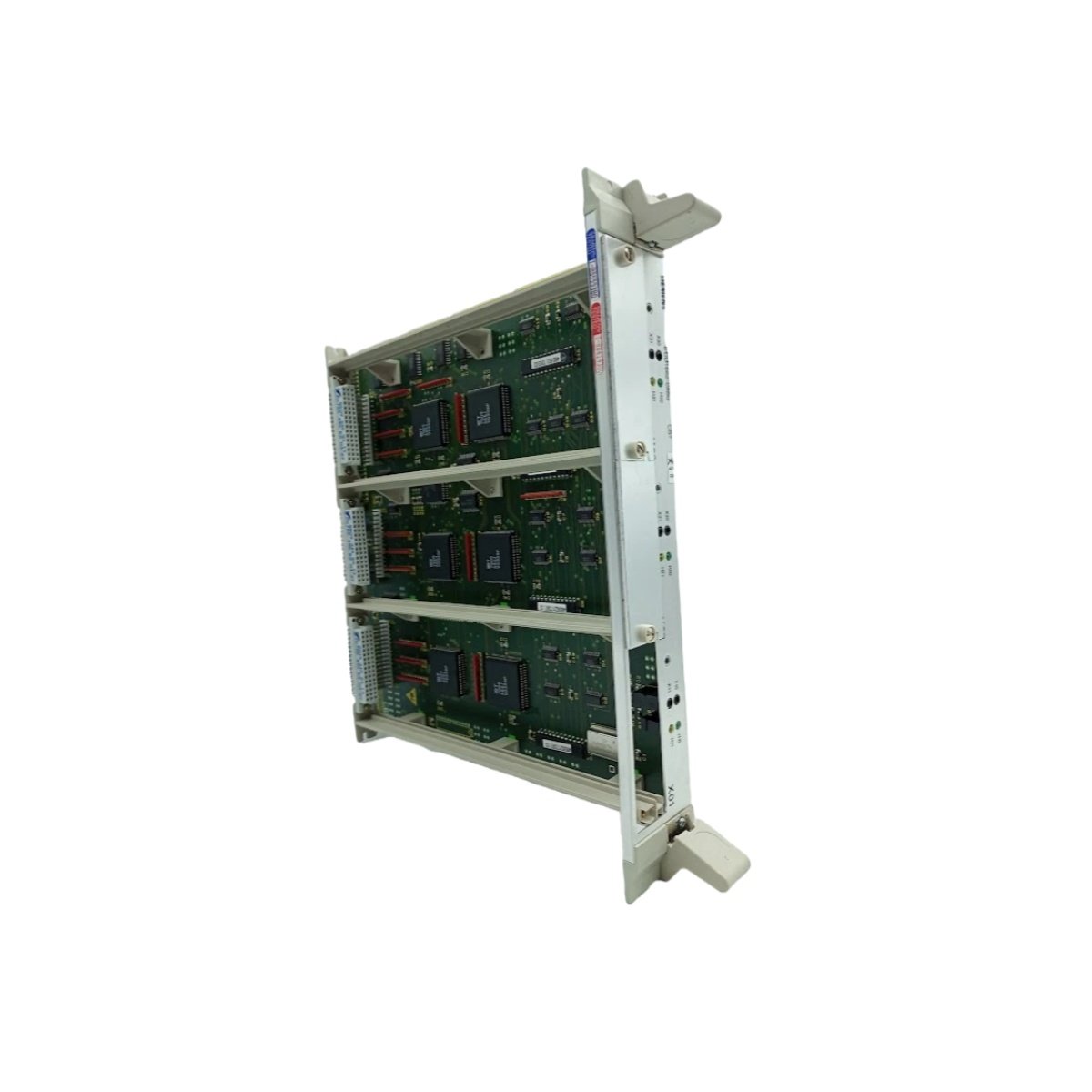

The Siemens 6DD1662-0AB0 operates as a CS7 communications module for the SIMATIC TDC control system. This module measures 233 mm in height, 20 mm in width, and 160 mm in depth for standard rack mounting. It weighs approximately 0.5 kilograms, which facilitates straightforward handling during installation. The unit draws 1.2 A from a 5 V DC backplane power supply. It also requires an external 24 V DC supply for interface circuitry operation. The module features two PROFIBUS DP interfaces for redundant network connectivity.

It provides one RS-232 serial port for local diagnostic and configuration access. The unit contains 4 MB of flash memory for firmware and communication protocol storage. It includes 2 MB of RAM for message buffering and data exchange operations. The module supports a maximum transmission rate of 12 Mbps on each PROFIBUS port. It handles up to 128 connected devices across both network segments. The operating temperature range spans 0°C to 60°C for typical industrial environments. Storage temperatures extend from -40°C to 85°C without causing component damage. Humidity tolerance covers 5% to 95% non-condensing conditions for consistent performance.

Communication and Network Integration

This communications module manages data exchange via dual redundant PROFIBUS DP networks. It provides automatic failover between ports for continuous system availability. The Siemens 6DD1662-0AB0 routes messages between the TDC CPU and field devices. It stores communication parameters in non-volatile memory for reliable power-loss retention. The module supports master and slave operational modes for flexible configurations. It buffers up to 2 MB of data for efficient handling of burst traffic. The unit provides diagnostic LEDs for network status and module health monitoring. It uses a real-time clock for time-stamping communication events.

Installation and Reliability Metrics

The 6DD1662-0AB0 occupies one slot in the SIMATIC TDC rack system. It connects directly to the backplane via a 96-pin connector. The module requires no additional cooling for standard temperature operation. It delivers a mean time between failures of 250,000 hours. The unit carries CE and UL certifications for global deployment. It passes vibration testing at 10 to 55 Hz with 0.15 mm amplitude. The module withstands shock loads up to 5 g for 30 ms duration. It contains approximately 150 components on a multilayer PCB assembly.
