PROFIBUS and SIMOLINK Expansion for FM 458

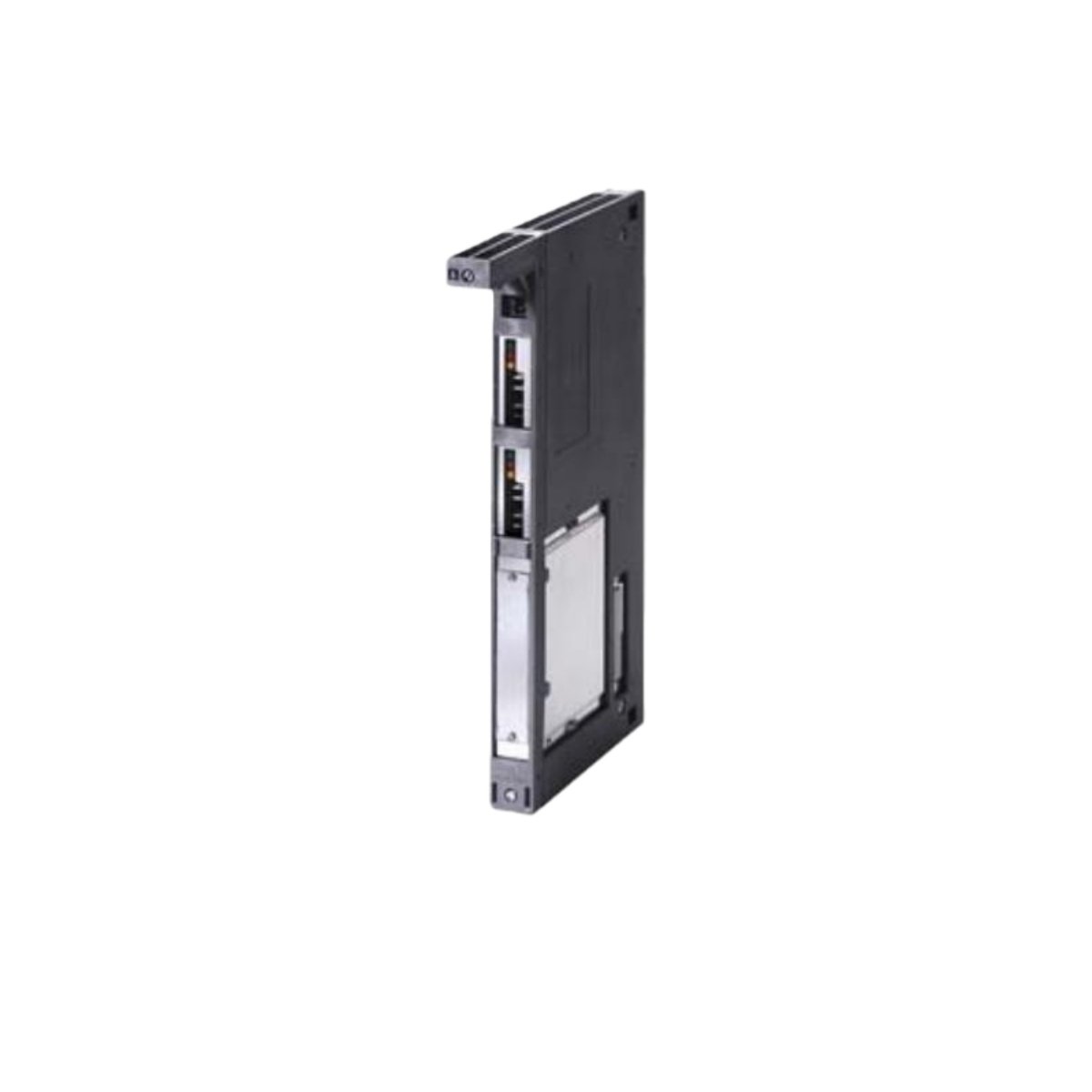

The 6DD1607-0EA1 communication expansion module enhances the FM 458 Application Module within SIMATIC S7-400 systems . This module provides a dedicated DP master interface for PROFIBUS DP networks . It also incorporates an integrated SLB interface for direct SIMOLINK connectivity . These dual interfaces enable efficient high-speed data exchange in demanding automation environments.
Performance and System Integration
The 6DD1607-0EA1 supports PROFIBUS communication at speeds up to 12 Mbit/s for rapid data transfer . It operates on a 24 V DC power supply with typical current consumption of 1.5 A . The module also includes an integrated web server for real-time monitoring and remote access . This design provides seamless integration with existing SIMATIC S7-400 infrastructures.
Physical Specifications
This communication expansion module weighs approximately 0.91 kg and measures 23.1 x 30.6 x 6.5 cm . It requires one slot within the S7-400 rack for straightforward installation . The module also operates reliably from -25°C to +60°C, ensuring durability in harsh industrial settings . It carries CE, UL, and CCC certifications, confirming compliance with international standards .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Line | SIMATIC S7-400 |
| Model | 6DD1607-0EA1 |
| Product Type | Communication Expansion Module (EXM 448-1) |
| Compatibility | FM 458 Application Module |
| Interfaces | 1 x PROFIBUS DP, 1 x SLB (SIMOLINK) |
| Communication Speed | Up to 12 Mbit/s |
| Power Supply | 24 V DC |
| Current Consumption | Typ. 1.5 A |
| Power Loss | Typ. 7.5 W |
| Required Slots | 1 |
| Weight | 0.91 kg |
| Dimensions (W x D x H) | 23.1 x 30.6 x 6.5 cm |
| Operating Temperature | -25°C to +60°C |
| Protection Rating | IP20 |
| Certifications | CE, UL, CCC |
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
