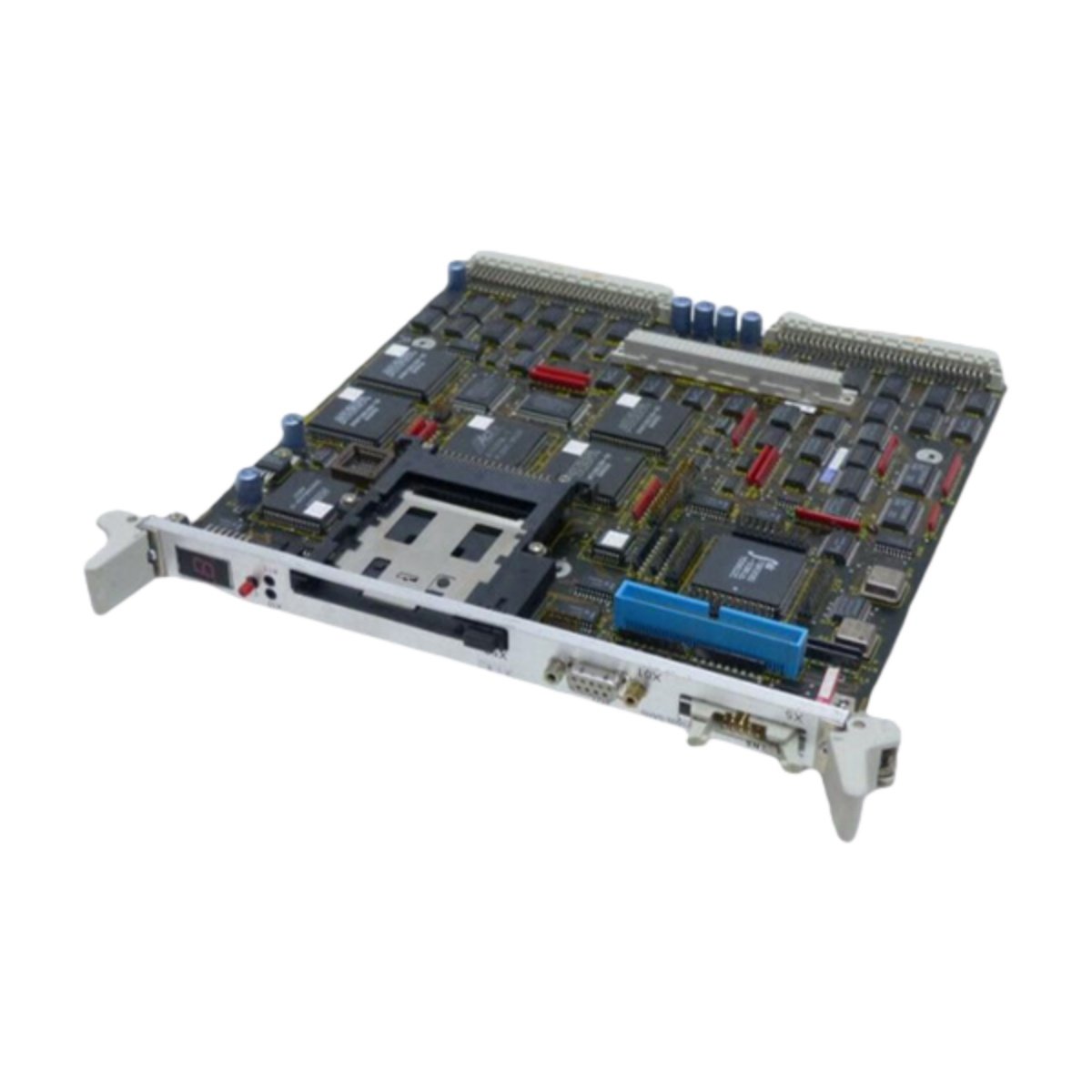

This processor module serves as the central computing unit for SYMADYN D drive systems. It executes real-time control algorithms for multi-axis motion coordination. The Siemens 6DD1600-0AH0 handles complex mathematical operations with exceptional speed and precision. This high-performance module supports demanding industrial drive and automation applications.

Physical Dimensions and Installation Profile

This processor module measures 268 millimeters in width, 45 millimeters in depth, and 175 millimeters in height. The unit weighs approximately 1.20 kilograms for secure rack mounting. It installs directly into the SYMADYN D chassis using a high-density backplane connector. The front panel includes status LEDs and a reset button for operator interface.

Processor Architecture and Computational Power

The Siemens 6DD1600-0AH0 features a 32-bit microcontroller running at 40 megahertz. It provides 512 kilobytes of flash memory for application program storage. The module includes 256 kilobytes of high-speed SRAM for real-time data handling. A dedicated floating-point unit accelerates mathematical computations significantly. This architecture supports complex motion profiles and multi-loop control strategies.

Memory Configuration and Data Retention

This processor module offers 128 kilobytes of battery-backed RAM for retentive data storage. It includes an additional 32 kilobytes of EEPROM for critical parameter retention. The module supports external memory expansion through a dedicated interface. A replaceable lithium battery maintains data for up to five years.

Communication Interfaces and Fieldbus Support

The Siemens 6DD1600-0AH0 features one RS-232 port for programming and diagnostics. It provides an RS-485 interface for multi-drop networking with peripheral devices. The module supports the PROFIBUS DP protocol for field device integration. A dedicated sync interface enables precise coordination between multiple processors.

Signal Processing and I/O Capabilities

This processor module handles up to 128 digital inputs for system monitoring. It provides 64 digital outputs for actuator and alarm control. The module includes 16 analog inputs with 14-bit resolution for process feedback. It also delivers 8 analog outputs for precise control signal generation. Each analog channel includes software-configurable scaling and filtering options.

Component Architecture and Build Quality

The Siemens 6DD1600-0AH0 contains 210 individual components on a multilayer PCB. Key parts include the main CPU, memory chips, and bus interface controllers. The board uses surface-mount technology for high component density. All electronic components meet industrial-grade reliability specifications.

Energy Storage and Power Characteristics

This processor module includes a 4,700-microfarad capacitor bank for power decoupling. This storage filters supply noise and maintains operation during micro-interruptions. The module draws 350 milliamperes from the 5 VDC backplane supply. A voltage supervisor monitors the power rail for undervoltage conditions.

Technical Data Summary

System Integration and Application Scope

This processor module integrates seamlessly with SYMADYN D drive control systems. It handles position control, speed regulation, and torque management tasks. Consequently, the Siemens 6DD1600-0AH0 delivers powerful processing for advanced motion control applications.
