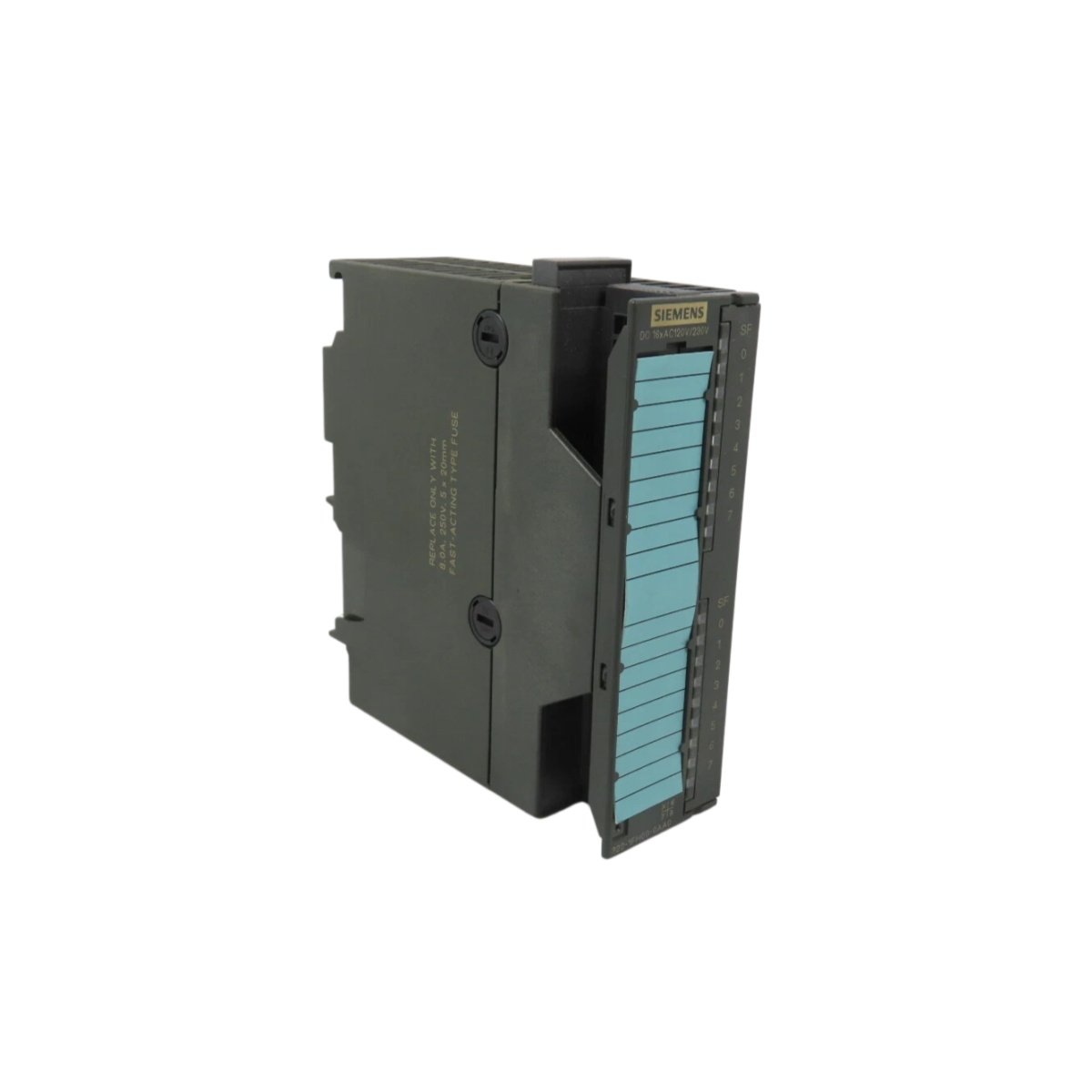

The 6AV4530-1BC00-7AA0 is a PLC module from the Siemens SIMATIC family, engineered to manage control logic in industrial automation systems. This unit combines compact hardware with dependable processing for machine-level tasks. Consequently, system integrators choose it for space-constrained control cabinets.
Technical Specifications at a Glance
The table below presents the key technical parameters of the 6AV4530-1BC00-7AA0. Each figure comes from the manufacturer’s official documentation.
| Parameter | Specification |
|---|---|
| Product type | PLC module |
| Series | SIMATIC |
| Processor | 32-bit RISC CPU |
| Memory capacity | 256 KB RAM, 512 KB Flash |
| Dimensions (W x H x D) | Approx. 160 x 125 x 40 mm |
| Weight | Approx. 0.50 kg |
| Interface | PROFIBUS DP, MPI, RS-485 |
| Power supply | 24 V DC |
| Energy storage | Supercapacitor for clock backup |
| Part count | Main board with interface submodule |
Processing Power and Memory
This module runs a 32-bit RISC processor for fast cycle times. Additionally, it offers 256 KB of RAM and 512 KB of Flash storage. Therefore, it handles complex control programs without performance loss.
Physical Design and Power Management
The unit measures roughly 160 x 125 x 40 mm and weighs about 0.50 kg. Moreover, it accepts a standard 24 V DC industrial supply. A supercapacitor preserves the internal clock during short power interruptions.
Interfaces and System Integration
The 6AV4530-1BC00-7AA0 provides PROFIBUS DP, MPI, and RS-485 ports for flexible networking. Furthermore, these interfaces support communication with drives, HMI panels, and remote I/O. Consequently, it fits smoothly into distributed control architectures.
Details
| Weight | 0.72 kg |
|---|---|
| Dimensions | 325 × 168 × 8 mm |
