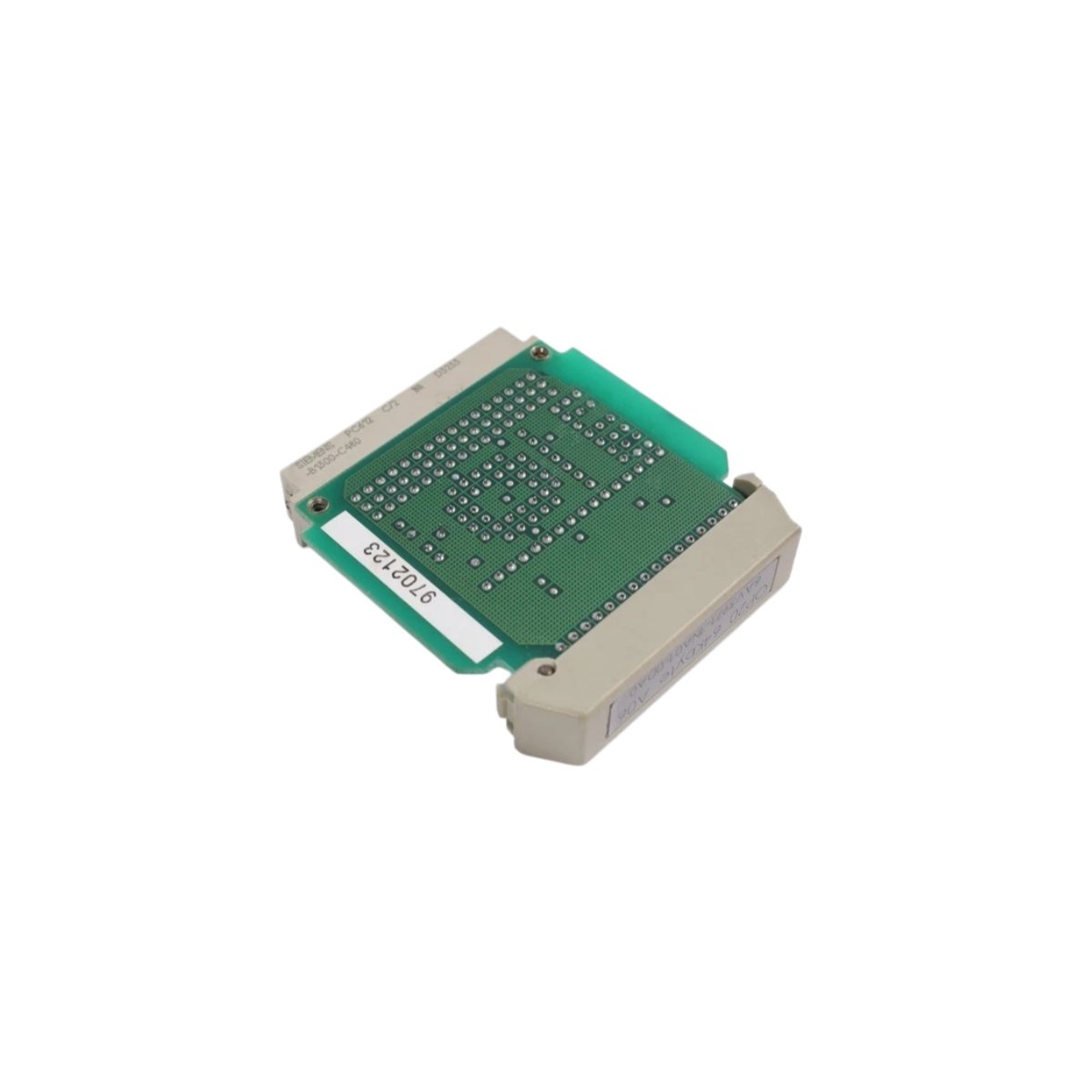

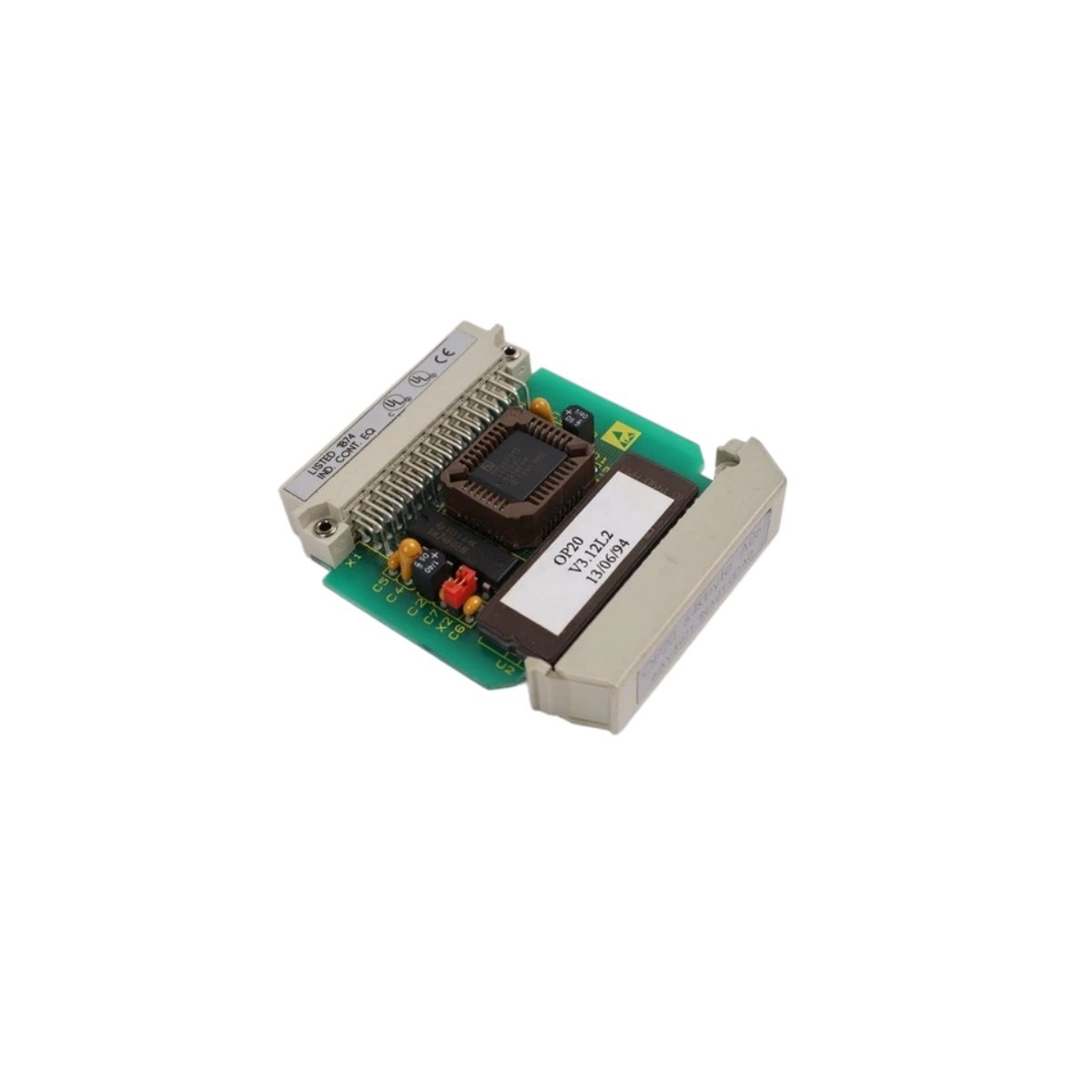

Memory Expansion Module for Siemens Panel Systems

The Siemens 6AV3971-1NA01-0DA0 serves as a memory expansion module for Siemens operator panels and HMI devices. This module provides additional storage capacity for application data, recipes, and system backups. Its design supports enhanced functionality for visualization and operator control tasks.

Storage Capacity and Data Management

This memory module delivers substantial storage for panel applications and project data. A built-in flash memory retains content without requiring a battery backup. The module supports firmware updates and application transfers efficiently. Furthermore, users can store multiple recipes for flexible production changeovers. Consequently, this module enhances the HMI’s capability for data-intensive operations.

Hardware Integration and Physical Specifications

The 6AV3971-1NA01-0DA0 plugs directly into the designated memory slot on compatible panels. Its compact dimensions allow straightforward installation in the device housing. The module draws minimal power from the panel during normal operation. Additionally, a protective cover secures the module against accidental removal. For this reason, operators can rely on stable memory performance.

Compatibility and System Support

This memory module works with selected Siemens OP, TP, and MP series panels. It integrates seamlessly with ProTool and WinCC configuration software. Furthermore, the module supports legacy HMI systems requiring additional memory. This compatibility extends the useful life of existing panel installations. Therefore, this module provides a cost-effective upgrade path for older systems.
