The Siemens 6AV3637-1LL00-0FX1 operator panel delivers reliable human-machine interaction within SIMATIC automation platforms. Engineers install this unit to monitor processes and adjust machine parameters during operation. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

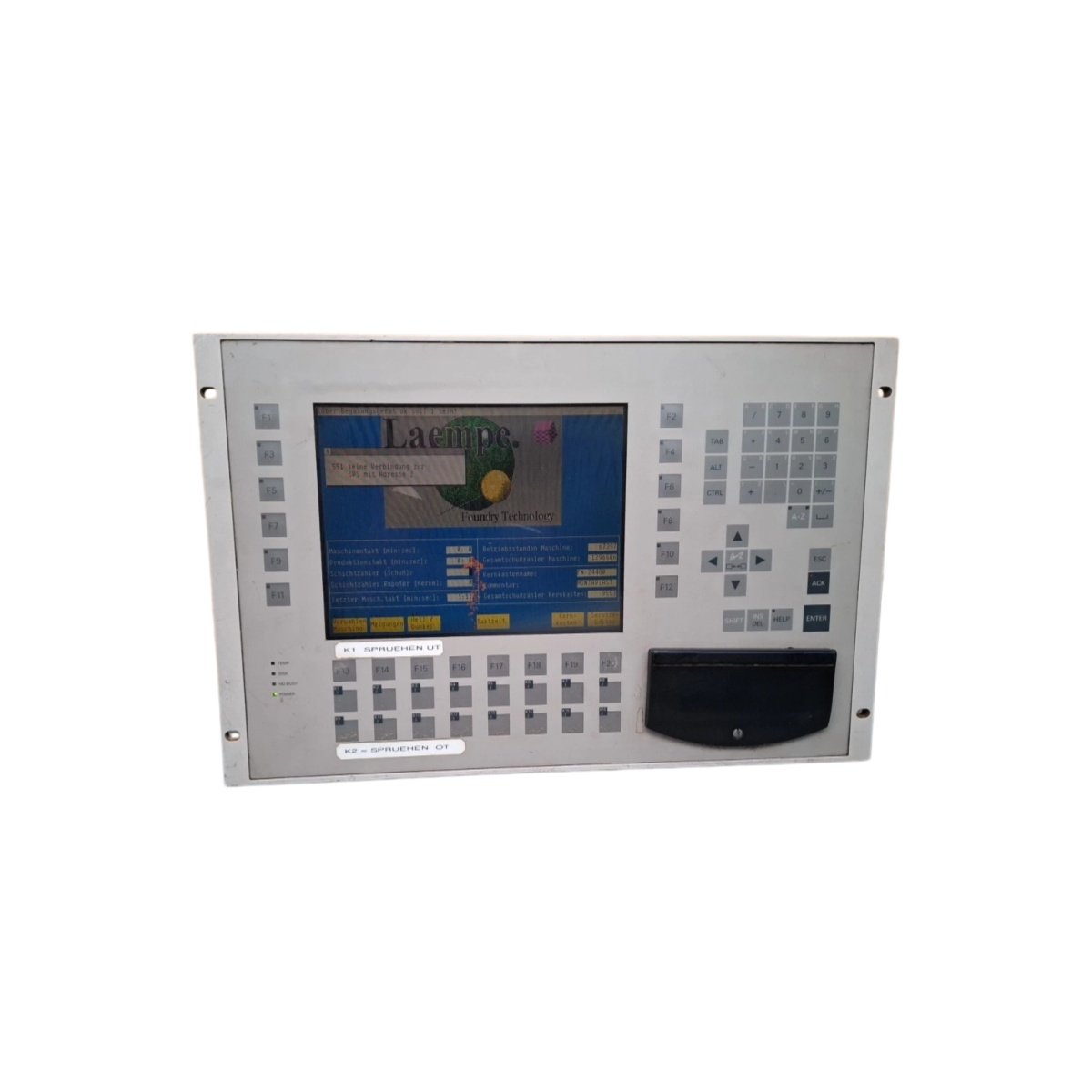

This panel mounts directly into a cabinet front and connects to the controller through a dedicated interface. It measures roughly 300 mm wide, 220 mm high, and 60 mm deep, while it weighs about 1.5 kg. Moreover, the front face carries a display and membrane keypad.

Functional Capabilities and System Integration

The panel displays process values while it sends operator commands to the host controller. Meanwhile, the serial interface carries data between the panel and the PLC. Membrane keys resist dust and moisture, therefore the unit endures harsh plant environments.

Additionally, the design supports menu-driven navigation for quick parameter changes. As a result, operators respond to process deviations without opening the cabinet. Clear display graphics help technicians read status information at a glance. The slim profile also fits tight panel openings.

Installation and Maintenance Guidelines

Technicians should cut the panel opening to the specified dimensions before they mount the unit. Afterward, verifying the serial connection confirms reliable data exchange with the controller. Periodic cleaning of the display and keypad prevents dirt buildup and input faults. Finally, consult Siemens documentation for configuration software and compatible controller models.
