Product Overview
The Siemens 6AV3617-5BB00-0AE0 provides a complete front panel assembly for operator interface terminals. This housing unit includes an integrated membrane keypad for direct machine control inputs. Industrial workstations benefit from its ergonomic layout and durable surface construction.
Technical Specifications
This front housing fits Siemens OP series operator panels and compatible HMI devices. The Siemens 6AV3617-5BB00-0AE0 combines a protective bezel with tactile feedback keys for user interaction. Its sealed design prevents dust and liquid ingress into sensitive internal electronics. The unit’s modular nature simplifies field replacement when keypads wear out from heavy use.
| Parameter | Specification |
|---|---|
| Product Type | Front Housing / Operator Panel Enclosure |
| Series Compatibility | Siemens OP5, OP7, OP15, OP17 operator panels |
| Dimensions (W x H x D) | 195 mm x 120 mm x 45 mm |
| Weight | Approximately 0.35 kg |
| Keypad Type | Membrane keypad with mechanical dome switches |
| Number of Keys | 18 programmable function keys plus numeric pad |
| Key Actuation Force | 250 grams ± 50 grams |
| Key Lifecycle | Minimum 1,000,000 actuations per key |
| Display Cutout | Accommodates 4.5-inch LCD or LED display modules |
| Energy Storage | None (passive mechanical assembly) |
| Bezel Material | Polycarbonate with UV-stable coating |
| Protection Rating | IP65 (front face when properly mounted) |
| Mounting Method | Four screw fixings from rear side |
| Connector Interface | 20-pin ribbon cable for keypad matrix |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
Keypad Functionality

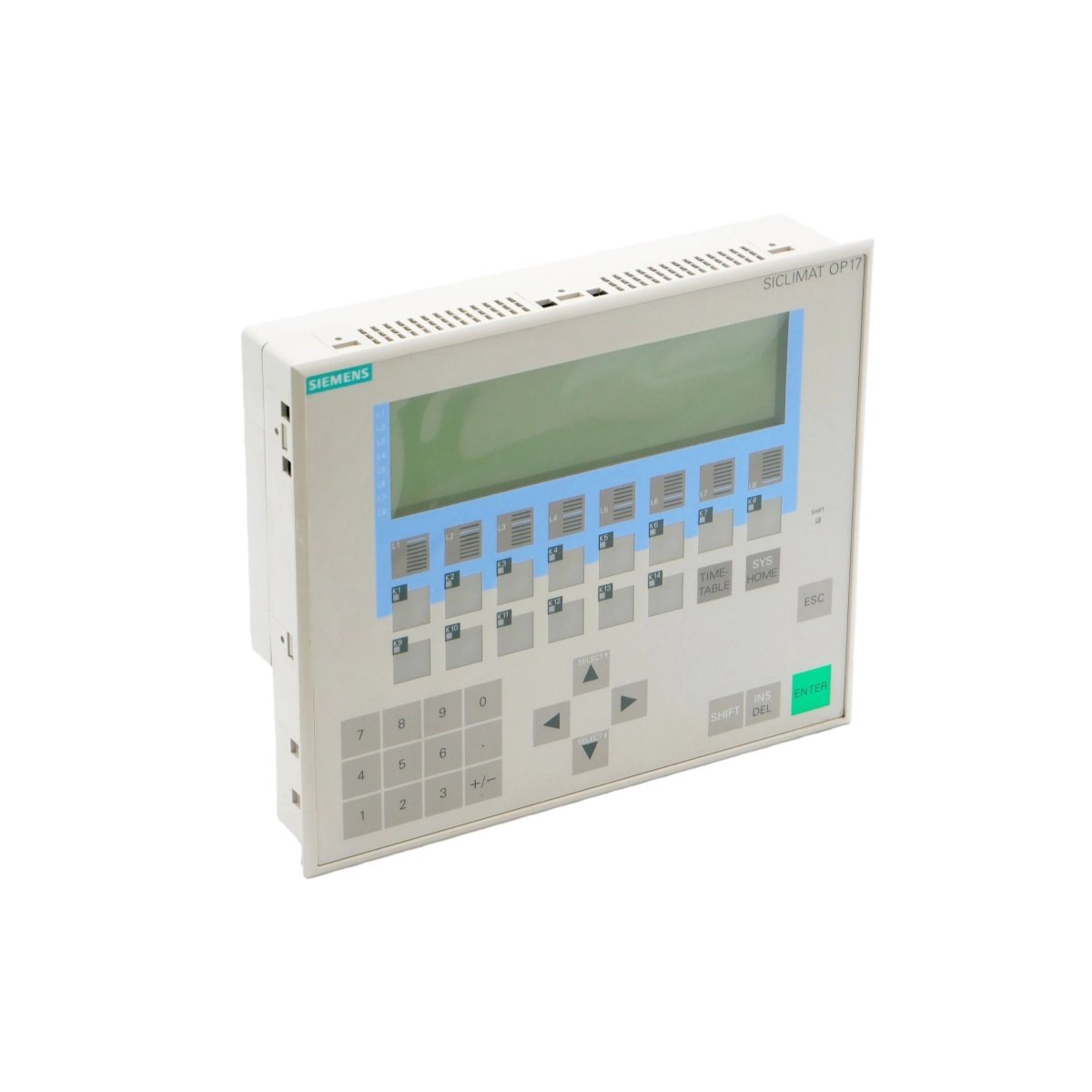

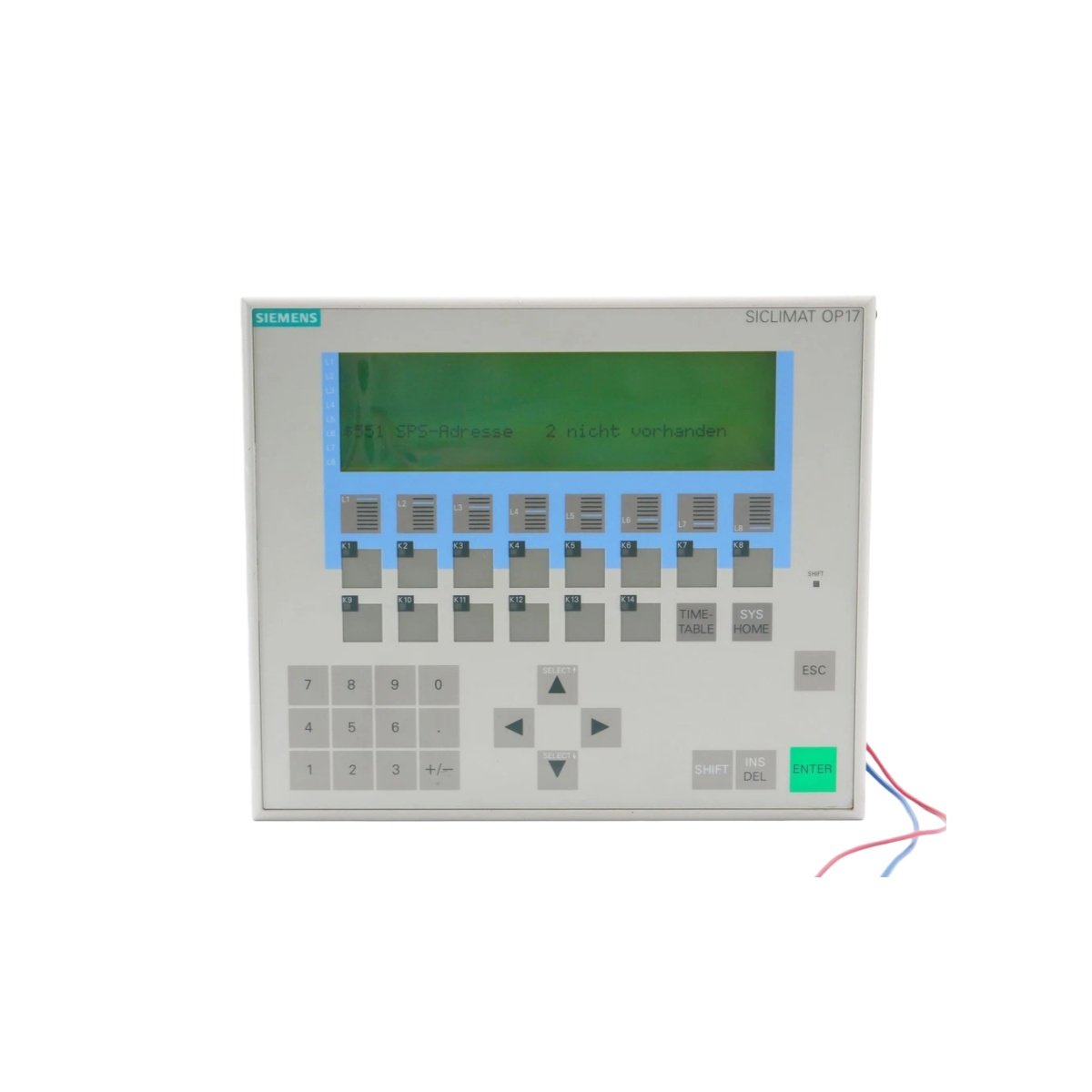

This membrane keypad provides tactile feedback through integrated metal dome switches. The Siemens 6AV3617-5BB00-0AE0 offers clearly labeled function keys for intuitive operator interaction. Each key press registers reliably even when users wear protective gloves. The numeric keypad supports rapid data entry for parameter adjustments and setpoint changes.
Display Integration
The housing includes a dedicated cutout for mounting standard display modules. The Siemens 6AV3617-5BB00-0AE0 accommodates both text-based LCD panels and graphic-capable displays. This compatibility allows operators to view process data directly above the keypad area.
Installation and Maintenance

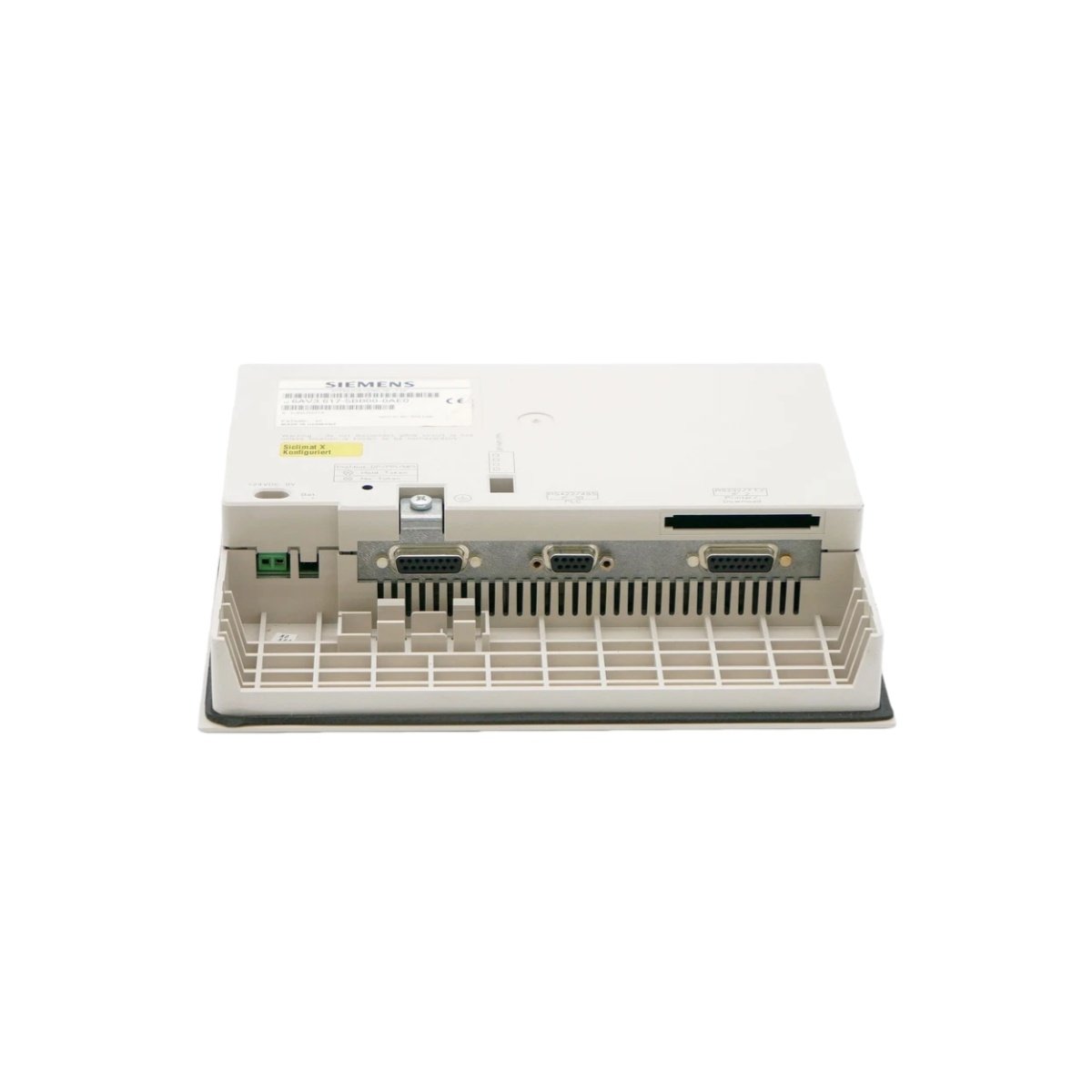

Engineers mount this housing onto the control cabinet door using the included sealing gasket. The Siemens 6AV3617-5BB00-0AE0 connects to the main logic board via a flexible ribbon cable. Its modular design enables quick keypad replacement without removing the entire HMI unit.
Application Scenarios
Machine builders deploy this front housing on CNC machines, packaging lines, and material handling systems. Additionally, it serves well on test rigs and specialized production equipment. The Siemens 6AV3617-5BB00-0AE0 provides a consistent operator interface across multiple machine types.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 195 × 120 × 45 mm |
