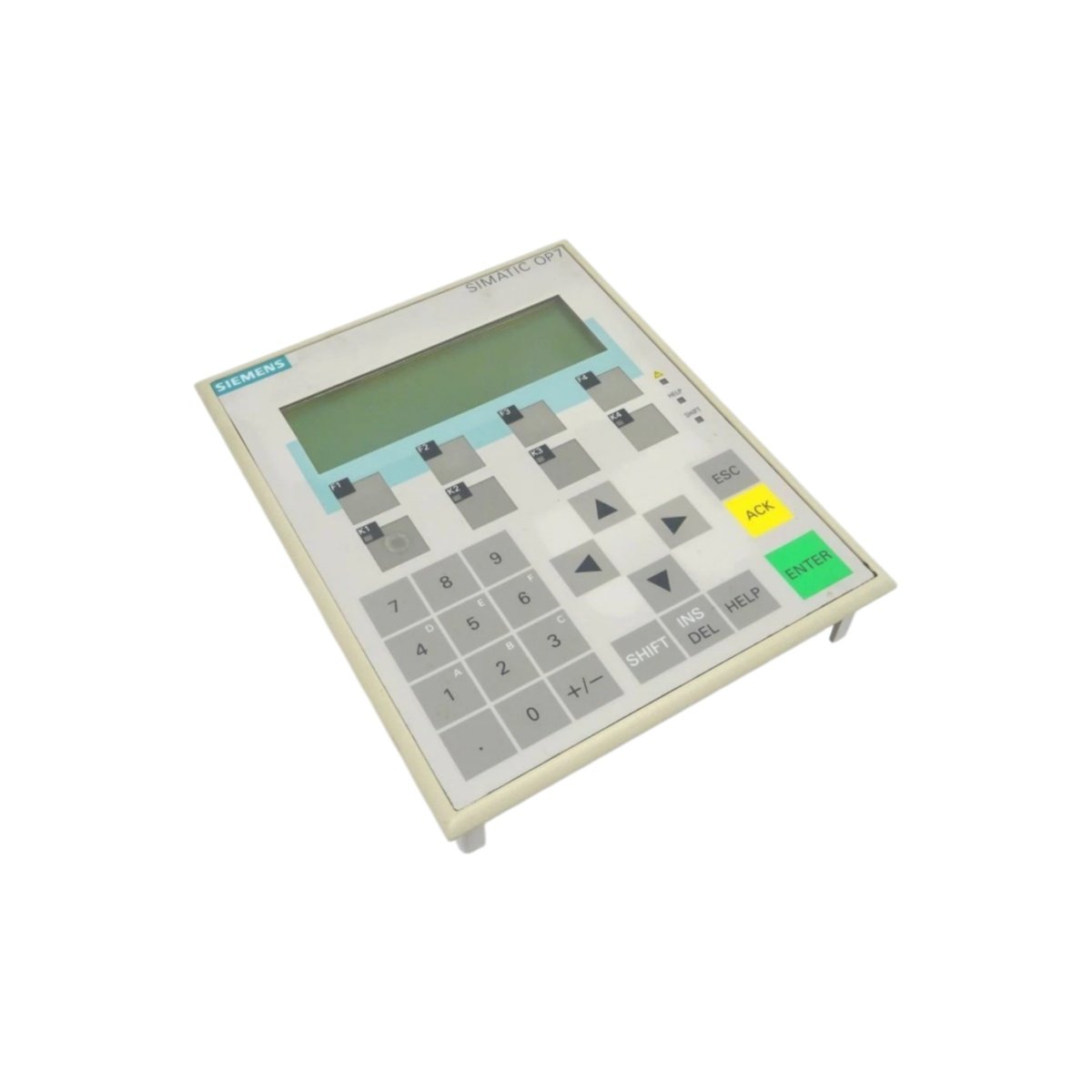

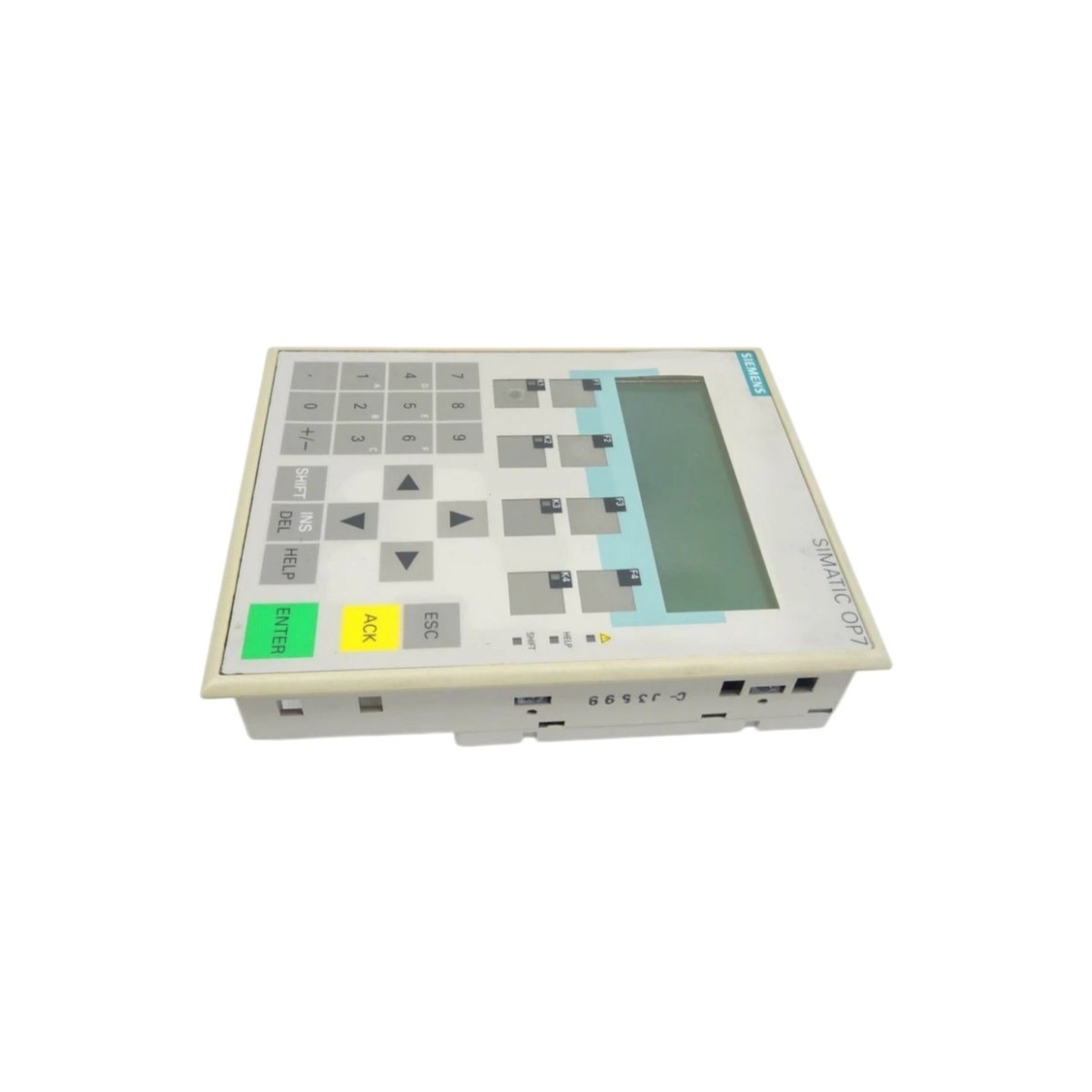

The Siemens 6AV3607-1JC00-0AX0 operator panel displays process data for industrial automation systems. Engineers select this unit for dependable operator interaction across manufacturing environments. Moreover, its compact housing supports straightforward mounting into existing control cabinets.

Interface and Connectivity

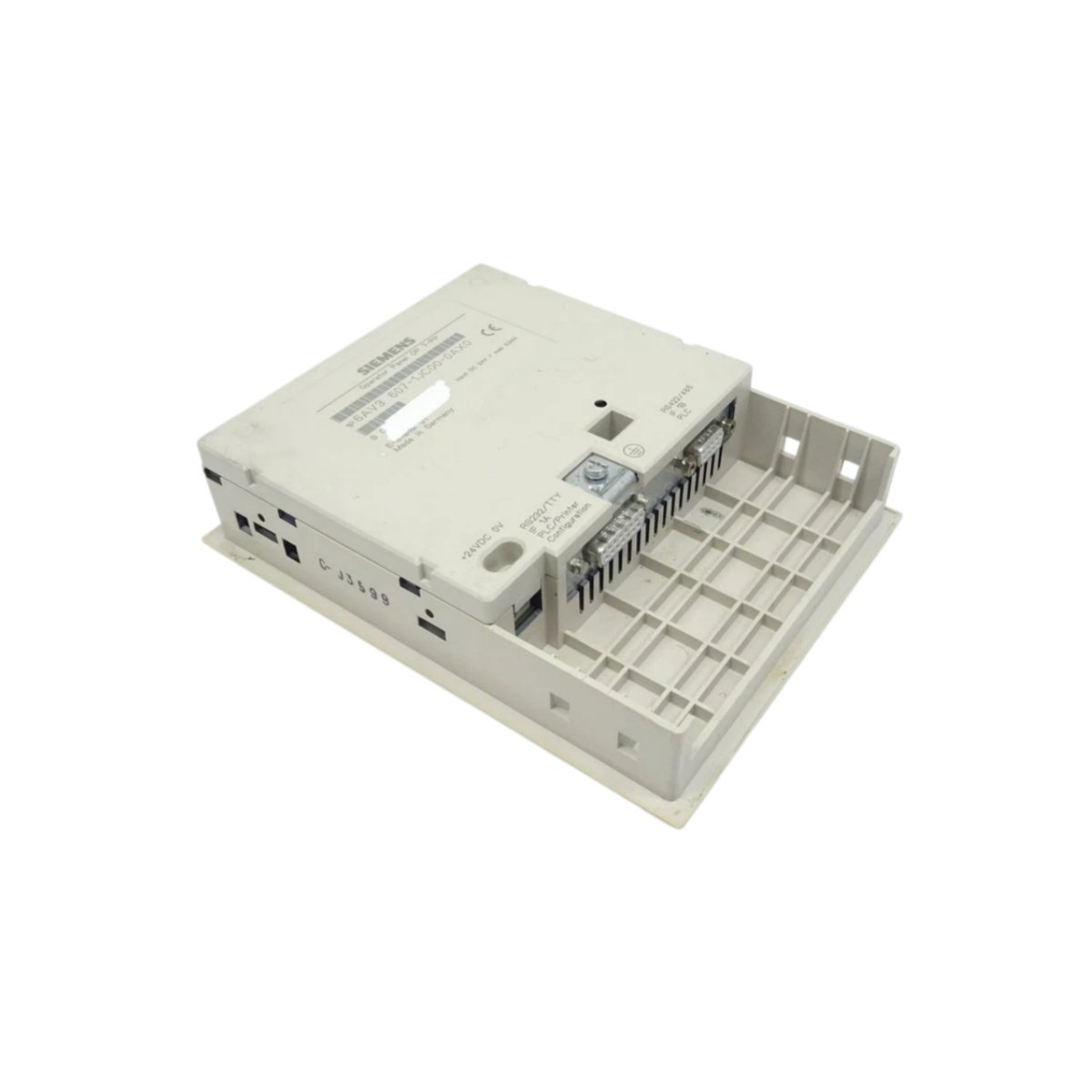

The panel links to controllers through embedded communication ports for fast data exchange. Additionally, it provides serial and MPI interfaces for network integration. These ports support common SIMATIC protocols, therefore covering typical plant connectivity requirements. Function keys allow direct operator commands, which simplifies daily tasks considerably.

Physical Dimensions and Weight

The unit measures 200 mm in width, 150 mm in height, and 50 mm in depth. Furthermore, it weighs approximately 900 grams, which suits panel-front mounting. Consequently, technicians install it easily using standard cutout dimensions.

Component Count and Energy Storage

The 6AV3607-1JC00-0AX0 integrates a display module for clear process visualization. It also contains one backup capacitor rated at 100 µF for clock retention. Therefore, this energy storage element preserves time settings during brief power interruptions. The assembly carries roughly 250 discrete components for dependable operation.

Technical Specifications Table

Why This Panel Suits Industrial Applications

System integrators value the 6AV3607-1JC00-0AX0 for its clear display and simple setup. Meanwhile, the backup capacitor protects clock settings from data loss. As a result, operator efficiency improves while maintenance costs decrease.
