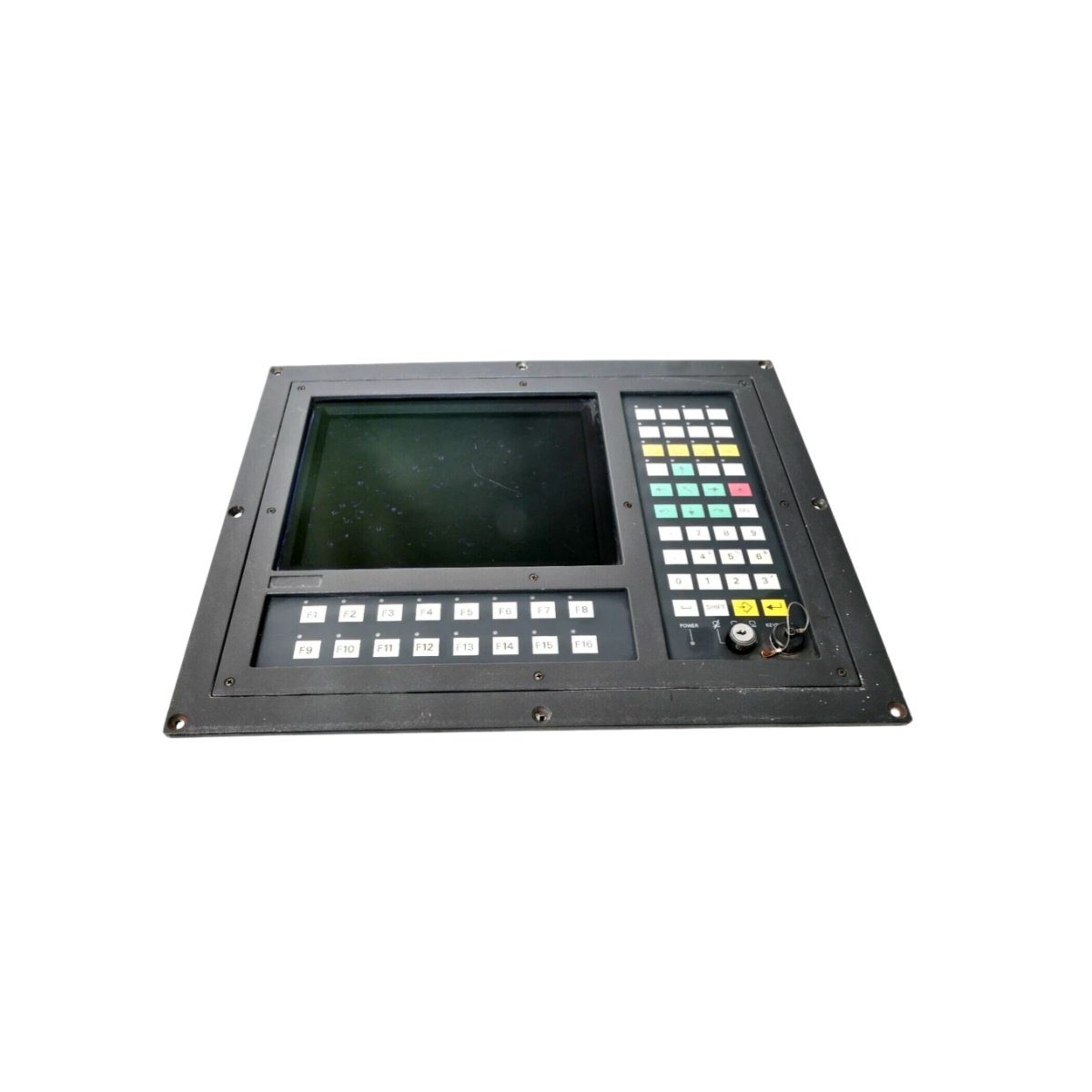

This operator panel provides a user-friendly interface for machine control and monitoring. It displays process data and allows operators to input commands efficiently. The unit integrates seamlessly into SIMATIC S5 and S7 automation systems. Its rugged design suits demanding industrial environments with high reliability.
Display Specifications and Visual Performance
The panel features a high-contrast LCD for clear visibility in various lighting conditions. It supports both text and graphical display modes for flexible applications. The backlit screen ensures readability even in dimly lit areas. A membrane keypad provides tactile feedback for reliable operator input.
| Parameter | Specification |
|---|---|
| Model | 6AV3530-1RS31 |
| Display Type | LCD, 8 lines x 20 characters |
| Display Resolution | 240 x 128 pixels |
| Backlight | LED, 50,000 hours typical |
| Keypad Type | Membrane, 42 keys |
| Function Keys | 24 programmable |
| System Keys | 8 dedicated |
| Communication Ports | 1 x RS-232C, 1 x RS-422/485 |
| Supported Protocols | MPI, PROFIBUS, Modbus |
| User Memory | 128 KB for application data |
| Power Supply | 24 V DC ±10%, 400 mA |
| Power Consumption | 9.6 W maximum |
Physical Dimensions and Panel Mounting
This operator panel measures 215 mm in width, 145 mm in height, and 75 mm in depth. Its robust housing weighs approximately 1.1 kg. You can mount the unit in a standard panel cutout of 198 x 125 mm. The front bezel provides IP65 protection against water and dust ingress.
User Interface and Keypad Configuration
The 6AV3530-1RS31 features a 42-key membrane keypad for operator input. Twenty-four function keys serve programmable control and navigation purposes. Eight dedicated system keys handle display contrast and alarm acknowledgment. The keypad provides audible feedback for confirmed keystrokes.
Communication and Connectivity Options

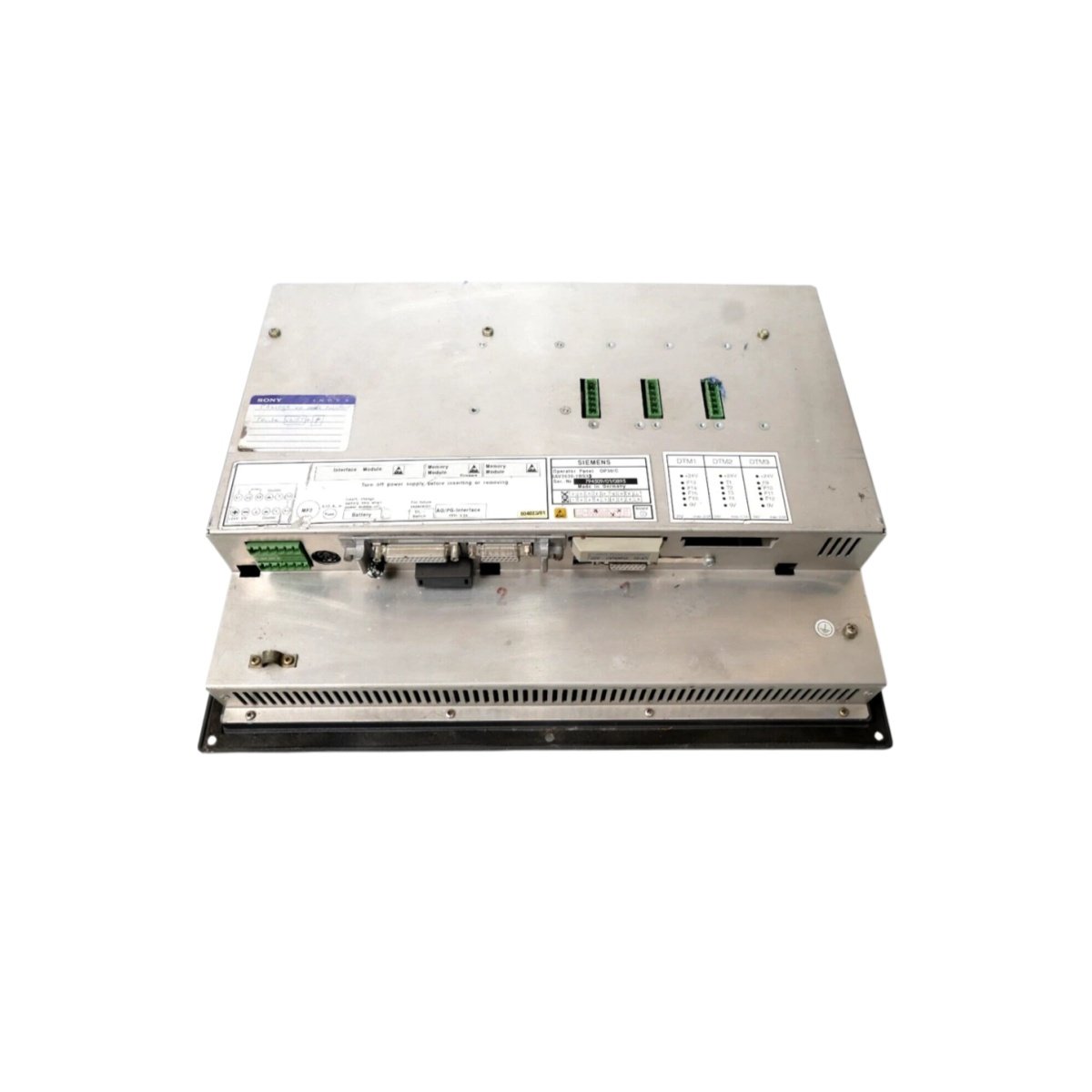

The panel includes both RS-232C and RS-422/485 communication ports. It supports MPI for direct connection to SIMATIC S7 CPUs. The unit also handles PROFIBUS for networked system integration. You can configure communication parameters via the setup menu.
Application Memory and Data Storage
The module stores application projects in its 128 KB user memory. It supports screen navigation and data entry functions efficiently. The unit retains application data during power interruptions. You can transfer projects using standard programming software.
Installation and Environmental Specifications
You should mount the panel in a clean, dry location for optimal performance. The unit operates reliably in temperatures from 0 °C to 50 °C. It withstands humidity levels from 20% to 80%, non-condensing. The front panel resists typical industrial solvents and oils.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 250 × 25 × 210 mm |
