Text-Based Operator Panel for Simple Control Tasks

The Siemens 6AV3515-1EB30 functions as a text-based operator panel for machine-level control and monitoring. This panel provides a clear interface for operators to view process data and control equipment. Its design suits applications requiring straightforward operation without complex graphics.

Display and User Interface Features

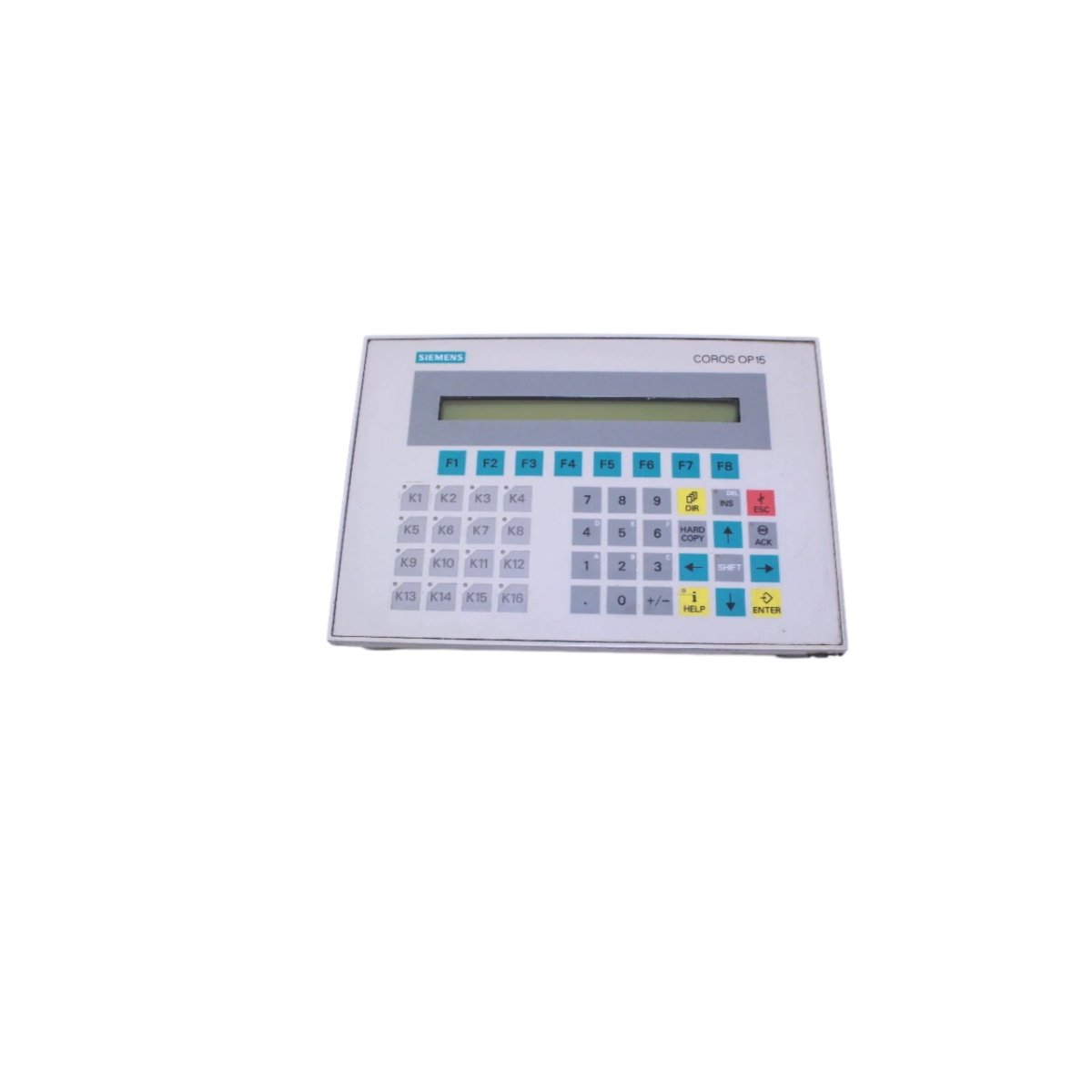

This operator panel features a backlit LCD screen with multiple display lines. A built-in function keypad enables quick navigation and parameter adjustments. The panel supports alphanumeric text for clear operator guidance. Moreover, its intuitive menu structure simplifies configuration and operation. Consequently, this panel reduces training time for new operators.

Communication and Connectivity Options

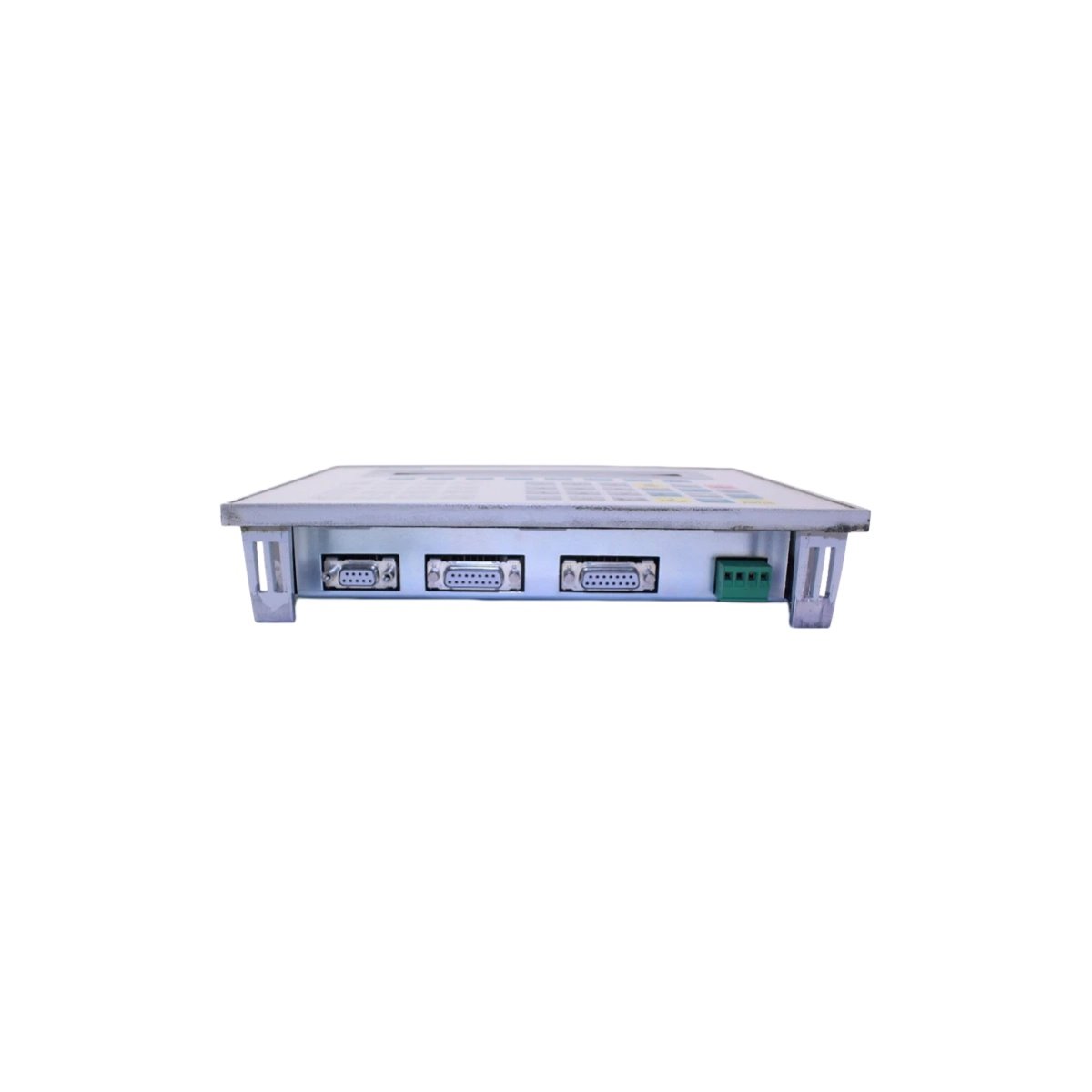

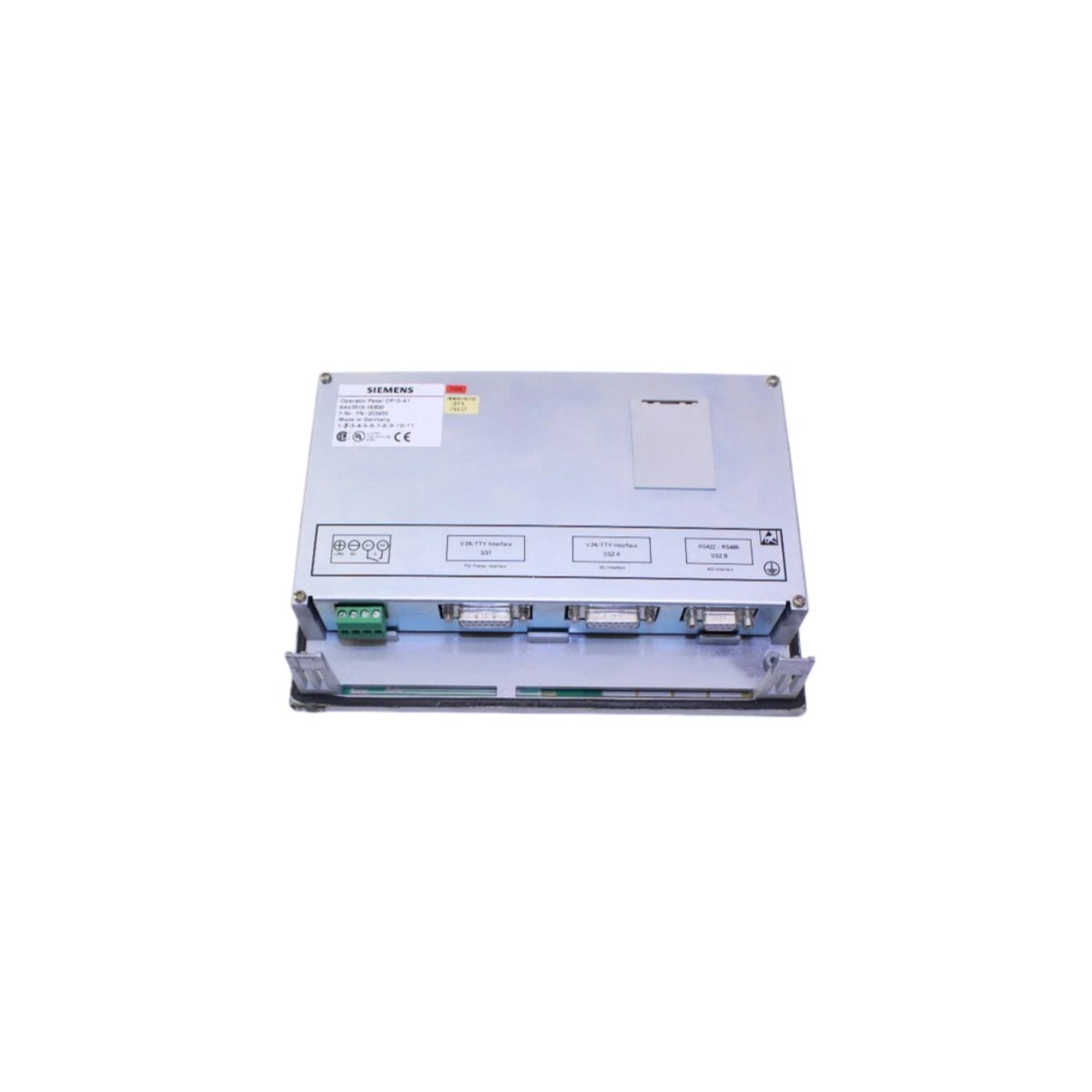

The 6AV3515-1EB30 connects to PLCs through a serial communication interface. A built-in protocol supports Siemens S5 and S7 controller families. The panel also provides a printer port for hardcopy reporting. Additionally, it includes a recipe storage function for production changeovers. For this reason, the panel supports diverse industrial applications.

Environmental Ratings and Physical Specifications

This operator panel operates reliably from 0 °C to 50 °C ambient temperature. Its robust front panel meets IP65 protection standards. The panel’s compact dimensions allow panel-mounted installation. Furthermore, its lightweight design simplifies handling during installation. Consequently, this panel provides a cost-effective operator interface for simple applications.

Technical Specifications

Details
