Product Overview

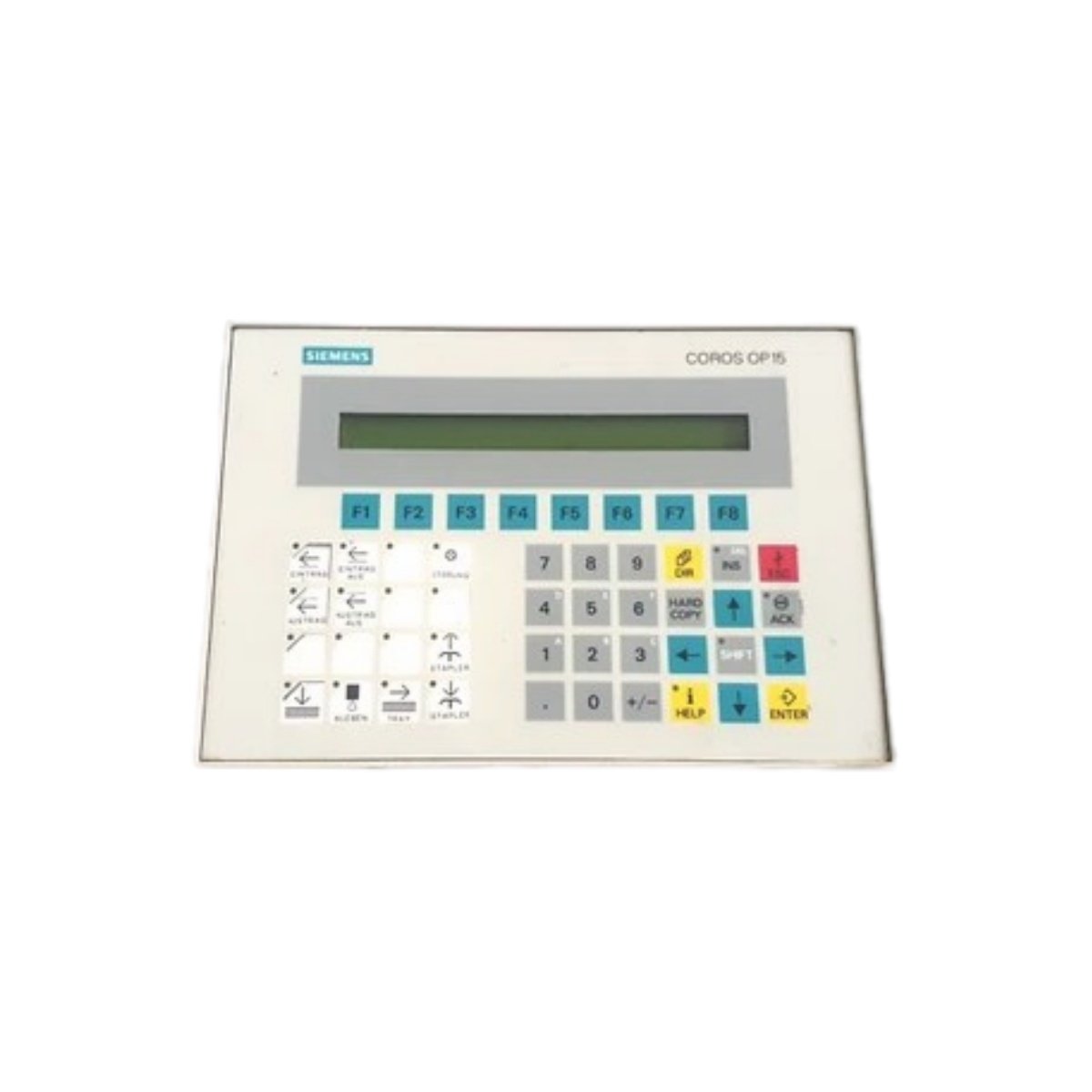

The Siemens 6AV3515-1EB30-1AA0 provides a compact operator interface for controlling industrial machinery and processes. This panel combines a graphical display with tactile function keys for efficient user interaction. Plant operators use this unit for machine startups, parameter adjustments, and real-time monitoring duties.
Technical Specifications
This panel features a high-contrast LCD for clear data presentation in various lighting conditions. The Siemens 6AV3515-1EB30-1AA0 includes an integrated membrane keypad with 24 configurable pushbuttons. Its slim housing fits flush into control cabinet doors or operator consoles. The unit’s front frame provides IP65 protection against water jets and dust ingress.
| Parameter | Specification |
|---|---|
| Product Type | Operator Panel / HMI Terminal |
| Series Compatibility | Siemens OP35 / Simatic HMI |
| Display Type | Backlit LCD (monochrome) |
| Screen Size | 6.5 inches (diagonal) |
| Resolution | 240 x 128 pixels |
| Backlight Lifetime | 75,000 hours typical |
| Number of Keys | 24 programmable membrane keys |
| Key Lifecycle | 2 million actuations minimum |
| Dimensions (W x H x D) | 240 mm x 160 mm x 55 mm |
| Weight | Approximately 0.95 kg |
| Energy Storage | 512 KB flash memory for screen configurations |
| Backup Battery | None (flash retains without power) |
| Protection Rating | IP65 (front face) |
| Interface Ports | 1 x RS-232, 1 x MPI/PPI |
| Supply Voltage | 24 V DC (nominal) |
| Current Consumption | Maximum 0.45 A at 24 V DC |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Display and Visualization
The Siemens 6AV3515-1EB30-1AA0 presents process values, alarm messages, and system statuses effectively. Its high-contrast screen remains readable even under strong ambient light. The display supports both text-based information and simple graphic representations. Engineers configure screen layouts using ProTool or WinCC software tools.
Keypad Functionality
The membrane keypad includes dedicated keys for numeric entry and navigation functions. The Siemens 6AV3515-1EB30-1AA0 allows users to customize key assignments for specific machine operations. Each key provides tactile feedback through metal dome switches beneath the surface. This design enables reliable operation even when users wear industrial gloves.
Configuration and Data Storage
The Siemens 6AV3515-1EB30-1AA0 stores all configuration data in non-volatile flash memory. This eliminates the need for backup batteries and reduces maintenance requirements. Users can download updated screen layouts directly from a PC-based engineering station. The panel’s memory capacity accommodates multiple display pages and application-specific variables.
Application Scenarios
Machine builders integrate this panel on packaging lines, woodworking equipment, and textile machinery. Process industries employ it for batch management and recipe selection tasks. The Siemens 6AV3515-1EB30-1AA0 provides a cost-effective HMI solution for medium-scale automation applications.
Details
| Weight | 0.95 kg |
|---|---|
| Dimensions | 240 × 160 × 55 mm |
