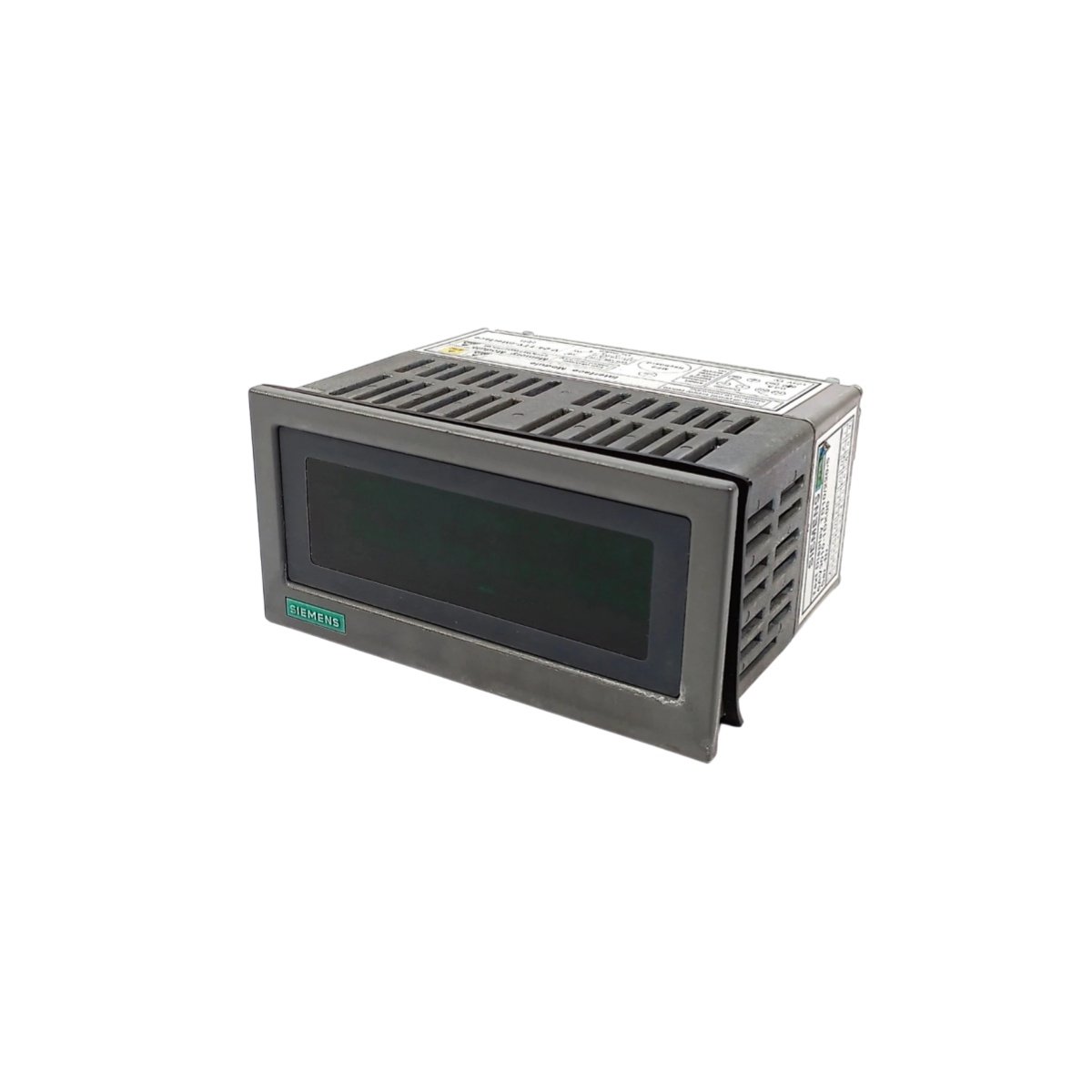

The 6AV3010-1DK00 serves as a compact text display unit within SIMATIC S5 operator interface systems. This panel shows alphanumeric messages, setpoints, and machine status directly to operators. Consequently, plant teams gain clear visual feedback without complex graphics hardware.

Technical Specifications Overview

The 6AV3010-1DK00 combines a shallow mounting depth with rugged front-panel construction. Moreover, its parameter set helps engineers plan cutouts and communication wiring accurately.

Interface and Communication Details

The 6AV3010-1DK00 links to its host through a serial data connection. Therefore, wiring stays simple inside crowded control cabinets. The two-line layout shows 20 characters per row for concise messages. In addition, the unit draws 5 V DC directly from the connected controller.

Physical Characteristics and Mounting

This display measures roughly 200 mm wide and 120 mm high. Furthermore, its 40 mm depth suits shallow panel enclosures. The 6AV3010-1DK00 weighs about 0.6 kg. Consequently, it adds negligible load to swinging door assemblies. Installation uses a standard panel cutout, then the front bezel secures into place.

Operational Role and Maintenance

Operators read the 6AV3010-1DK00 for fault codes, batch counts, and prompt messages. Meanwhile, the sealed front surface resists dust, coolant, and light oils. The display holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies fully on the host controller for power.
