Intuitive Operator Interface for Process Visualization

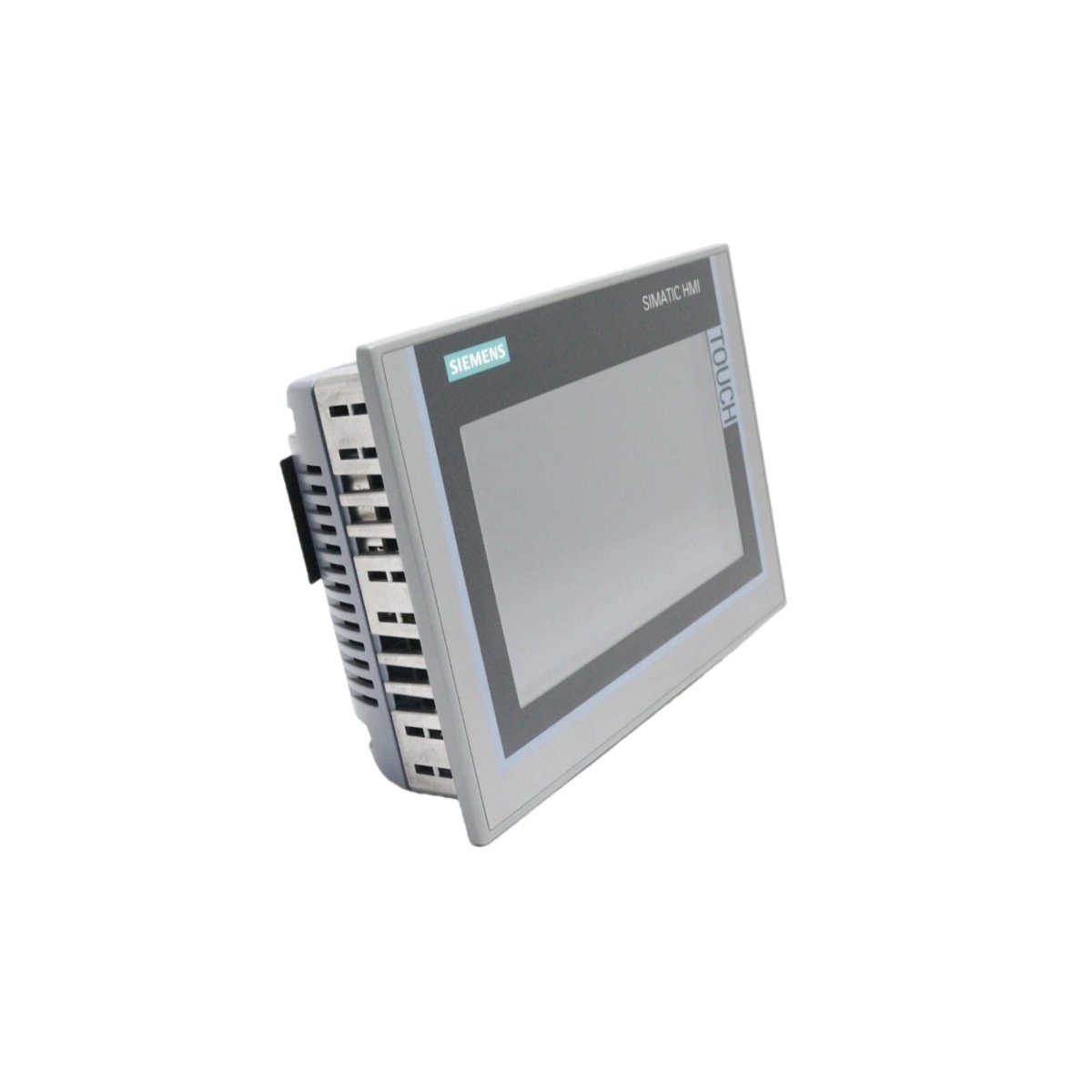

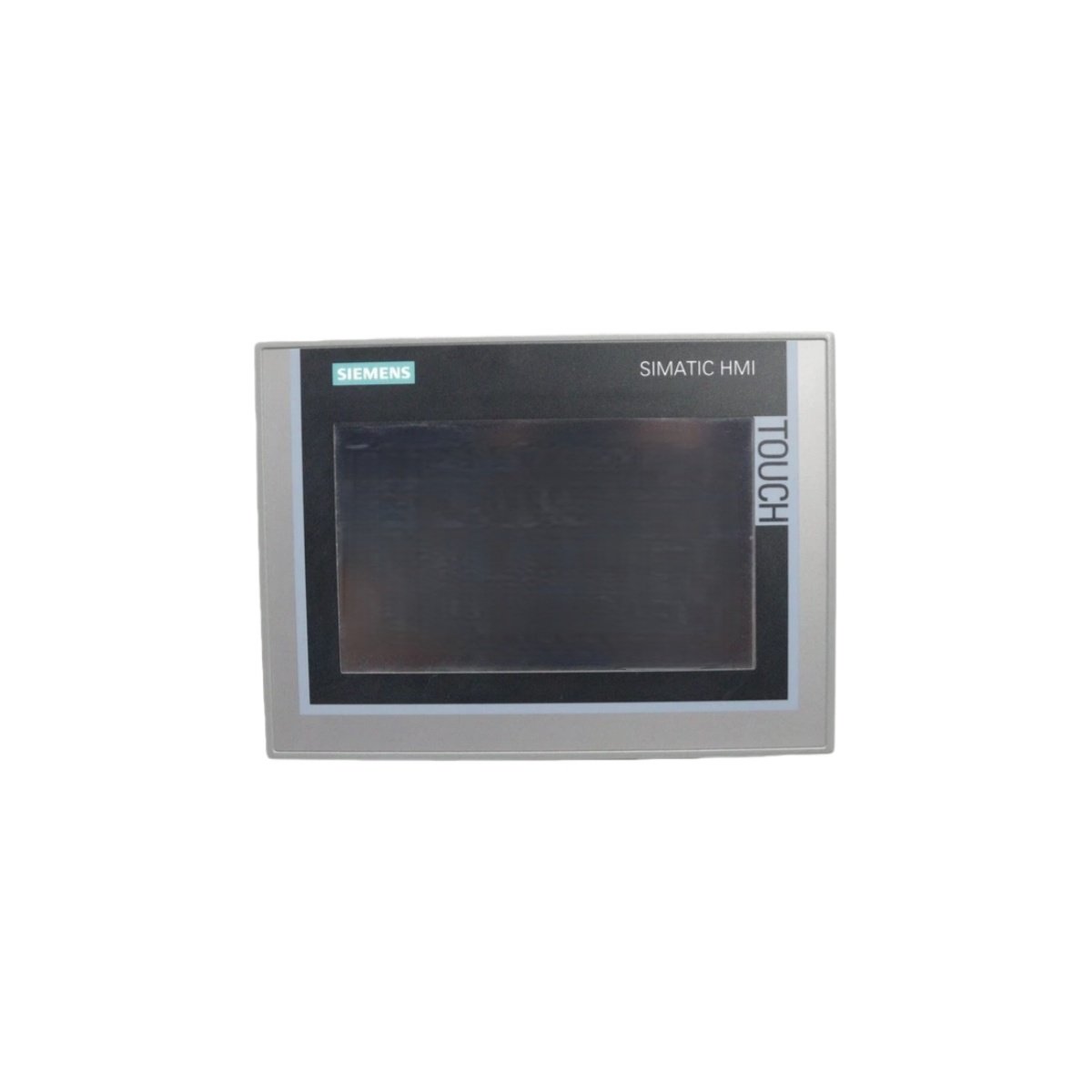

This HMI panel provides a graphical operator interface for monitoring and controlling industrial processes. It displays real-time process data and allows operators to input commands efficiently. The Siemens 6AV2124-0GC01-0AX0 features a 7-inch TFT color display with 800 x 480 pixel resolution. It supports multi-touch gesture control for intuitive navigation and operation. The panel runs on the Siemens WinCC software platform for flexible application design. It connects to controllers via PROFINET or MPI communication protocols.
Physical Dimensions and Mounting Specifications
The unit measures 206 mm in height, 150 mm in width, and 45 mm in depth. It weighs approximately 1.2 kg with all mounting clips and hardware included. The 6AV2124-0GC01-0AX0 mounts flush into a standard control panel cutout. Its flat front design provides a sleek and modern appearance for operator stations. This space-efficient design suits both new installations and retrofit applications.
Interface Connectivity and Communication Capabilities
A rear-mounted 9-pin D-sub connector provides the primary PROFINET interface. The Siemens 6AV2124-0GC01-0AX0 includes an RJ45 Ethernet port for network connectivity. It also features a USB host port for data transfer and peripheral devices. The panel stores application data on integrated 8 MB flash memory. LED indicators display power, communication, and system status conditions clearly.
Internal Architecture and Energy Storage Elements
The PCB contains a 400 MHz ARM processor, memory modules, and display driver circuits. The 6AV2124-0GC01-0AX0 uses a 100 µF capacitor for short-term energy buffering. It features a real-time clock with battery backup for time-stamping events. The panel includes an internal speaker for audible alarms and notifications. A watchdog timer monitors system operation and triggers automatic recovery.
| Parameter | Specification |
|---|---|
| Model | 6AV2124-0GC01-0AX0 |
| Type | SIMATIC HMI Panel |
| Display Size | 7 inches TFT color |
| Resolution | 800 x 480 pixels |
| Touch Technology | Multi-touch gesture control |
| Processor | 400 MHz ARM |
| Software | WinCC (Siemens) |
| Communication | PROFINET, MPI, Ethernet |
| Interfaces | RJ45, USB host, 9-pin D-sub |
| Flash Memory | 8 MB integrated |
| Supply Voltage | 24 V DC ±20% |
| Dimensions (H×W×D) | 206 × 150 × 45 mm |
| Weight | 1.2 kg |
| Protection Class (front) | IP65 |
| Operating Temperature | 0 to +50 °C |
| Storage Temperature | –20 to +60 °C |
| Energy Storage | 100 µF capacitor |
| Additional Features | RTC with battery, audible alarm, watchdog timer |
Recommended Installation Practices
Mount the Siemens 6AV2124-0GC01-0AX0 securely into the panel cutout using the supplied clips. Maintain adequate clearance behind the unit for cable routing and airflow. Connect the panel to the network using a shielded Ethernet cable for reliable communication. Configure the communication parameters using the WinCC software before operation. Test all display functions and touch sensitivity thoroughly after installation. Schedule periodic cleaning of the touchscreen surface for optimal responsiveness.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 206 × 150 × 45 mm |
